Chapter 10 Spanning Tree Protocol
VES-1616F-3x Series User’s Guide
104
10.3 Configure STP
To configure STP, click the Configuration link in the Spanning Tree Protocol screen as
shown next. Refer to
Section 10.1 on page 101 for background information.

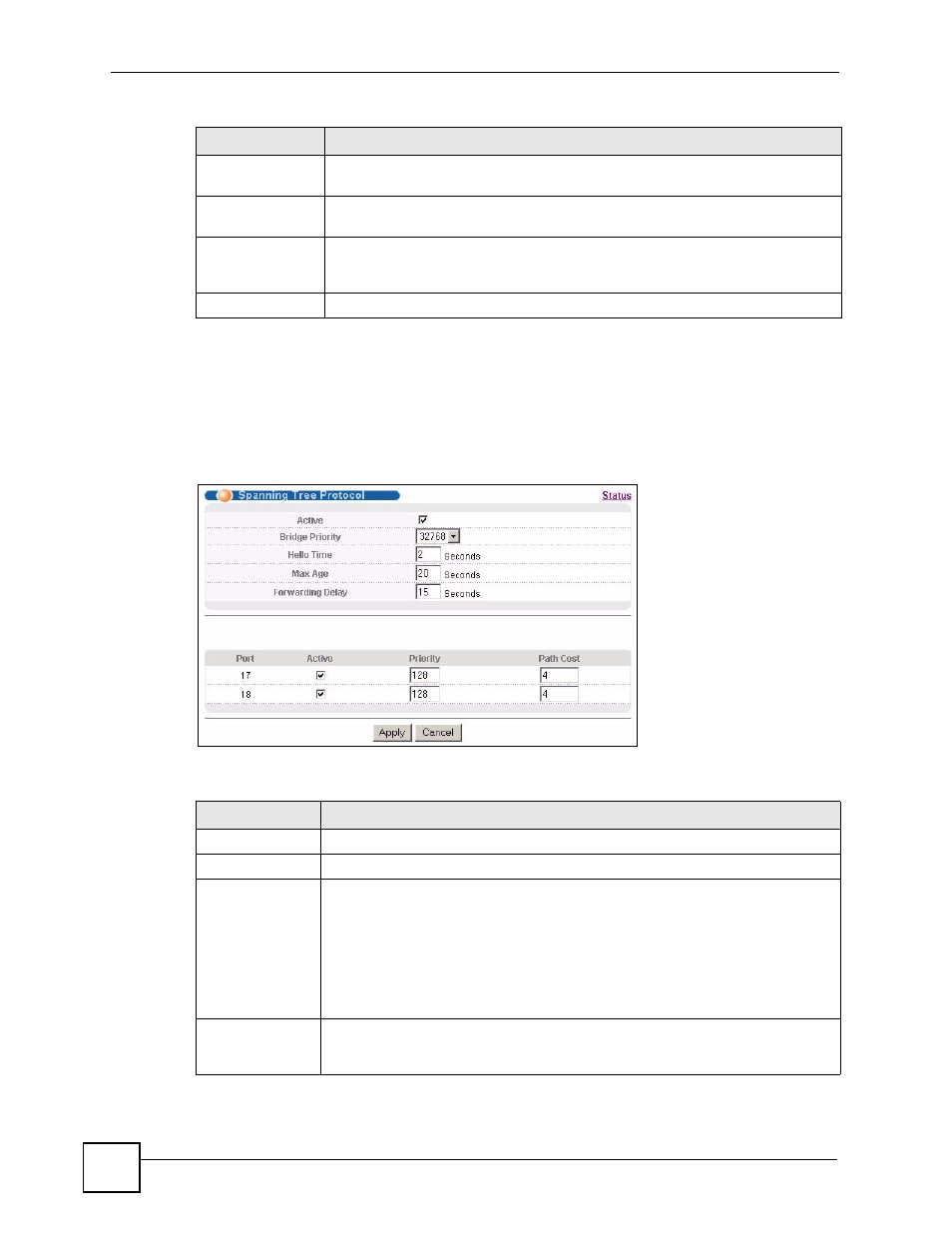

Figure 38 Spanning Tree Protocol > Configuration
The following table describes the labels in this screen.
Topology
Changed Times
This is the number of times the spanning tree has been reconfigured.
Time Since Last
Change
This is the time since the spanning tree was last reconfigured.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may
change the refresh interval by typing a new number in the text box and then
clicking Set Interval.
Stop Click Stop to halt STP statistic polling.
Table 26 Spanning Tree Protocol Status (continued)
LABEL DESCRIPTION
Table 27 Spanning Tree Protocol > Configuration
LABEL DESCRIPTION
Status Click Status to display the Spanning Tree Protocol Status screen.
Active Select this check box to activate STP. Clear this checkbox to disable STP.
Bridge Priority Bridge priority is used in determining the root switch, root port and designated port.
The switch with the highest priority (lowest numeric value) becomes the STP root
switch. If all switches have the same priority, the switch with the lowest MAC
address will then become the root switch. Select a value from the drop-down list
box.
The lower the numeric value you assign, the higher the priority for this bridge.
Bridge Priority determines the root bridge, which in turn determines Hello Time,
Max Age and Forwarding Delay.
Hello Time This is the time interval in seconds between BPDU (Bridge Protocol Data Units)
configuration message generations by the root switch. The allowed range is 1 to
10 seconds.
