Chapter 6 Basic Setting
VES-1616F-3x Series User’s Guide
83

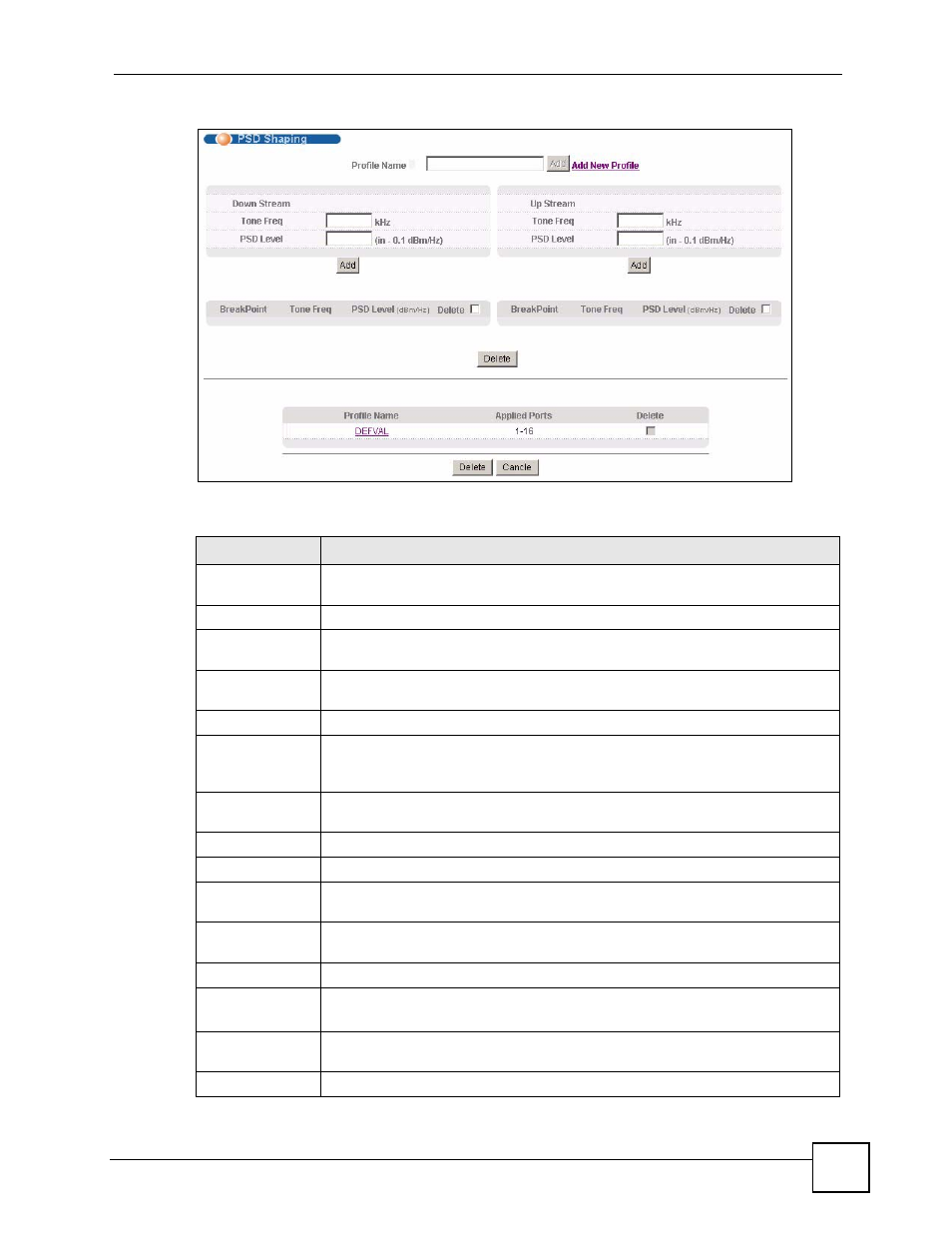

Figure 27 VDSL PSD Profile Setup
The following table describes the labels in this screen.
Table 16 VDSL PSD Profile Setup
LABEL DESCRIPTION
Profile Name Enter a descriptive name for identification purposes. This field is configurable only
when you click the Add New Profile link.
Add New Profile Click this link to add a new profile.
Add Click Add to save the new profile to the Switch. It then displays in the summary
table at the bottom of the screen.
Down Stream /
Up Stream
Tone Freq Enter a downstream or upstream tone frequency between 0 and 30000 (in kHz).
PSD Level (dBm/
Hz)
Specify a downstream or upstream PSD value between 125 and 1400 in units of -
0.1 dBm/Hz. For example, if you want to set the transmit power to -20 dBm/Hz,
enter 200.
Add Click Add to save the new breakpoint to the Switch. It then displays in the
summary table in the center of the screen.
BreakPoint This is the index number of each breakpoint.
Tone Freq This displays the tone frequency for this breakpoint.
PSD Level (dBm/
Hz)
This displays the transmit power for this breakpoint.
Delete Check the breakpoint(s) that you want to remove in the Delete column and then
click the Delete button.
Profile Name This field displays the descriptive name for this profile.
Applied Ports You can apply a profile to a VDSL port in the Port Setup screen.
This field displays the VDSL port number(s) to which this profile is applied.
Delete Check the profile(s) that you want to remove in the Delete column and then click
the Delete button.
Cancel Click Cancel to clear the selected checkboxes in the Delete column.
