Xerox 490/980 Color Continuous Feed Printing System Resource Management
Printer & PC GUI Guide 10-53
ROF Mark
• Print Side: The print side for ROF mark reading is set to the front side.
• Print Back Side: The print side for ROF mark reading is set to the back side.
• Horizontal Position: Not available in this version.
• Vertical Position: Not available in this version.

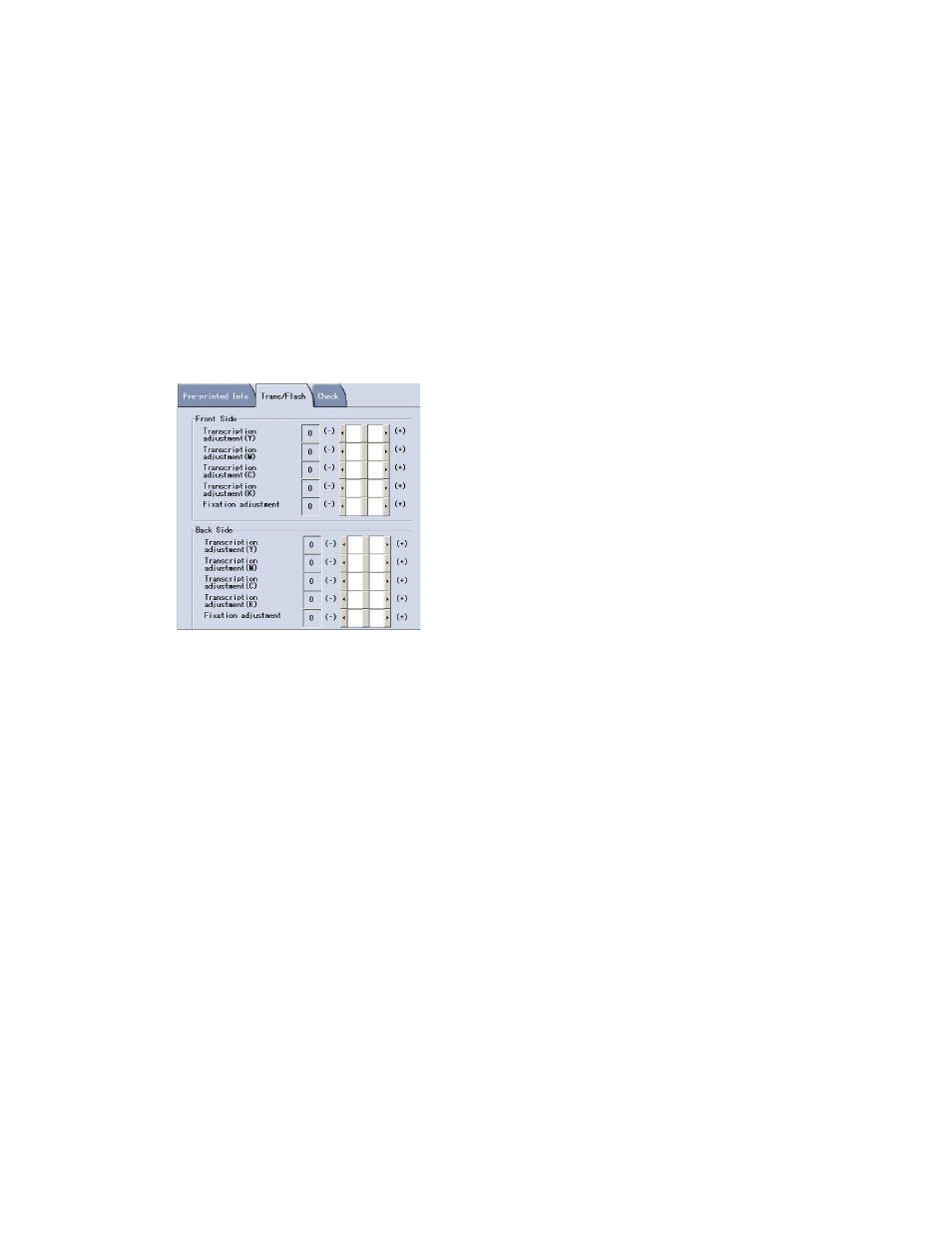

Trans/Flash tab
When newly created, the initial values for transcription adjustment (Y,M,C,K) and fixation
adjustment are 0 respectively.
The adjustment range is -2 to 0 to +2 for transcription adjustment (Y,M,C,K) and -1 to 0 to +1
for fixation adjustment.
• Front side: Performs Trans/Flash adjustments for the top surface.
• Back side: Performs Trans/Flash adjustments for the back surface.
Note
This setting is invalid for the simplex printing system.
