Resource Management Xerox 490/980 Color Continuous Feed Printing System
10-52 Printer & PC GUI Guide
• Paper Name: Select the input area to display the virtual keyboard. Use the virtual keyboard
to input the paper name.

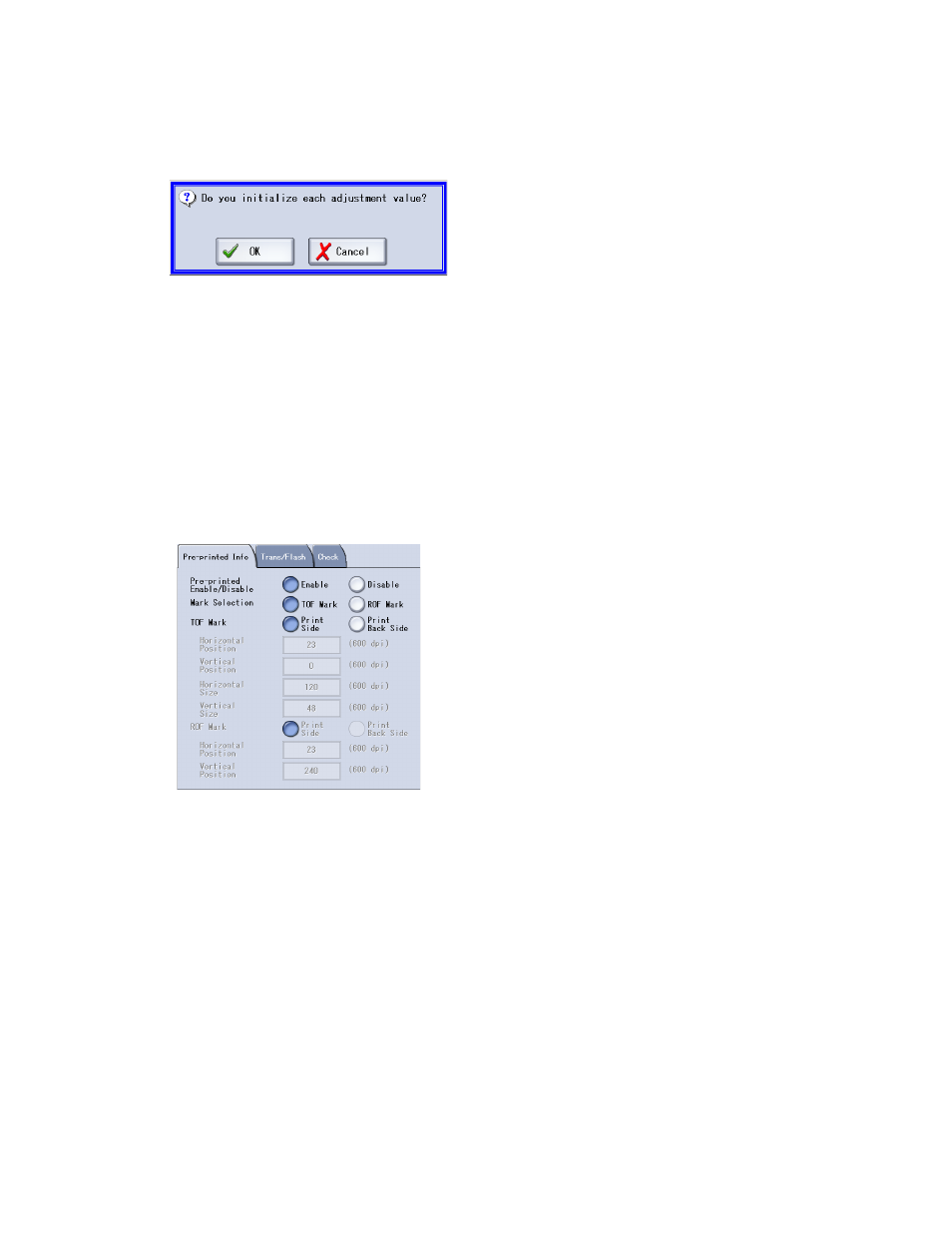

When you change Paper Name, the following screen appears.
• OK: Initializes the adjustment values set under the ***/*** tab.
• Cancel: Retains the adjustment values set under the ***/*** tab.
• g/m2: Select from the pull-down menu.
• Media Type (Front): Select from the pull-down menu.
• Media Type (Back): Select from the pull-down menu.
• Pin Feed Hole: Select from the pull-down menu.
• Paper Length: Select the input area to display the virtual ten-key pad. Select or to increase
or decrease the value. The value increases or decreases in units of 1/6 inch.
• Paper Width: Select the input area to display the virtual ten-key pad. Select or to increase
or decrease the value. The value increases or decreases in units of /10 inch.
Pre-printed Info tab
• Pre-printed Enable/Disable: Enables or disables use of pre-printed paper.
• Select Mark: Either TOF or ROF can be selected.
TOF Mark
• Print Side: The print side for TOF mark reading is set to the front side.
• Print Back Side: The print side for TOF mark reading is set to the back side.
• Horizontal Position: Not available in this version.
• Vertical Position: Not available in this version.
• Horizontal Size: The mark width can be set in a range from 120 to 255.
• Vertical Size: The mark width set in a range from 40 to 255.
