Xerox 490/980 Color Continuous Feed Printing System

Queue Management

Printer & PC GUI Guide

8-13

Output Characteristics

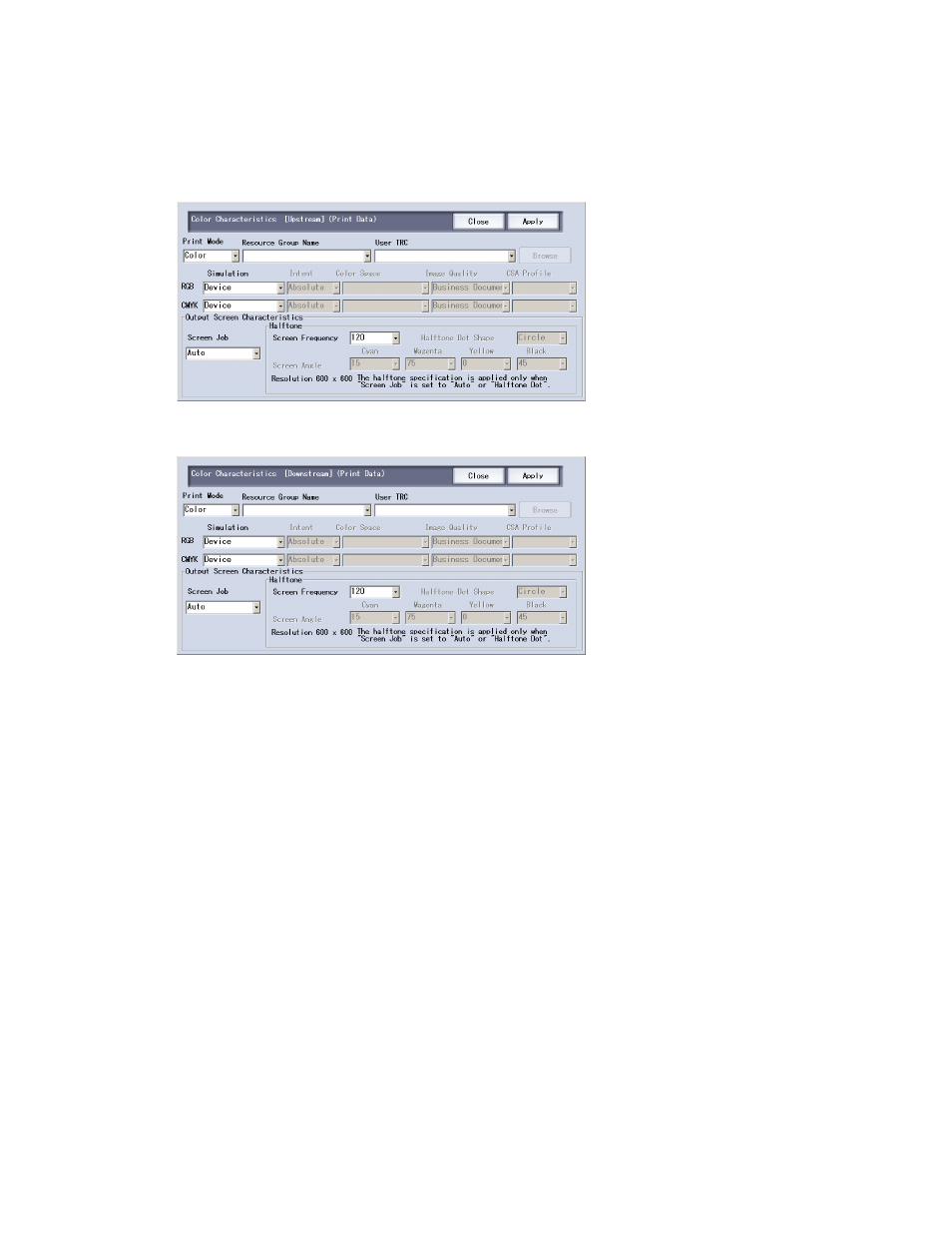

Select [Setting] of Color Characteristics Upstream or Color Characteristics Downstream to
display the screen shown below.

The following is the Color Characteristics Upstream (Print Data) screen:

The settings of Output Screen Characteristics for Print Data and Pre-printed Paper are the same.

•

Print Mode: Select the output color mode (color/monochrome). The default is Color.

If the monochrome mode is specified, luster data in gray scale is created irrelevant to the
printer mode setting.

Resource Group Name

Select the color resource group file name. The default is None.

User TRC

Select the user TRC setting file name. The default is None.
