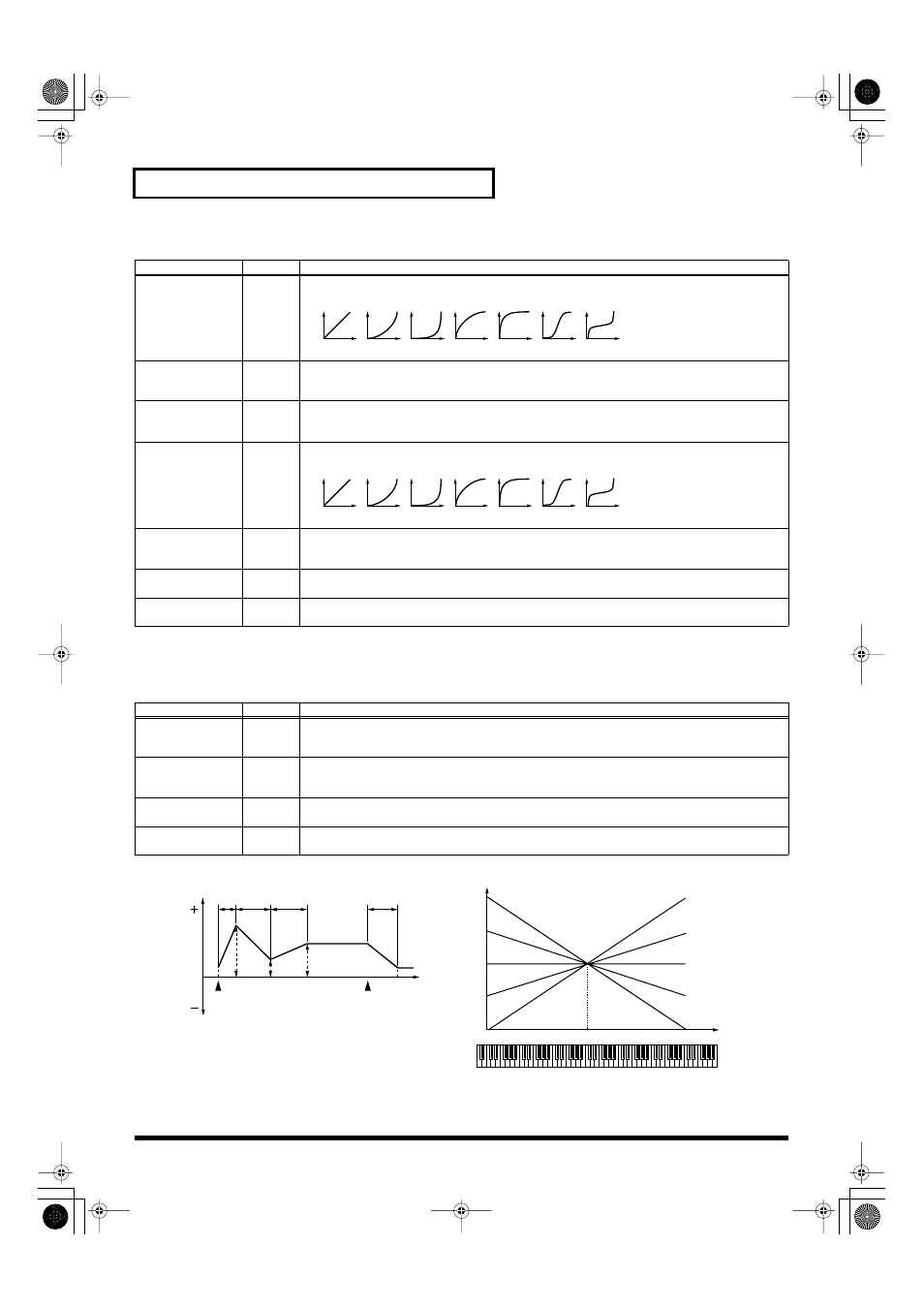

46
Creating a Patch
[F2 (TVF ENV)]
Parameter marked with a “ ★ ” can be controlled using specified MIDI messages
(Matrix Control, p. 49)
Parameter Value Explanation
Cutoff V-Curve FIX, 1–7 Curve that determines how keyboard playing dynamics (velocity) will affect the cutoff frequency
Set this to “FIX” if you don’t want the Cutoff frequency to be affected by the keyboard velocity.
Cutoff V-Sens -63– +63 Use this parameter when changing the cutoff frequency to be applied as a result of changes in playing ve-
locity. If you want strongly played notes to raise the cutoff frequency, set this parameter to positive (+) set-
tings.
Resonance V-Sens -63– +63 This allows keyboard velocity to modify the amount of Resonance.
If you want strongly played notes to have a greater Resonance effect, set this parameter to positive (+)
settings.
F-Env V-Curve FIX, 1–7 Curve that determines how keyboard playing dynamics (velocity) will affect the TVF envelope
Set this to “FIX” if you don’t want the TVF Envelope to be affected by the keyboard velocity.
F-Env V-Sens -63– +63 Specifies how keyboard playing dynamics will affect the depth of the TVF envelope.
Positive (+) settings will cause the TVF envelope to have a greater effect for strongly played notes, and
negative (-) settings will cause the effect to be less.
F-Env T1 V-Sens -63– +63 This allows keyboard dynamics to affect the T1 of the TVF envelope.
If you want T1 to be speeded up for strongly played notes, set this parameter to a positive (+) value.
F-Env T4 V-Sens -63– +63 Use this parameter when you want key release speed to affect the T4 value of the TVF envelope.
If you want T4 to be speeded up for quickly released notes, set this parameter to a positive (+) value.
Parameter Value Explanation
F-Env Depth -63– +63 Depth of the TVF envelope
Higher settings will cause the TVF envelope to produce greater change. Negative (-) settings will invert the
shape of the envelope.
F-Env Time KF
(Time Keyfollow) -100–
+100 Use this setting if you want the TVF envelope times (T2–T4) to be affected by the keyboard location.
Based on the TVF envelope times for the C4 key (center C), positive (+) settings will cause notes higher
than C4 to have increasingly shorter times.
F-Env Time 1–4 ★ 0–127 TVF envelope times (T1–T4)
Higher settings will lengthen the time until the next cutoff frequency level is reached.
F-Env Level 0–4 0–127 TVF envelope levels (L0–L4)
Specify how the cutoff frequency will change at each point, relative to the Cutoff Frequency value.
1 2 3 4 5 6 7
1 2 3 4 5 6 7
T1 T2 T3 T4
L3 L1
L0
L2 L4
Note off
Cutoff
Frequency
TVF Envelope
Time
Note on
C4 C3 C2 C1 C5 C6 C7
0
+50
+100
-50
-100
Key
Time Time Keyfollow
