Installing the Wave Expansion Board
An optional Wave Expansion Board (SRX series; sold separately) can
be installed in the Fantom-Xa.
Wave Expansion Boards store Wave data, patches, and rhythm sets,
and by equipping the Fantom-Xa with these boards, you can greatly
expand your sound palette.
901
• To avoid the risk of damage to internal components that can be
caused by static electricity, please carefully observe the following
whenever you handle the board.
1
• Before you touch the board, always first grasp a metal object
(such as a water pipe), so you are sure that any static
electricity you might have been carrying has been discharged.
2
• When handling the board, grasp it only by its edges. Avoid
touching any of the electronic components or connectors.
5
• Save the bag in which the board was originally shipped, and
put the board back into it whenever you need to store or
transport it.
• Use a Phillips screwdriver that is suitable for the size of the screw
(a number 2 screwdriver). If an unsuitable screwdriver is used,
the head of the screw may be stripped.
• To remove a screw, rotate the screwdriver counter-clockwise. To
tighten the screws, rotate the screwdriver clockwise.
fig.Screw.e
• When installing a Wave Expansion Board, remove only the
specified screws.
• Be careful that the screws you remove do not drop into the
interior of the Fantom-Xa.
• Do not leave the bottom cover removed. After installation of the
Wave Expansion Board is complete, be sure to replace the cover.
• Be careful not to cut your hand on the edge of the cover or the
opening edge while removing the cover.
911
• Do not touch any of the printed circuit pathways or connection
terminals.
912
• Never use excessive force when installing a circuit board. If it
doesn’t fit properly on the first attempt, remove the board and try
again.
913
• When circuit board installation is complete, double-check your
work.
Install the Wave Expansion Board after removing the bottom panel
cover.
1. Before installing the Wave Expansion Board, turn off the
power of the Fantom-Xa and all connected devices, and
disconnect all cables, including the AC adaptor, from the
Fantom-Xa.

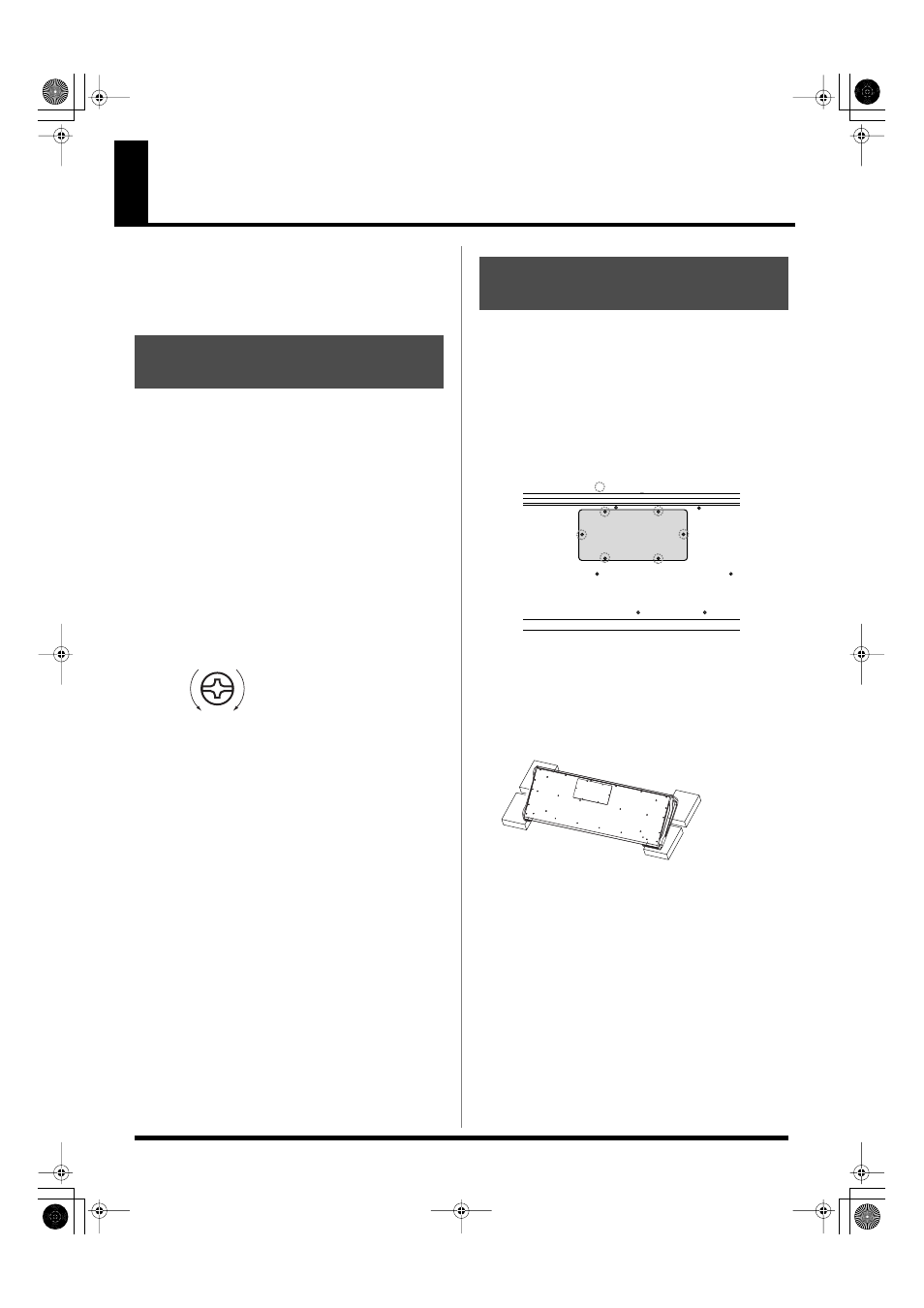

2. From the Fantom-Xa, remove only the screws shown in the
following diagram, and detach the cover.
fig.Exp1.e
928
* When turning the unit upside-down, get a bunch of newspapers or
magazines, and place them under the four corners or at both ends to
prevent damage to the buttons and controls. Also, you should try to
orient the unit so no buttons or controls get damaged.
929
* When turning the unit upside-down, handle with care to avoid
dropping it, or allowing it to fall or tip over.
fig.Exp2
Cautions When Installing a
Wave Expansion Board
tighten loosen
How to Install a Wave
Expansion Board
Screws to be removed
Fantom-Xa : bottom
