213
About V-LINK
1. In the V-LINK screen, press [F3 (CLIP)] or [F4 (ALL)].
* For details on clips/palettes, dissolve time, color difference signals (Cb/Cr), refer to the Edirol DV-7PR manual.
* The Fantom-Xa does not support the Edirol DV-7PR’s dual stream mode.

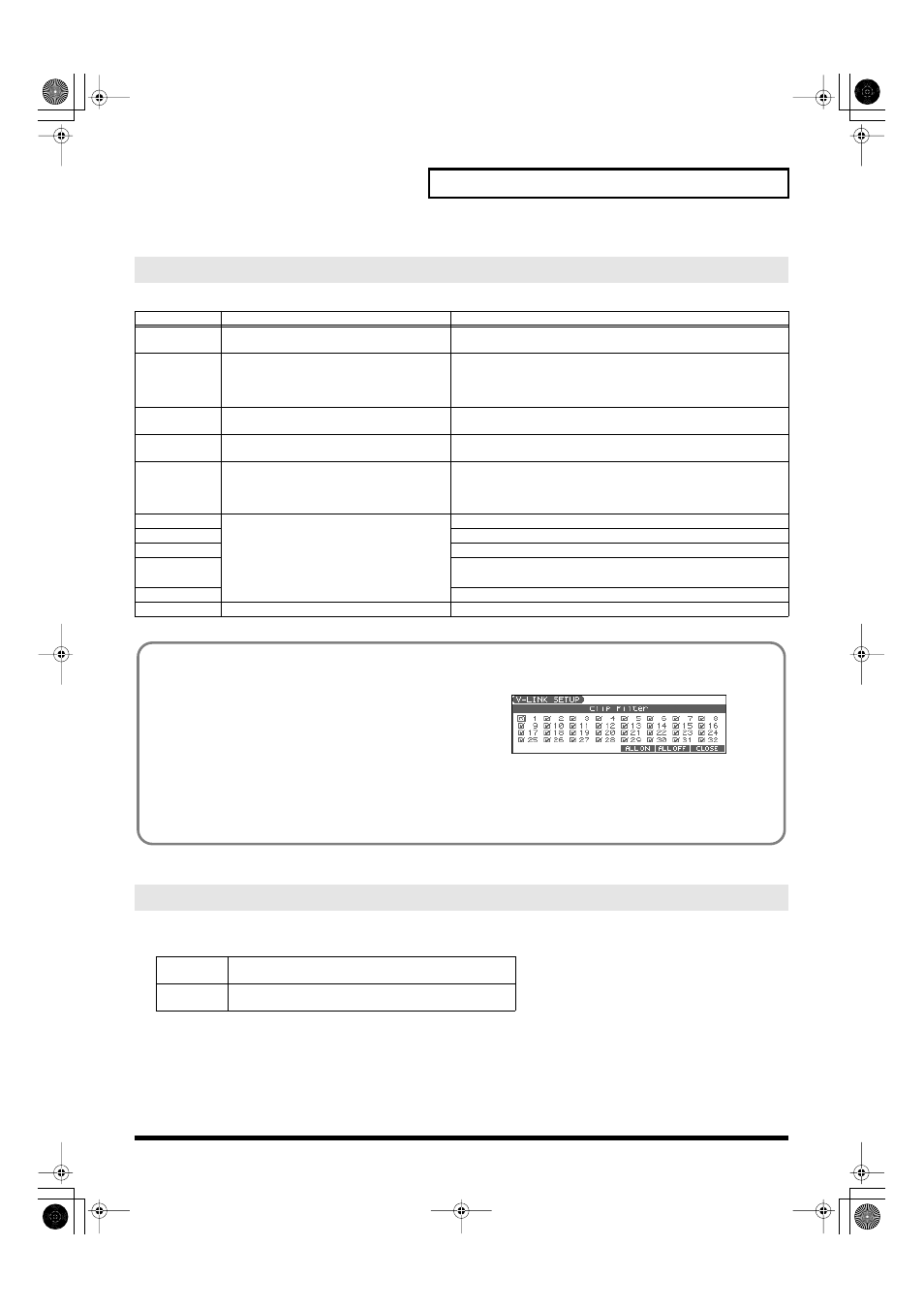

V-LINK Parameters
Parameter Value Explanation
Note Tx Ch 1–16 MIDI channel that will switch Edirol DV-7PR clips/palettes and will
control dissolve time
Clip 1 Note No. 0 (C -)–127 (G9) Pads 1–9 correspond to Edirol DV-7PR clips (or palettes).
We recommend that you set “Template Set” to “Note” and Clip1 Note
No. to the same value as the “Pad Base Note” setting. (Quick Setup; p.
118)
Dissolve Time OFF, CC01, CC05, CC07, CC10, CC11, CC71–74,
CC91–93, AFTERTOUCH (Channel Aftertouch) Control change number that controls the dissolve time (time over which
the image switches)
Ctrl Tx Ch 1–16 MIDI channel that will control the Edirol DV-7PR color Cb/Cr, bright-
ness, and video effect switching
Play Speed Ctrl 0.0-1.0-2.0, 0.5-1.0-2.0, 0.0-1.0-4.0, 0.5-1.0-4.0,
0.0-1.0-8.0, 0.5-1.0-8.0, 0.0-1.0-16.0, 0.5-1.0-16.0,
0.0-1.0-32.0, 0.5-1.0-32.0, 0.0-2.0-4.0, 0.0-4.0-8.0,
0.0-8.0-16.0, 0.0-16.0-32.0, -2.0-1.0-4.0, -6.0-1.0-8.0 Range of video playback speed
The three values are the playback speeds (multiples of normal speed)
at the left, center, and right positions of the pitch bend.
Color Cb Ctrl OFF, CC01, CC05, CC07, CC10, CC11, CC71–74,
CC91–93, AFTERTOUCH (Channel Aftertouch) Control change number that controls the Cb color of the image
Color Cr Ctrl Control change number that controls the Cr color of the image
Brightness Ctrl Control change number that controls the brightness of the image
VFX1–4 Ctrl Control change number that controls the video effect
* VFX2–4 are not supported by the Edirol DV-7PR.
Fade Ctrl Control change number that controls the output fade
Clip Filter OFF, ON ( ✔ ) Checked clips can be switched. Enable/disable switching for each clip.
Resetting the Image
[F3 (CLIP)]
(Clip Reset) Turn off the image (solid black).
[F4 (ALL)]
(All Reset) The effect applied to the image will be reset, and brightness,
color difference, etc. will all return to the default value.
Using the Clip Filter
For example, suppose that of the rhythm set you input in the
part used for V-LINK (i.e., the part of the same number as the
Note Tx Channel), you want only the kick and snare to switch
clips. In this case, check only the clips that correspond to the
note numbers of the kick and snare. The clips will switch when
the kick or snare plays.
1. In the V-LINK SETUP screen, press [F1 (FILTER)].
The Clip Filter window appears.
fig.V-LINK-CF
2. Use [CURSOR] to select a clip.
3. Use the VALUE dial or [INC] [DEC] to add or remove the
check mark ( ✔).
Checked clips can be switched.
