Roland Fantom-Xa - Manual (Page 169)

169

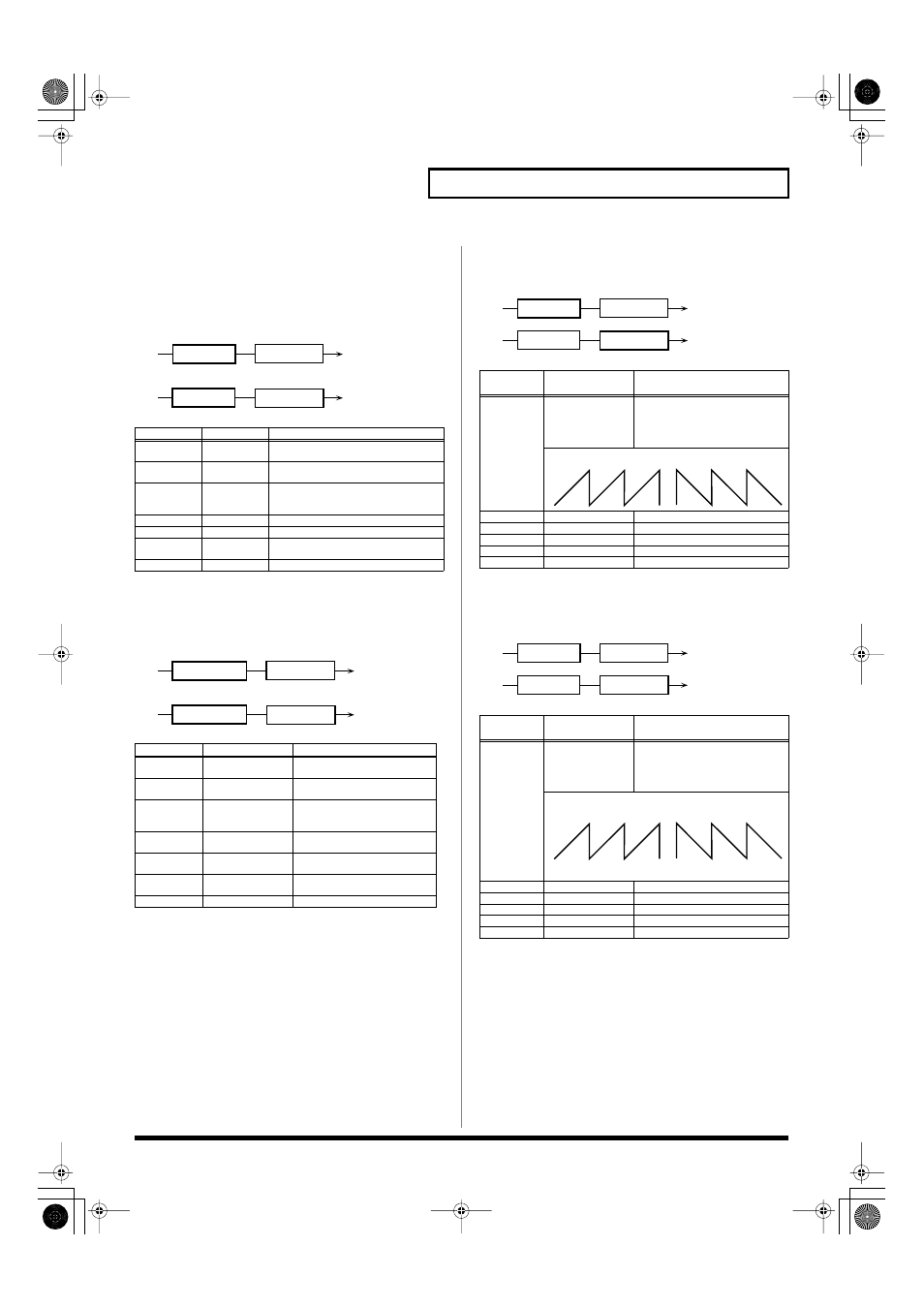

Adding Effects
15: RING MODULATOR
This is an effect that applies amplitude modulation (AM) to the input
signal, producing bell-like sounds. You can also change the
modulation frequency in response to changes in the volume of the
sound sent into the effect.
fig.MFX-15
16: STEP RING MODULATOR
This is a ring modulator that uses a 16-step sequence to vary the
frequency at which modulation is applied.
fig.MFX-16
17: TREMOLO
Cyclically modulates the volume to add tremolo effect to the sound.
fig.MFX-17a
18: AUTO PAN
Cyclically modulates the stereo location of the sound.
fig.MFX-18a
Parameter Value Explanation
Frequency # 0–127 Adjusts the frequency at which modula-
tion is applied.
Sens # 0–127 Adjusts the amount of frequency modu-
lation applied.
Polarity UP, DOWN Determines whether the frequency mod-
ulation moves towards higher frequen-
cies (
UP ) or lower frequencies ( DOWN ).
Low Gain -15– +15 dB Gain of the low frequency range
High Gain -15– +15 dB Gain of the high frequency range
Balance # D100:0W–
D0:100W Volume balance between the direct
sound (D) and the effect sound (W)
Level 0–127 Output level
Parameter Value Explanation
Step 01–16 0–127 Frequency of ring modulation at
each step
Rate # 0.05–10.00 Hz, note Rate at which the 16-step se-
quence will cycle
Attack # 0–127 Speed at which the modulation
frequency changes between
steps
Low Gain -15– +15 dB Amount of boost/cut for the
low-frequency range
High Gain -15– +15 dB Amount of boost/cut for the
high-frequency range
Balance # D100:0W–
D0:100W Volume balance of the original
sound (D) and effect sound (W)
Level 0–127 Output volume
L in
R in
L out
R out
Ring Mod
2-Band EQ
2-Band EQ
Ring Mod
L in
R in
L out
R out
Step Ring Mod
2-Band EQ
2-Band EQ
Step Ring Mod
Parame-
ter Value Explanation
Mod Wave TRI, SQR, SIN,
SAW1, SAW2 Modulation Wave
TRI: triangle wave
SQR: square wave
SIN: sine wave
SAW1/2: sawtooth wave
Rate # 0.05–10.00 Hz, note Frequency of the change
Depth # 0–127 Depth to which the effect is applied
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
Parame-
ter Value Explanation
Mod Wave TRI, SQR, SIN,
SAW1, SAW2 Modulation Wave
TRI: triangle wave
SQR: square wave
SIN: sine wave
SAW1/2: sawtooth wave
Rate # 0.05–10.00 Hz, note Frequency of the change
Depth # 0–127 Depth to which the effect is applied
Low Gain -15– +15 dB Gain of the low range
High Gain -15– +15 dB Gain of the high range
Level 0–127 Output Level
L in
R in
L out
R out
Tremolo
2-Band EQ
2-Band EQ
Tremolo
SAW1 SAW2
L in
R in
L out
R out
Auto Pan
2-Band EQ
2-Band EQ
Auto Pan
SAW1 SAW2
L
R
L
R
