Roland Fantom-Xa - Manual (Page 216)

216
Expanding the Memory
The Fantom-Xa comes with 4 MB of memory into which audio
samples can be loaded. However, in some cases, 4 MB of memory
will be insufficient for loading large amounts of data. In such a case,
you will have to add separately sold memory (DIMM). Memory can
be expanded up to 64/128/256/512 MB.
Before expanding the memory, consult with your retailer, the nearest
Roland Service Center, or an authorized Roland distributor.
901
• To avoid the risk of damage to internal components that can be
caused by static electricity, please carefully observe the following
whenever you handle the board.
1
• Before you touch the board, always first grasp a metal object
(such as a water pipe), so you are sure that any static
electricity you might have been carrying has been discharged.
2
• When handling the board, grasp it only by its edges. Avoid
touching any of the electronic components or connectors.
5
• Save the bag in which the board was originally shipped, and
put the board back into it whenever you need to store or
transport it.
• Use a Phillips screwdriver that is suitable for the size of the screw
(a number 2 screwdriver). If an unsuitable screwdriver is used,
the head of the screw may be stripped.
• To remove a screw, rotate the screwdriver counter-clockwise. To
tighten the screws, rotate the screwdriver clockwise.
fig.Screw.e
• Install only the specified memory DIMM board. Remove only the
specified screws.
• Be careful that the screws you remove do not drop into the
interior of the Fantom-Xa.
• Do not leave the bottom cover removed. After installation of the
memory module is complete, be sure to replace the cover.
• Be careful not to cut your hand on the edge of the cover or the
opening edge while removing the cover.
911
• Do not touch any of the printed circuit pathways or connection
terminals.
912
• Never use excessive force when installing a circuit board. If it
doesn’t fit properly on the first attempt, remove the board and try
again.
913
• When circuit board installation is complete, double-check your
work.

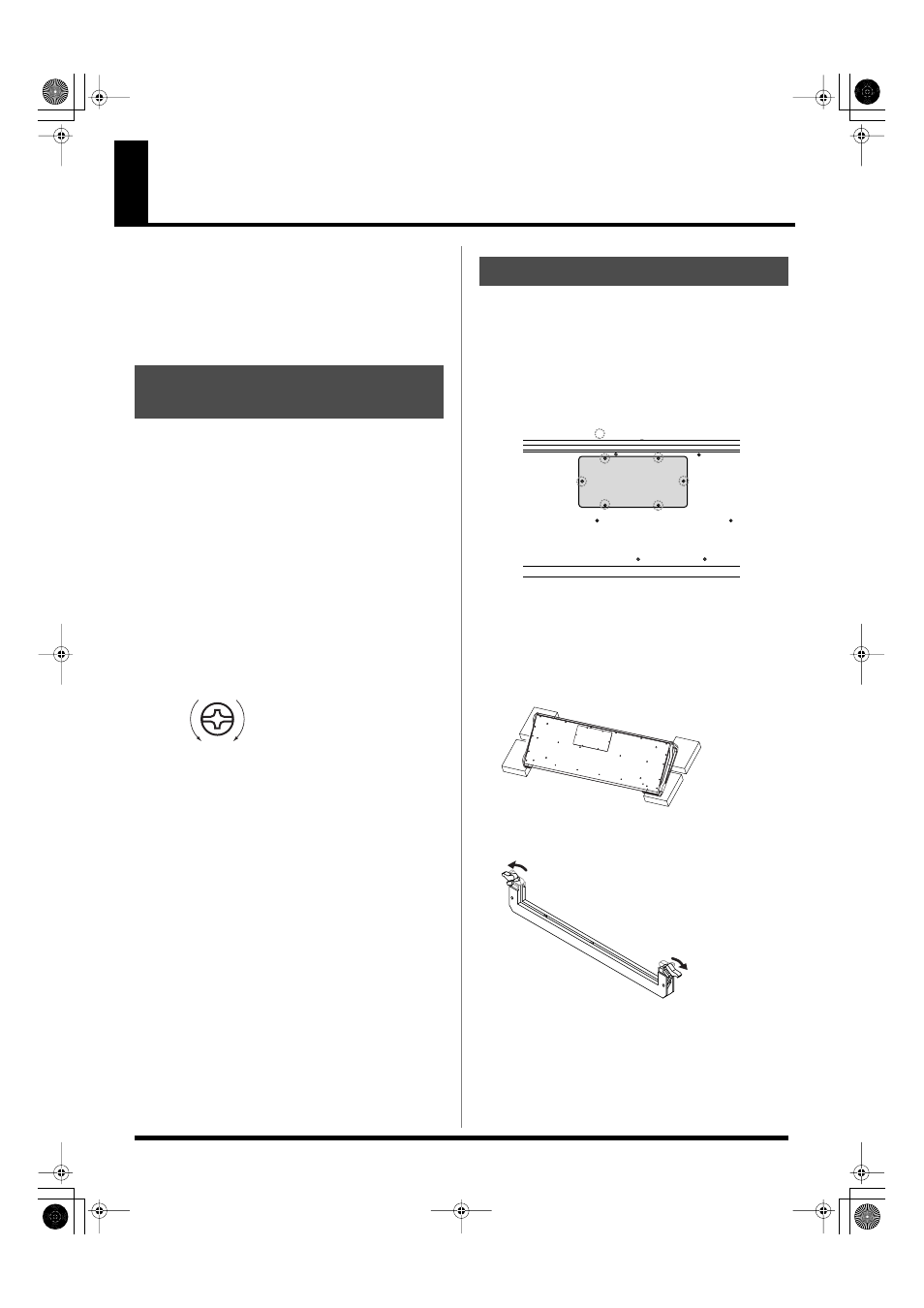

Install the memory module after removing the bottom panel cover.
1. Before expanding the memory, turn off the power of the
Fantom-Xa and all connected devices, and disconnect all
cables, including the AC adaptor, from the Fantom-Xa.
2. From the Fantom-Xa, remove only the screws shown in the
following diagram, and detach the cover.
fig.Exp1.e
928
* When turning the unit upside-down, get a bunch of newspapers or
magazines, and place them under the four corners or at both ends to
prevent damage to the buttons and controls. Also, you should try to
orient the unit so no buttons or controls get damaged.
929
* When turning the unit upside-down, handle with care to avoid
dropping it, or allowing it to fall or tip over.
fig.Exp2
3. Press outward the white clips at either end of the socket
should be in the downward position.
fig.DIMM1
Precautions for Expanding
Memory
tighten loosen
How to Expand the Memory
Screws to be removed
Fantom-Xa : bottom
