Adding Effects
In Performance mode you can use three multi-effects (MFX1, MFX2, MFX3), one chorus, and one reverb. For each of the three multi-effects, the
chorus, and the reverb, you can specify whether it will operate according to the effect settings of the performance, or according to the effect
settings of the patch or rhythm set assigned to the part you specify. The three multi-effects can be used independently, or you can connect two or
three of them in series.
Here you can make overall settings for effects, and the output destination and level of each signal.

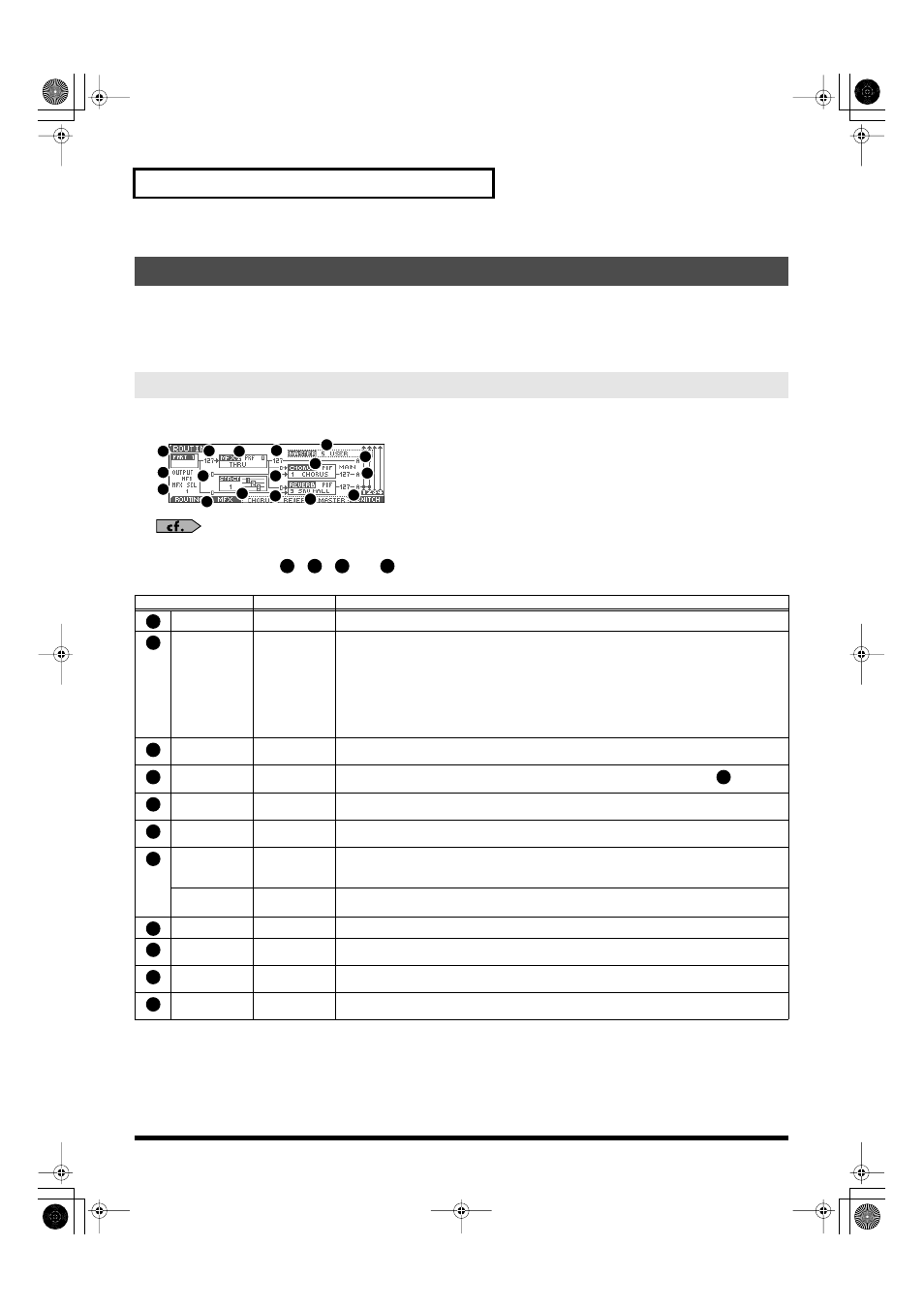

fig.RoutingPfm
For details on these settings, refer to
*
For the following parameters
,
–
, and
settings can be made individually for three systems multi-effects (MFX1–MFX3).
Applying Effects in Performance Mode
Specifying How the Sound Will Be Output (Routing)
Parameter
Value
Explanation
Part Select
1–16
Part for which you want to make settings
Part Output
Assign
MFX, A, B, 1–4,
PAT
Specifies for each part how the direct sound will be output.
MFX:
Output in stereo through multi-effects. You can also apply chorus or reverb to the sound
that passes through multi-effects.
A, B:
OUTPUT A (MIX) jack or OUTPUT B jack in stereo without passing through multi-effects
1–4:
INDIVIDUAL 1–4 jacks in mono without passing through multi-effects
PAT:
Determined by the settings of the patch or rhythm set assigned to the part.
* If the Mix/Parallel parameter is set to “MIX,” all sounds are output from the OUTPUT A (MIX) jacks in
Part Output
MFX Select
1–3
(MFX1–MFX3)
Specifies which multi-effects will be used.
Part Output
Level
0–127
Level of the signal sent to the output destination specified by Part Output Assign (
)
Part Chorus
Send Level
0–127
Level of the signal sent to chorus for each part
Part Reverb
Send Level
0–127
Level of the signal sent to reverb for each part.
MFX Source
PRF, P1–P16
Multi-effects parameter settings used by the performance
PRF:
Performance settings
P1–P16:
Settings of the patch/rhythm set assigned to one of the parts (Select the part number.)
MFX Type
0–78
Selects from among the 78 available multi-effects.
For details on multi-effects parameters, refer to
MFX Structure
1–16
Specifies how MFX1–3 will be connected.
MFX Output
Level
0–127
Volume of the sound passed through the multi-effects
MFX Chorus
Send Level
0–127
Amount of chorus for the sound passed through multi-effects
MFX Reverb
Send Level
0–127
Amount of reverb for the sound passed through multi-effects
4
5
6
1
2
7
8
9
10
11
12
13
14
15
16
17
3
7
9
11
14
1
2
3
4
2
5
6
7
8
9
10
11
