4. Configuration

3160-A2-GB24-10

March 2001

4-43

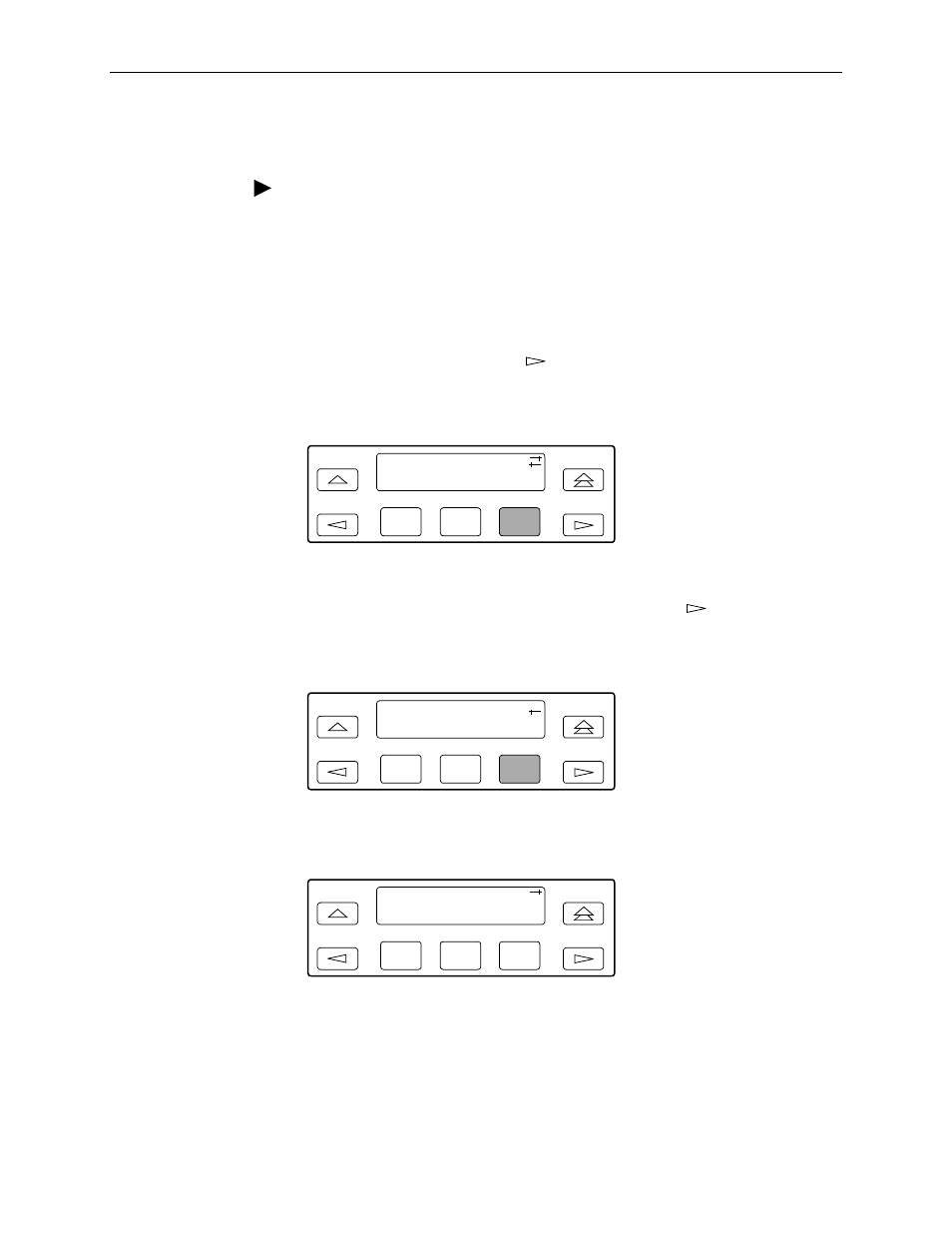

Configuring for External Timing

Procedure

To configure 2-port and 4-port DSU/CSUs for external timing:

1. From the top-level menu screen, select Cnfig.

2. Select the configuration option set to be copied into the Edit area by using the

appropriate Function key. Use the scroll keys, if necessary.

3. Select Edit.

4. From the Edit screen, press the

key until the Gen selection appears on the

screen.

5. Select Gen.

6. Press F1 (Next) to display the next configuration option (Clock Src).

7. Select the master clock source. For external, press the

key until the Ext

selection appears on the screen.

8. Select Ext (external timing).

9. Select the appropriate external clock rate by pressing the corresponding

Function key. This step is mandatory if you have chosen external clocking.

Edit:
NET Chan Gen

Clock Src:Ext
Prt1 Int Ext

Clock Rate:1544
Next 2048 1544
