G. IP Network Addressing Scenarios

G-4

March 2001

3160-A2-GB24-10

Local Carrier with Remote Standalone

The second scenario (

Figure G-3, Local Carrier with Remote Standalone

) is a

carrier communicating with standalone remotes. This scenario is similar to the
previous one, treating the carrier devices as the daisy-chained devices. All devices
are still on the same subnet, and the subnet mask is FF.FF.FF.00. A static route still
must be set in the NMS host to subnet 135.18.2.0.

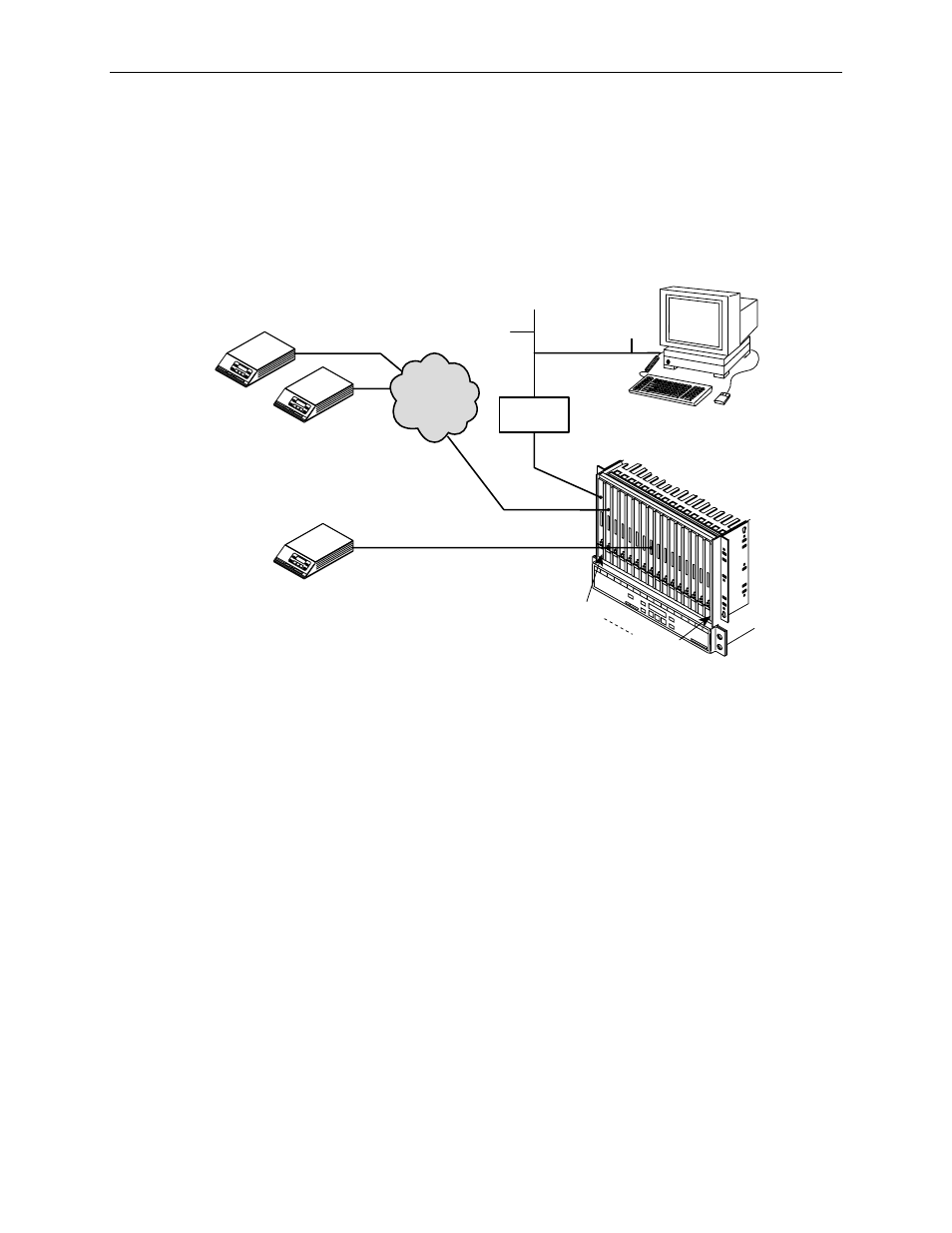

Figure G-3.

Local Carrier with Remote Standalone

ETHERNET

135.18.2.17

496-14646-02

LAN

ADAPTER

FT1

CO

MS

PH

ER

E 3

610

CO

MS

PH

ER

E 3

610

CO

MS

PH

ER

E 3

610

135.18.2.18

135.18.2.26

135.18.2.1

135.18.2.16

135.18.40.1

COM IP ADDRESS: 135.18.40.3

SUBNET 135.18.40.0

SUBNET 135.18.2.0

T1

CO

M

SP

HE

RE

30

00

NETWORK
