8. Testing

8-2

March 2001

3160-A2-GB24-10

Test Jacks

For Model 3160 and 3164 DSU/CSUs, six test jacks are located on the front panel
(

Figure 8-1, Model 3160 and 3164 Test Jacks

, and

Figure 8-2, Model 3161 Test

Jacks

). The Mon (Monitor) branch of the menu tree allows you to select either

EQPT (Equipment) or NET (Network). The Model 3160 and 3164 DSU/CSU test
jack functions are shown in

Figure 8-3, Test Jack Block Diagram

, and described in

Table 8-1, Test Jack Functions

.

The Model 3165 DSU/CSU has test jacks only for Network In and Out.

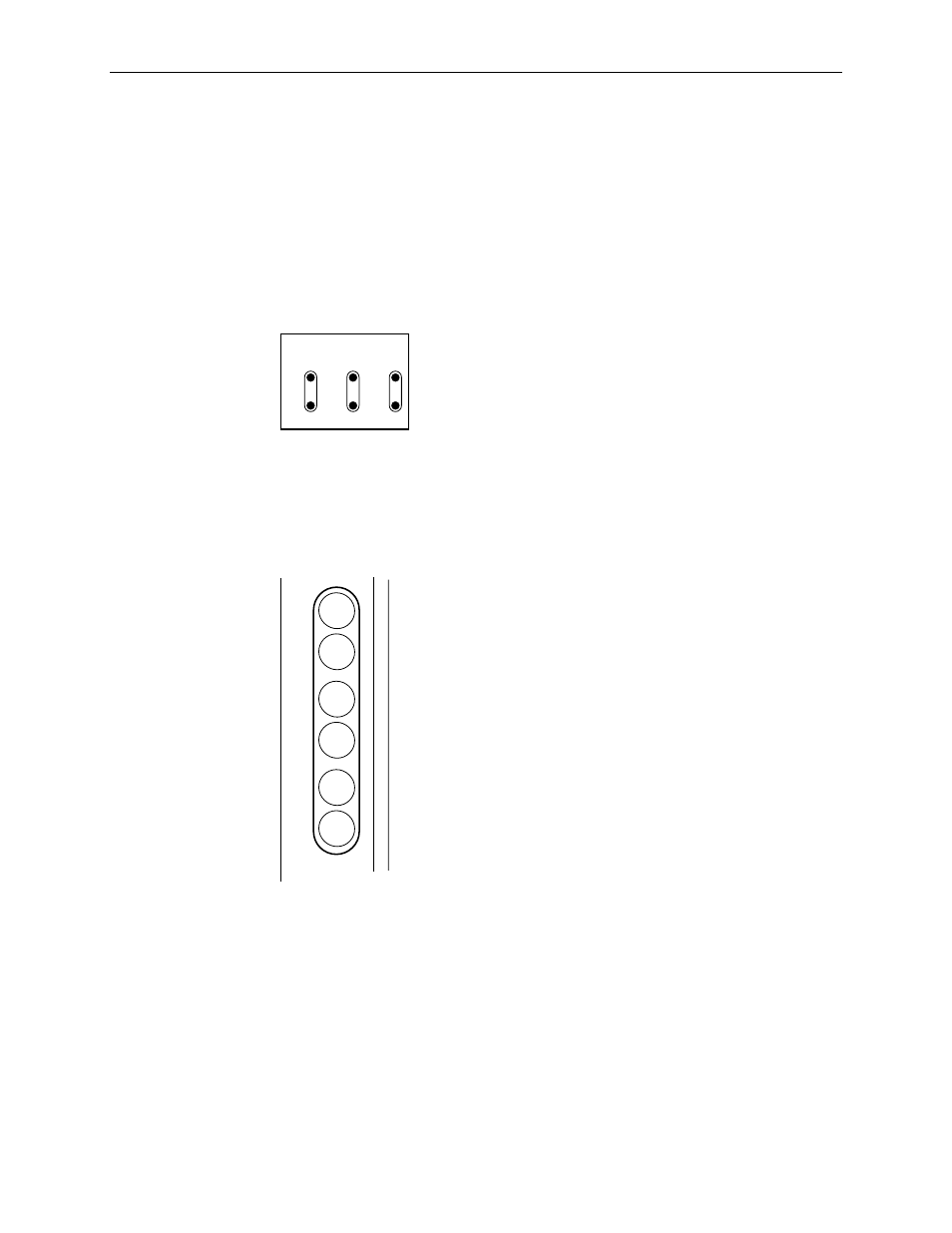

Figure 8-1.

Model 3160 and 3164 Test Jacks

The Model 3161 DSU/CSU has six test jacks on its front panel.

Figure 8-2.

Model 3161 Test Jacks

In

Out

In

Out

In

Out

NET

MON

EQPT

496-14808

01-16943

Net

In

Out

In

Out

In

Out

Mon

Eqp
