Local and Remote Carriers – Same Subnet
An alternative addressing scheme, for the network is shown in
Carrier Connected to Remote Carriers – an Alternative
. This example uses a
subnet mask of FF.FF.00.00 for the COM port in the central-site carrier (only), with
all of the remaining subnet masks set to FF.FF.FF.00. The advantage to this
scheme is that only one route must be added to the NMS host (135.18.0.0).

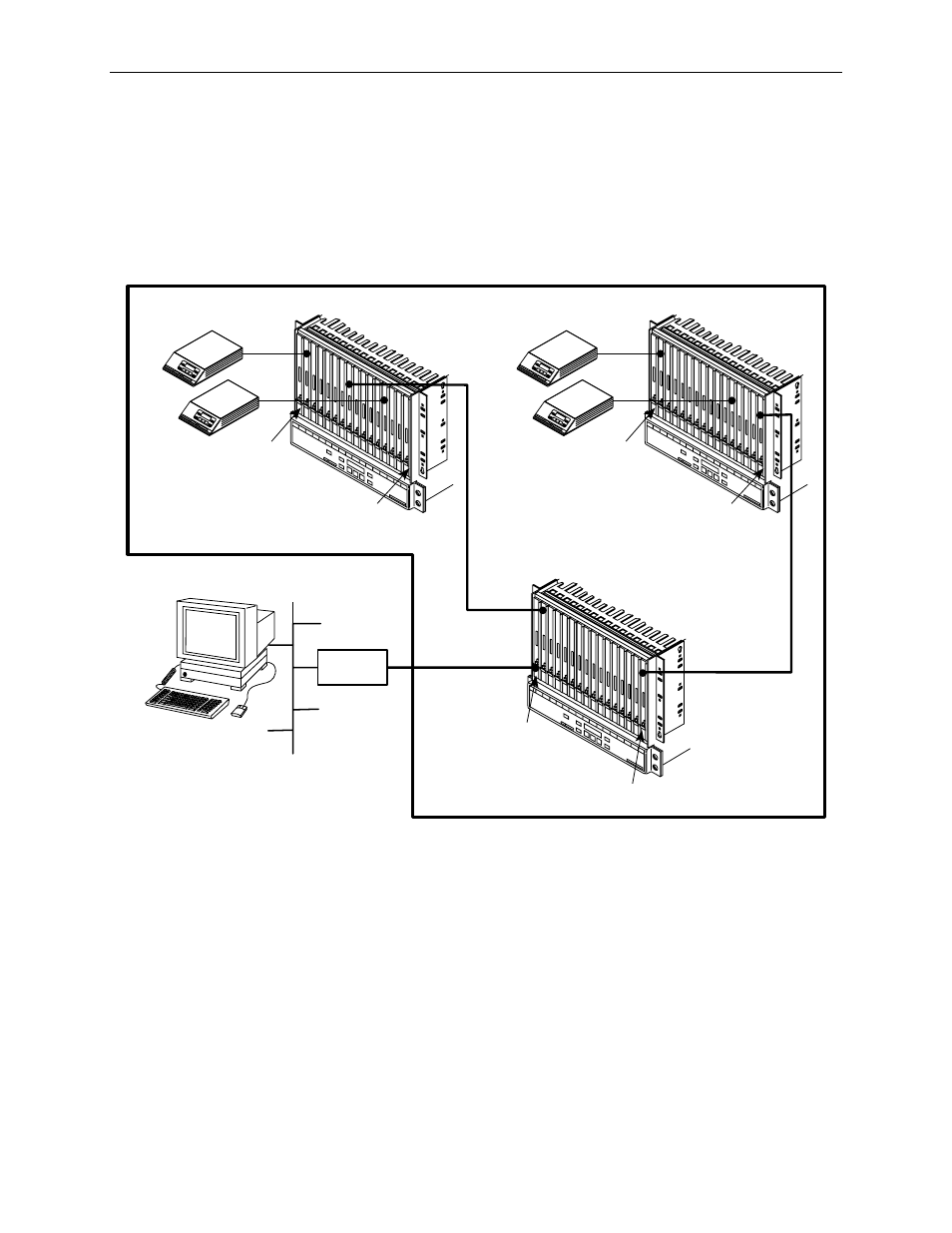

Figure G-5.
Local Carrier Connected to Remote Carriers – an Alternative
