2. Installation

3160-A2-GB24-10

March 2001

2-7

Installing the Single –48 Vdc Power Supply

To install the Model 3164 DSU/CSU using a single source –48 Vdc SELV power
supply, refer to

Figure 2-9, –48 Vdc Single Source Power Supply Pinouts

, and use

the following procedure.

Procedure

To install the –48 Vdc single source power supply:

1. Connect the black and red wires to the –48 Vdc return source.

2. Connect the green wire to a suitable ground.

3. Connect the orange and blue wires to the –48 Vdc input source.

4. Cut the white wire off at the outer insulation.

5. Plug the power connector into the DSU/CSU.

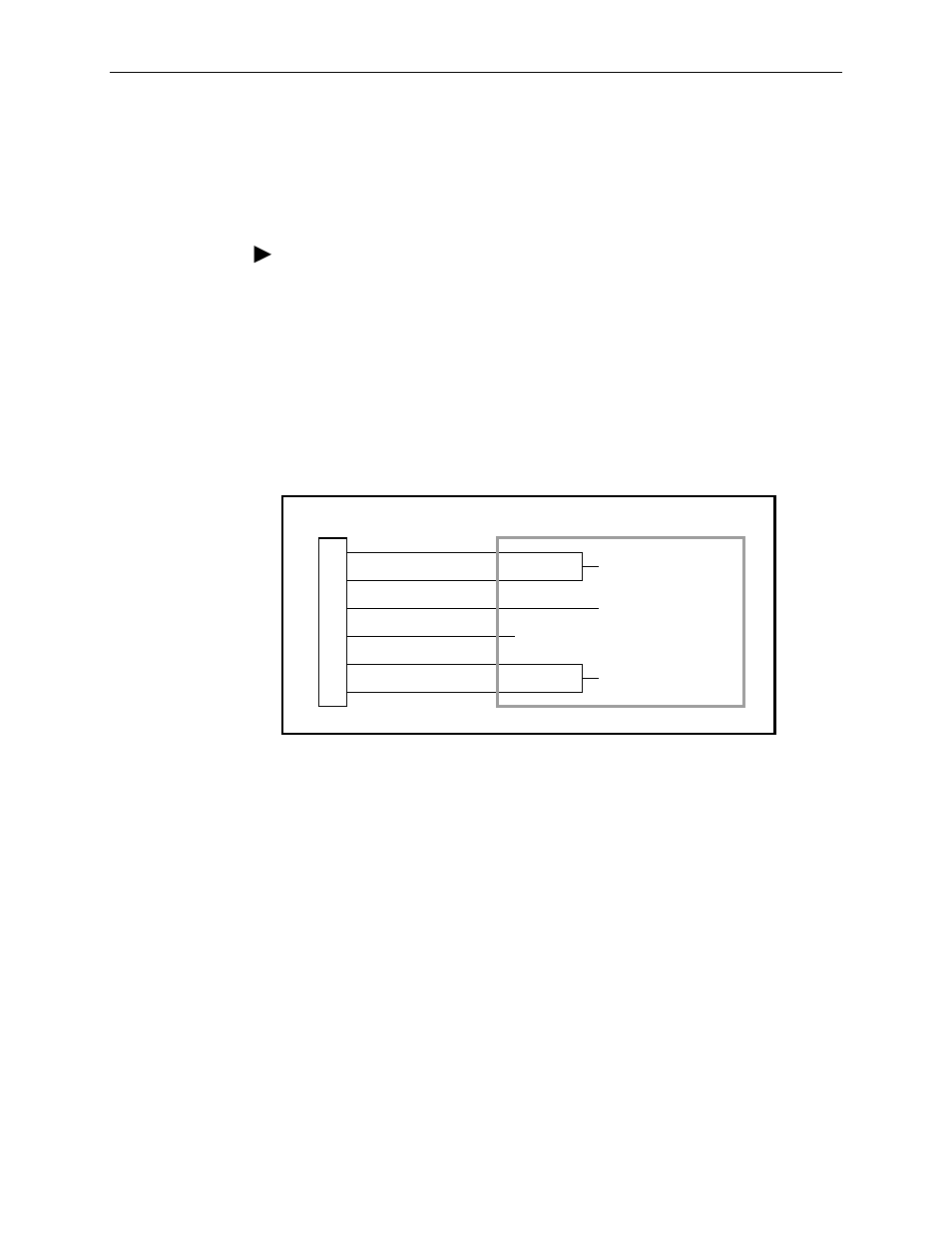

Figure 2-9.

–48 Vdc Single Source Power Supply Pinouts

1

2

3

4

5

6

BLACK

RED

GREEN

WHITE

ORANGE

BLUE

– 48 VDC INPUT

99-14299-02

X

GROUND

DSU/CSU POWER

PLUG

TO CUSTOMER-SUPPLIED BATTERY

– 48 VDC RETURN
