8. Testing

3160-A2-GB24-10

March 2001

8-3

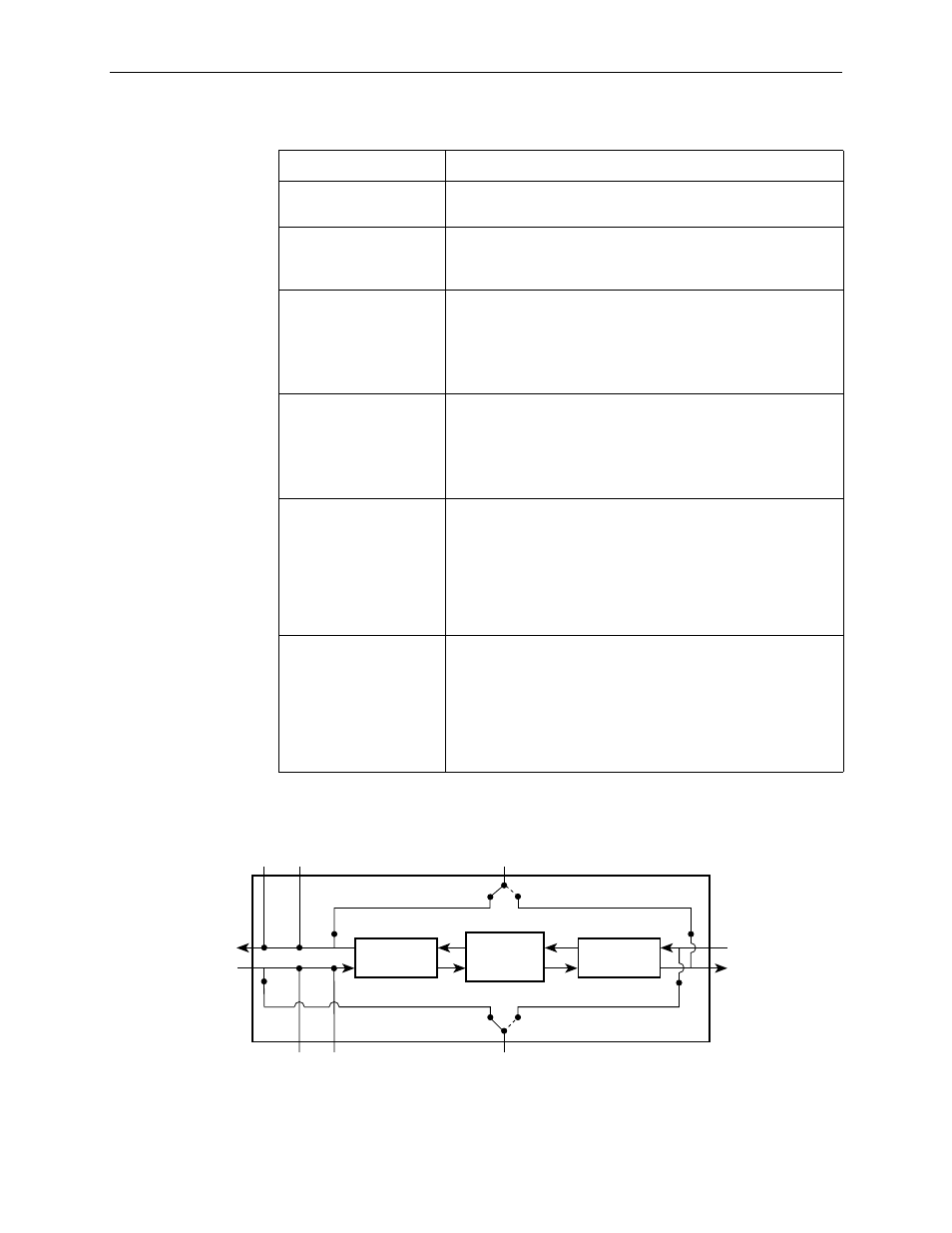

Figure 8-3.

Test Jack Block Diagram

Table 8-1.

Test Jack Functions

Test Jack Name

Function

NET In
(Network In)

All models: A break-in test jack that allows a signal to be
inserted toward the network by external test equipment.

NET Out
(Network Out)

All models: A break-in test jack that interrupts the signal
coming from the network and allows it to be terminated by the
external test equipment.

EQPT In
(Equipment In)

Model 3161: A non-interruptive test jack that monitors the
signal toward the terminal equipment (DTE).

Models 3160, 3164: A break-in test jack that allows a signal to
be inserted toward the terminal equipment (DTE) by external
test equipment.

EQPT Out
(Equipment Out)

Model 3161: A non-interruptive test jack that monitors the
signal coming from the terminal equipment (DTE).

Models 3160, 3164: A break-in test jack that interrupts the
signal coming from the terminal equipment (DTE) and allows it
to be terminated by the external test equipment.

MON In
(Monitor In)

Model 3161: A non-interruptive test jack that monitors the
signal going into the network.

Models 3160 and 3164: A monitor jack that is controlled by the
Mon (Monitor) branch of the menu tree. If it is set to EQPT (the
default), this jack monitors the signal going into the terminal
equipment (DTE). If it is set to NET, this jack monitors the
signal going into the network.

MON Out
(Monitor Out)

Model 3161: A non-interruptive test jack that monitors the
signal coming from the network.

Models 3160 and 3164: A monitor jack that is controlled by the
Mon (Monitor) branch of the menu tree. If it is set to EQPT (the
default), this jack monitors the signal coming from the terminal
equipment (DTE). If it is set to NET, this jack monitors the
signal coming from the network.

LINE

RECEIVER

INTERNAL

CIRCUITRY

LINE

RECEIVER

TERMINAL

EQUIPMENT

(DTE)

NETWORK

NET

Out

EQPT

In

MON

Out

NET

In

EQPT

Out

MON

In

496-14875

Mon Jack: EQPT

Mon Jack: NET

Mon Jack: EQPT

Mon Jack: NET

(Selectable)

(Selectable)
