4. Configuration

3160-A2-GB24-10

March 2001

4-11

9. When you are through changing the IP address, you must press F3 (Save) to

save the value. Otherwise, the original value will be retained.

Setting the 10BaseT Port Subnet Mask

The subnet mask for the 10BaseT port IP address is set automatically according
to the class of the IP address. It can also be set manually in a fashion similar to the
IP address. See

Setting the 10BaseT Port IP Address

on page 4-10 for complete

instructions.

Procedure

To change the subnet mask for the 10BaseT port IP address:

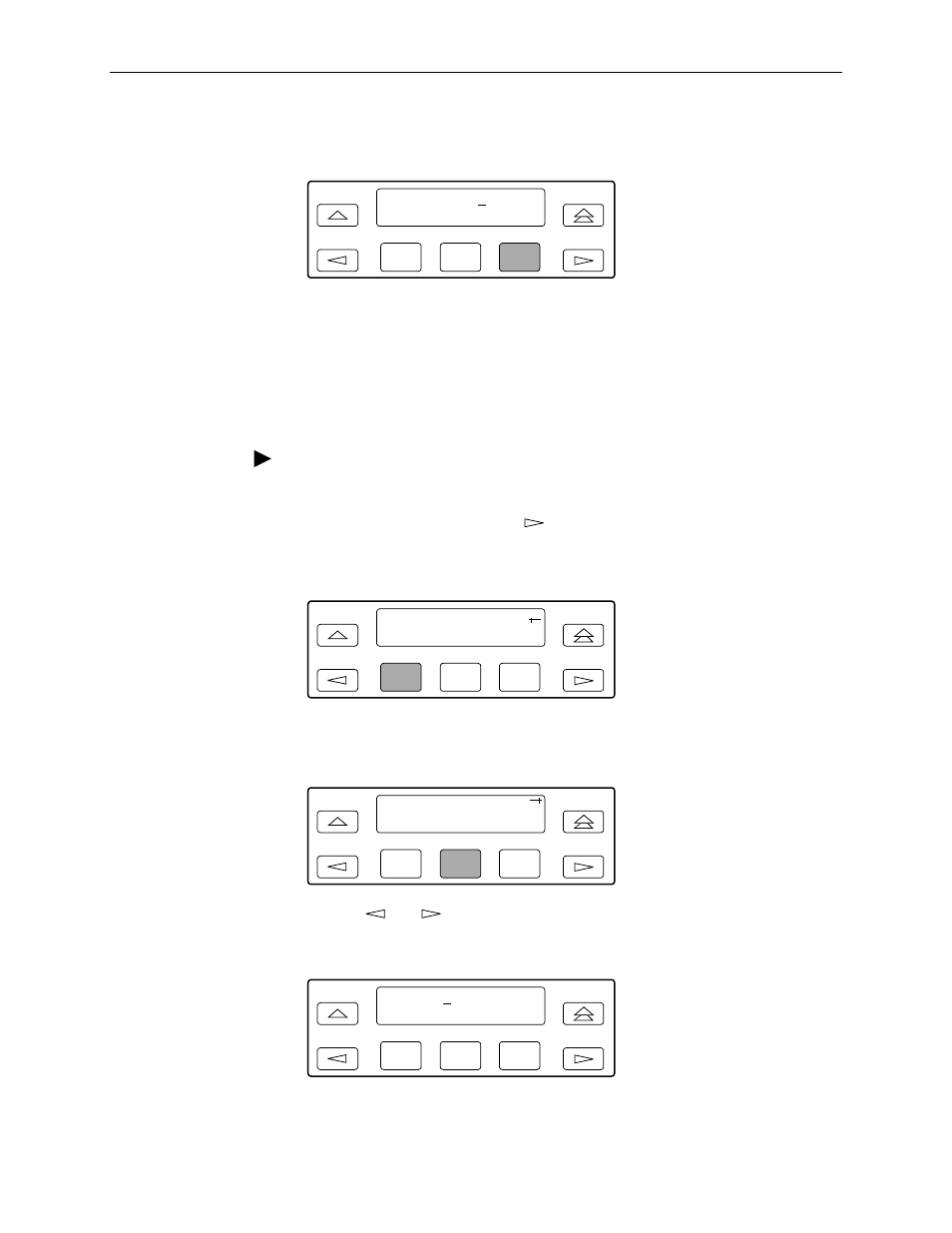

1. From the Edit screen, press the

key until the User selection appears on the

screen.

2. Select User.

3. Press F1 (Next) until the ENET NetMask configuration option appears.

4. Press F2 (Edit) to edit the subnet mask.

5. Use the

and

keys to position the cursor under the digit you want to

change. Press F1 (Up) to increment the digit or F2 (Down) to decrement the
digit.

6. When you are through changing the subnet mask, you must press F3 (Save)

to save the value. Otherwise, the original value will be retained.

F1

F2

F3

010.155.111.222
Up Down Save

F1

F2

F3

Edit:
User Alarm Mgmt

F1

F2

F3

ENET NetMask:
Next Edit Clear

F1

F2

F3

255.255.240.000
Up Down Save
