RIO Remote I/O System User Guide
Installing a Long Distance Module (LDM)
Page 187
Chapter 2 Installing hardware and software

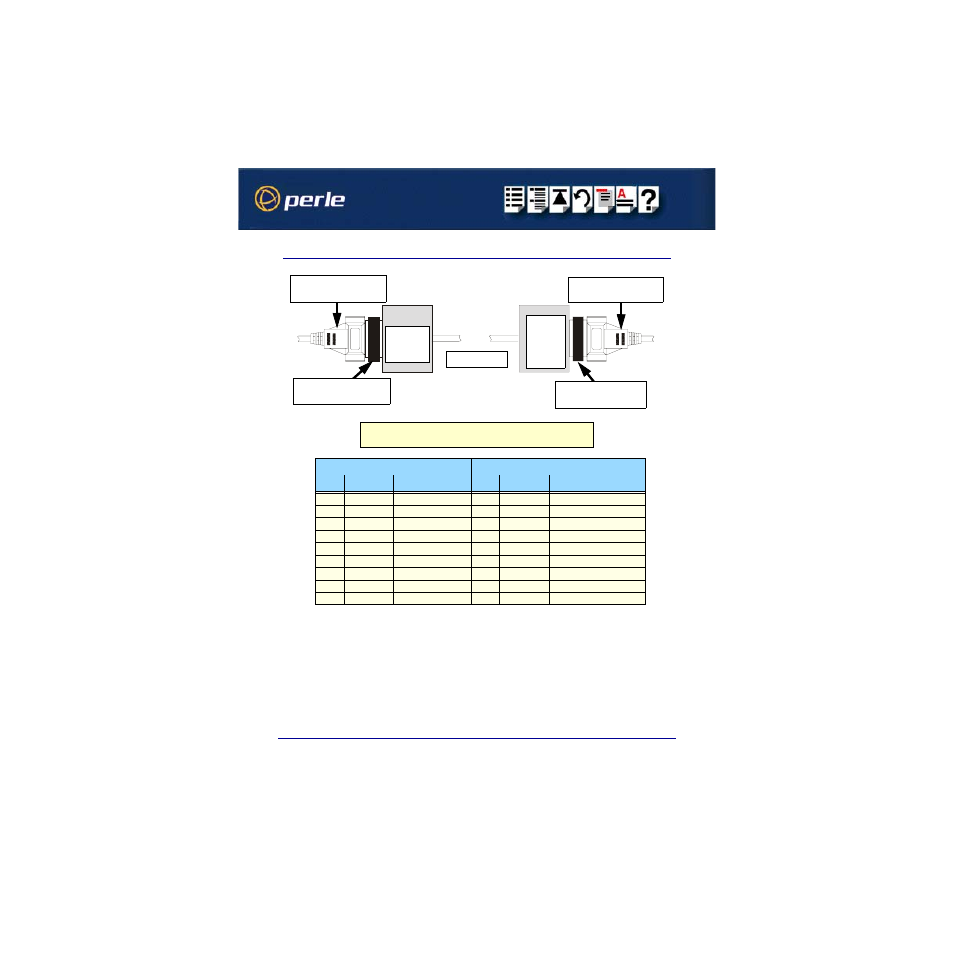

Asynchronous/Synchronous Modem & X21bis (DB25 female to DB25 male)
Note
Any connector pins not listed in the next table must not be connected.
DB25 female (LDU) DB25 male (Modem)
Pin Signal Description Pin Signal Description
2 TXD Transmit Data 2 TXD Transmit Data
3 RXD Receive Data 3 RXD Receive Data
4 RTS Request To Send 4 RTS Request To Send
5 CTS Clear To Send 5 CTS Clear To Send
7 GND Ground 7 GND Ground
8 DCD Data Carrier Detect 8 DCD Data Carrier Detect
15 TXC Transmit Clock 15 TXC Transmit Clock
17 RXC Receive Clock 17 RXC Receive Clock
20 DTR Data Terminal Ready 20 DTR Data Terminal Ready
Leased line
Modem at
host card
site
Modem
at
remote
site
DB25 female to male
adaptor. DB25 female to male
adaptor.
DB25 female flying lead
to remote site LDU DB25 female flying lead
from host card site LDU
