Wall mounting an RTA8
The RTA8 has is fitted with wall mounting holes at either end of the unit concealed by push-
fit end caps. To wall mount a RTA8 unit proceed as follows;
1. On the RTA unit gently prize off the caps at either end of the unit to reveal the wall
mounting holes as shown in the next picture.
2. Screw the unit to the wall through the holes provided using appropriate screws or
fasteners for your installation.
3. Replace the caps at the ends of the unit.
Wall mounting of the unit is now complete. You can now perform the normal installation steps
described in
RTA8 8 port Remote Terminal Adaptors
Warning
Before you wall mount the RTA, turn off and disconnect the
power supply to the unit.

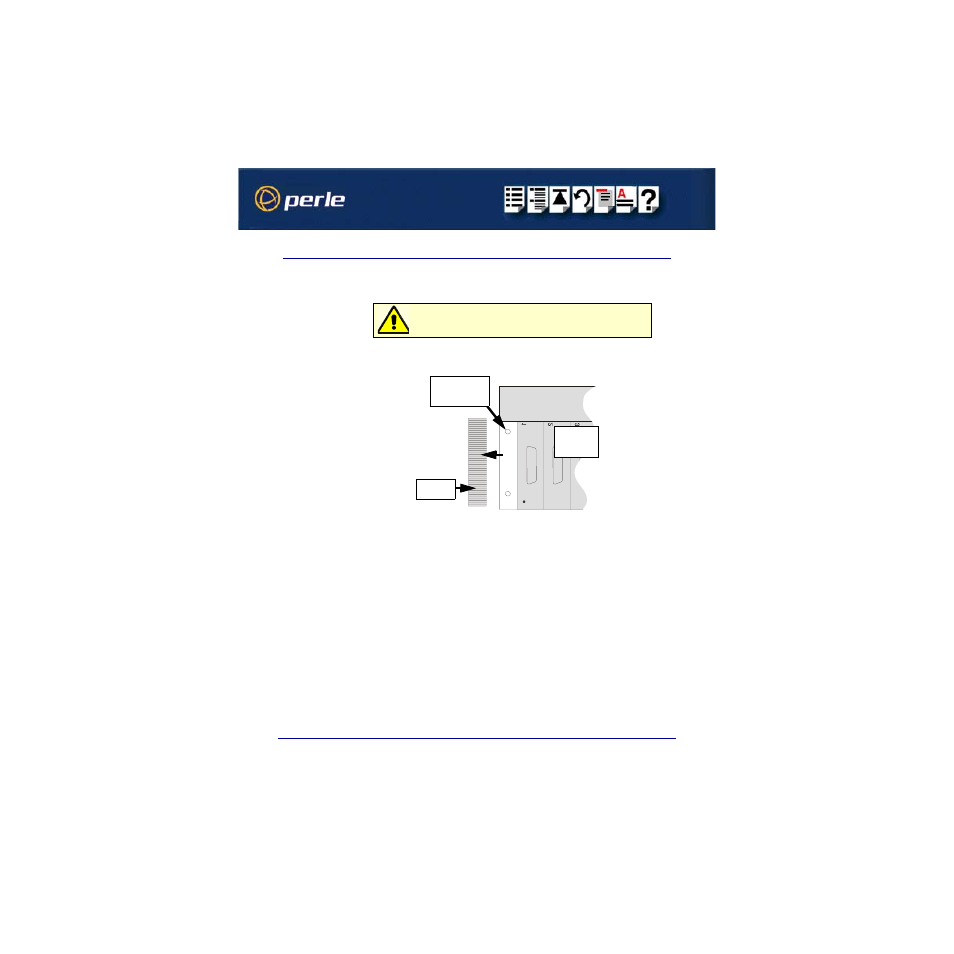

RTA8 unit
(Top
Screw hole for
wall mounting
End cap
