Installing Remote Terminal Adaptors (RTAs)
Page 172
Chapter 2 Installing hardware and software
Wall mounting To wall mount an RRC16 proceed as follows;
1. Take the RRC16 and screw one of the mounting brackets provided with the unit into each
side of the unit as shown in the next picture.
2. Secure the unit to the wall via the brackets and using suitable fasteners for the type of
wall you are fixing to.
3. Install and cable up the unit using the procedure described in RRC16 Remote
Concentrator on page 168 .

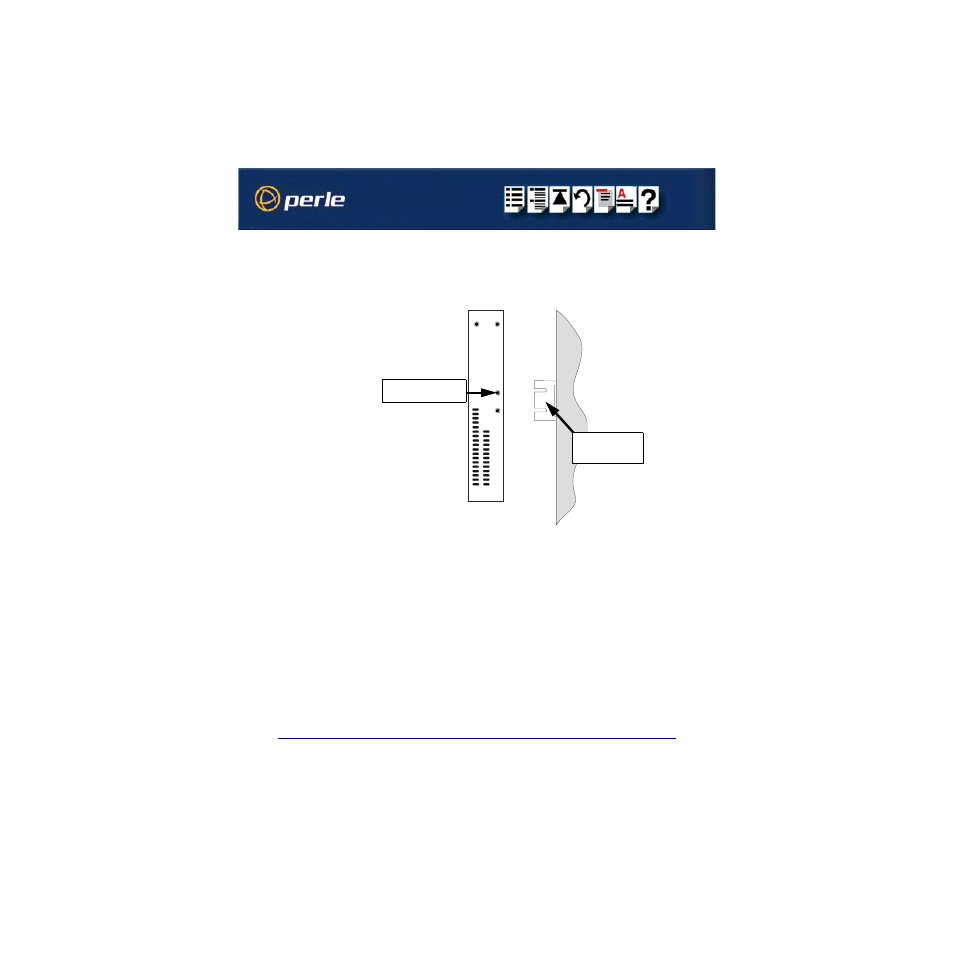

Wall mounting holes
Mounting bracket
attached to wall
