Chapter 2 Installing hardware and software
Rack mounting To rack mount an RRC16 proceed as follows;
1. Take the RRC16 and screw one of the mounting brackets provided with the unit into each

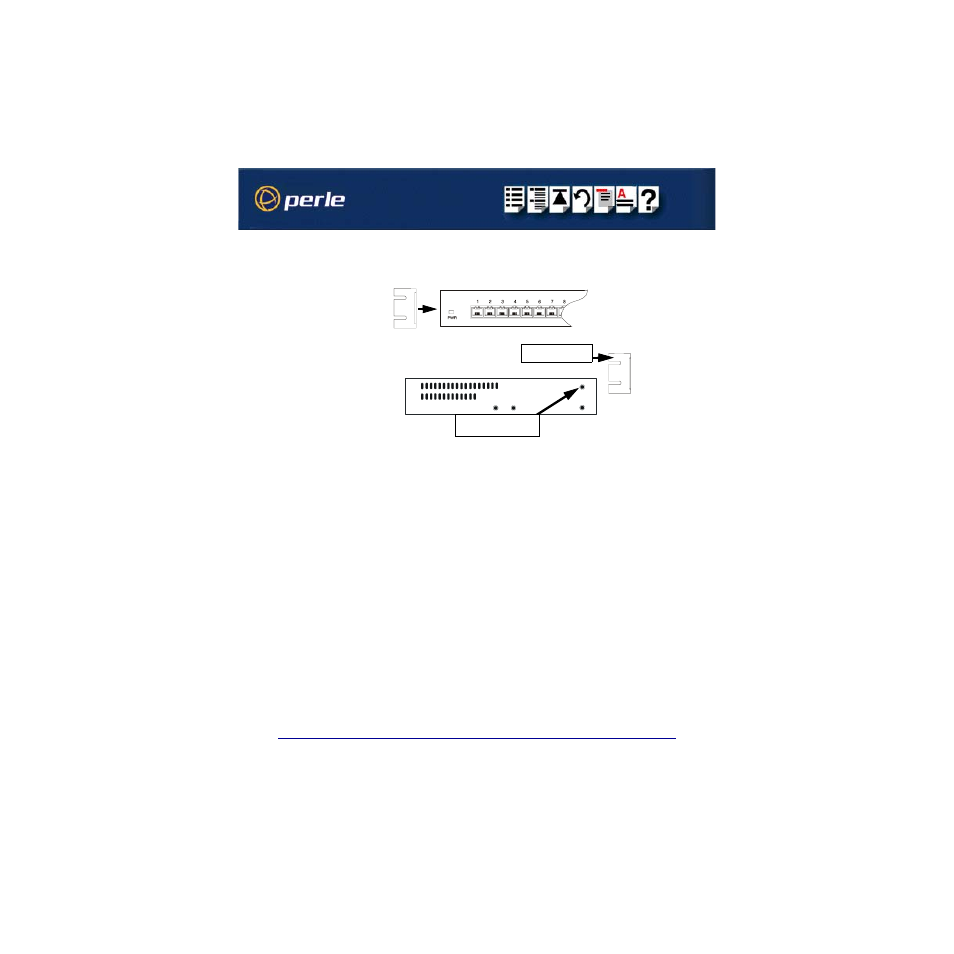

side of the unit as shown in the next picture.
2. Insert the unit into your rack frame and secure in place.
3. Install and cable up the unit using the procedure described in RRC16 Remote
Concentrator on page 168 .
Rack mounting holes
Mounting bracket
