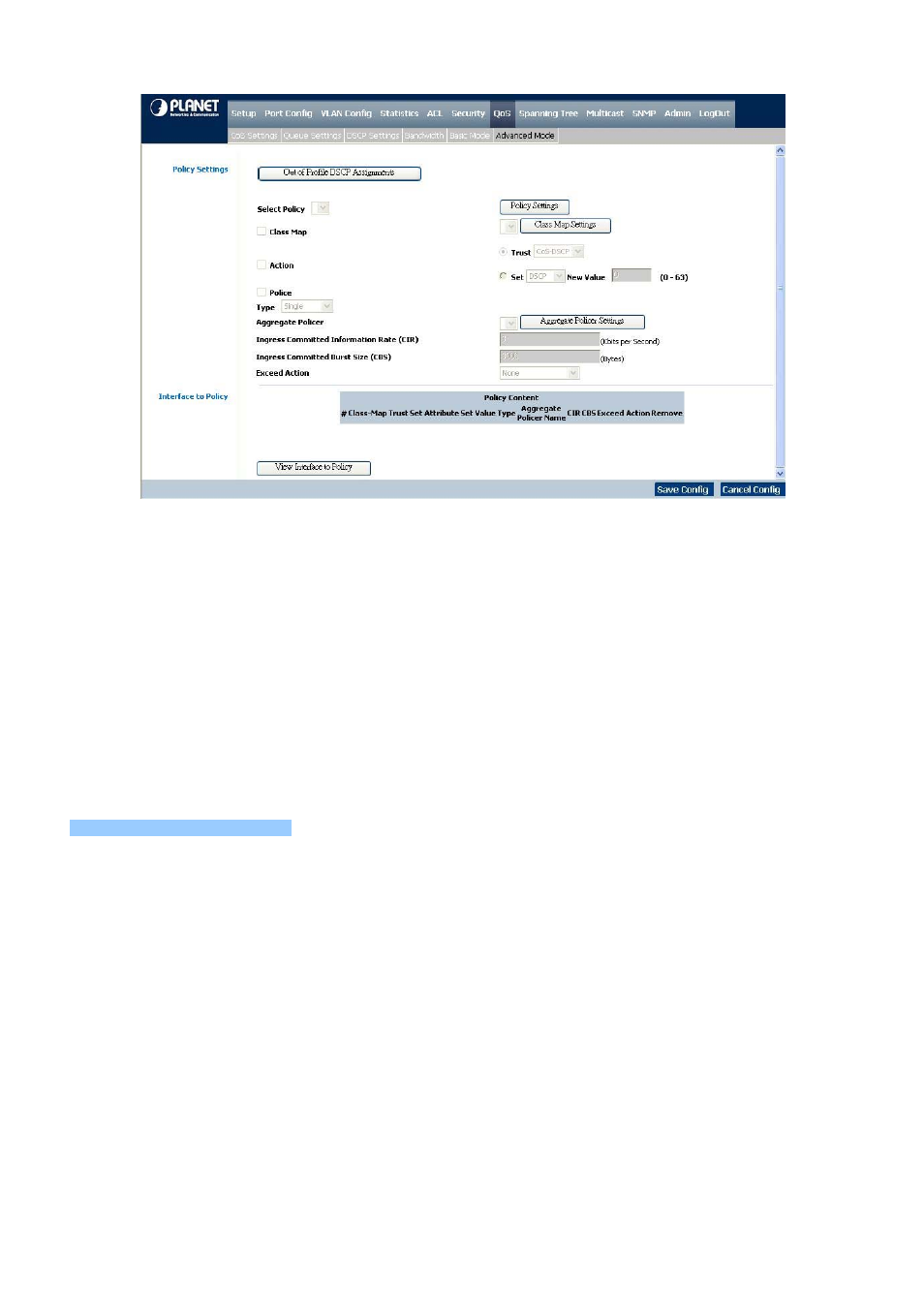

Figure 4-40 Advance Mode screen
MAC ACLs and IP ACLs can be grouped together in more complex structures, called policies. Policies can be applied to an
interface. Policy ACLs are applied in the sequence they appear within the policy. Only a single policy can be attached to a port.
In advanced QoS mode, ACLs can be applied directly to an interface in the Security -ACL Binding. However, a policy and ACL
cannot be simultaneously applied to an interface.
After assigning packets to a specific queue, services such as configuring output queues for the scheduling scheme, or
configuring output shaping for burst size, CIR, or CBS per interface or per queue, can be applied.
Out of Profile DSCP Assignments , this button opens up the DSCP Map screen. (see figure 4-41):
