User’s Manual of WGSD-1022/WGSD-8000

- 153 –

5. COMMAND STRUCTURE

The WGSD-Switch is a managed Ethernet Switch that can be controlled by the RS-232 console interface, telnet interface, and

Web interface. This chapter describer how to configure the Switch through these interfaces.

When you are ready to configure the smart functions of the Switch, make sure you had connected the supplied RS-232 serial

cable to the RS-232 port at the front panel of your WGSW-24010 Switch and your PC.

5.1 Connect to PC’s RS-232 serial port

Hyper Terminal

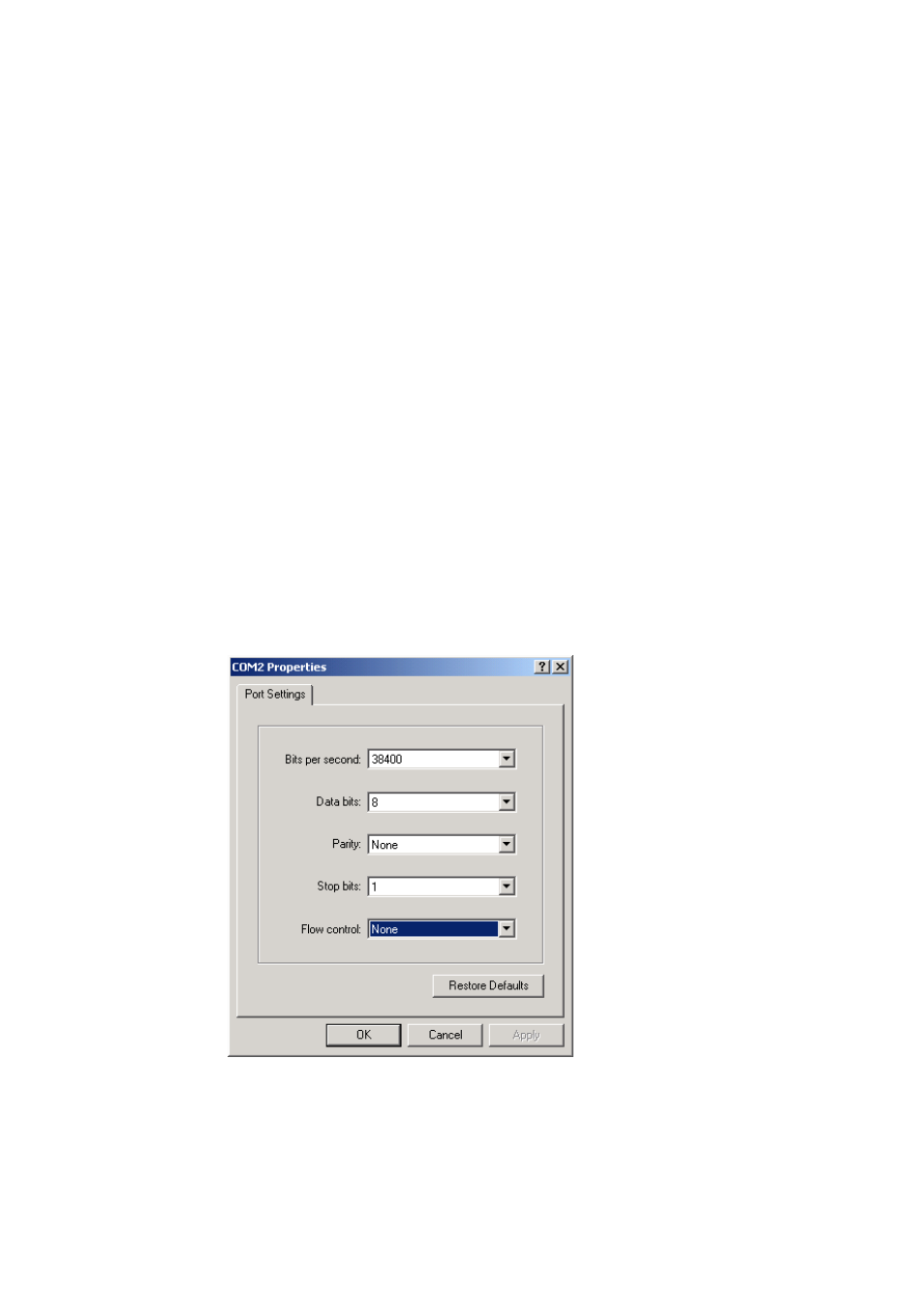

In Windows 98/2000/XP, launch “HyperTerminal”, create a new connection, and adjust settings as below:

Baud per second: 38400

Data

bits: 8

Parity:

None

Stop

bits: 1

Flow

Control: None

5.2 Using the CLI

5.2.1 CLI Command Modes
