Planet Technology WGSD-8000 User Manual
Page 74
User’s Manual of WGSD-1022/WGSD-8000
- 74 –
13.
Please
press
"Save Config"
to save current setting.
■

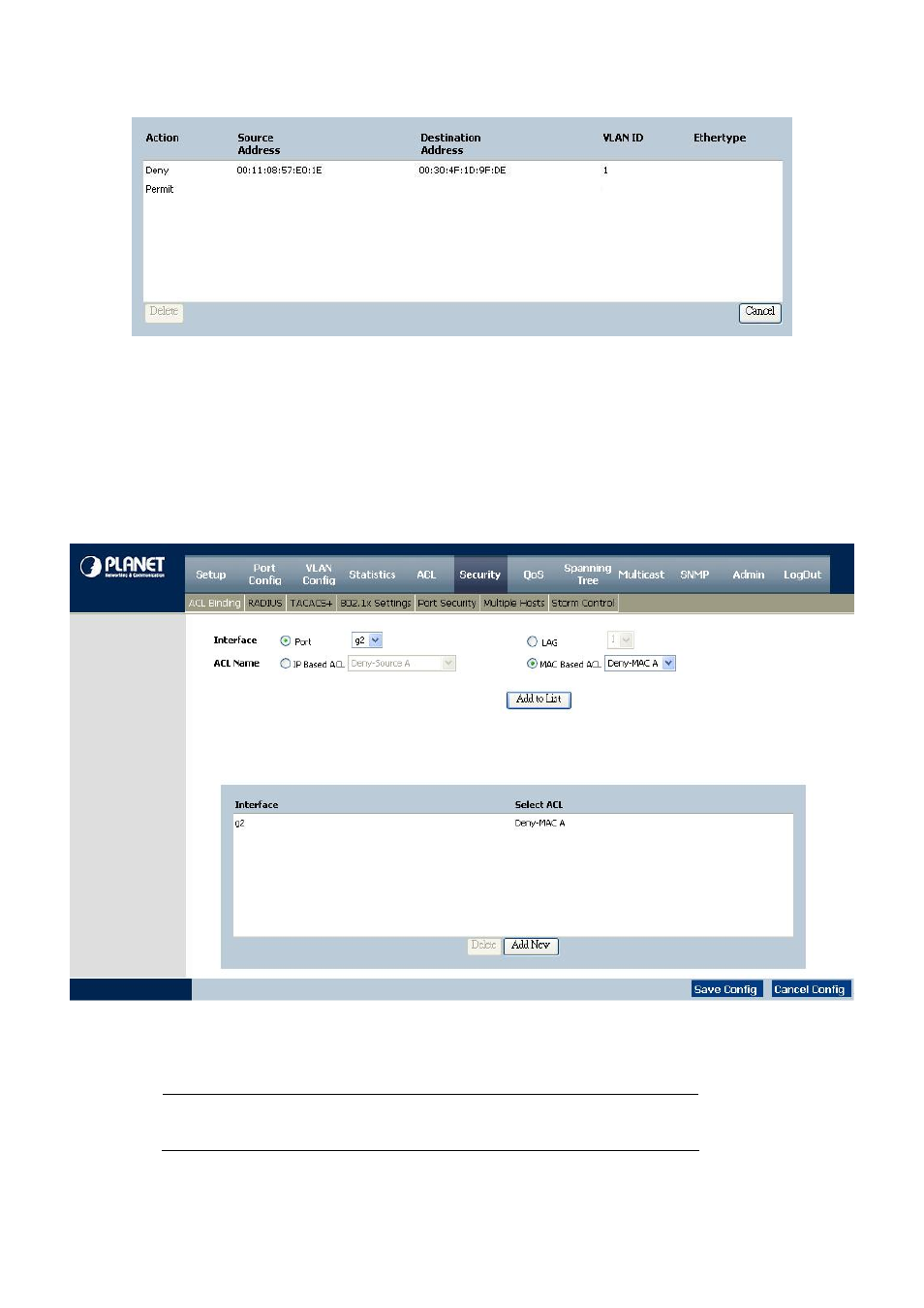

Binding the MAC ACL to specify interface
14. Select
“Security” \”ACL Binding” in the Menu bar.
15. Choose Port “g2” from Interface item.
16. Choose
“MAC Based ACL”, select ACL name with “Deny-MAC A” – that we had been created at step-1. Click “Add
to List
" button, the entry would be show at the table.
17.
Please
press
"Save Config"
to save current setting.
#Note:
If action "shutdown" is selected, the port will be force disabled
