Chapter 2. Controls and Indicators
The controls and the indicators for the 3494 are described in this chapter.
The 3494 is controlled through the use of the operator panel
1
(see Figure 21) on
the front of the control unit frame. The Convenience Input⁄Output Station feature
2
is also on the front of the control unit framenext to the operator panel, if it is
installed. The handles
3
for opening the doors on the front of the frames are
located next to the door locks
4
. The library manager is in the rear of the control
unit frame. The tape subsystem controls are on the front of the drives inside the
control unit frame and drive unit frame.
Note: Two keys are supplied with the 3494. One key is used by the operators and
service personnel to open the front doors on the library. The other key is for
use by service personnel to open the doors on the back of the library.
A
0
6C
00
33

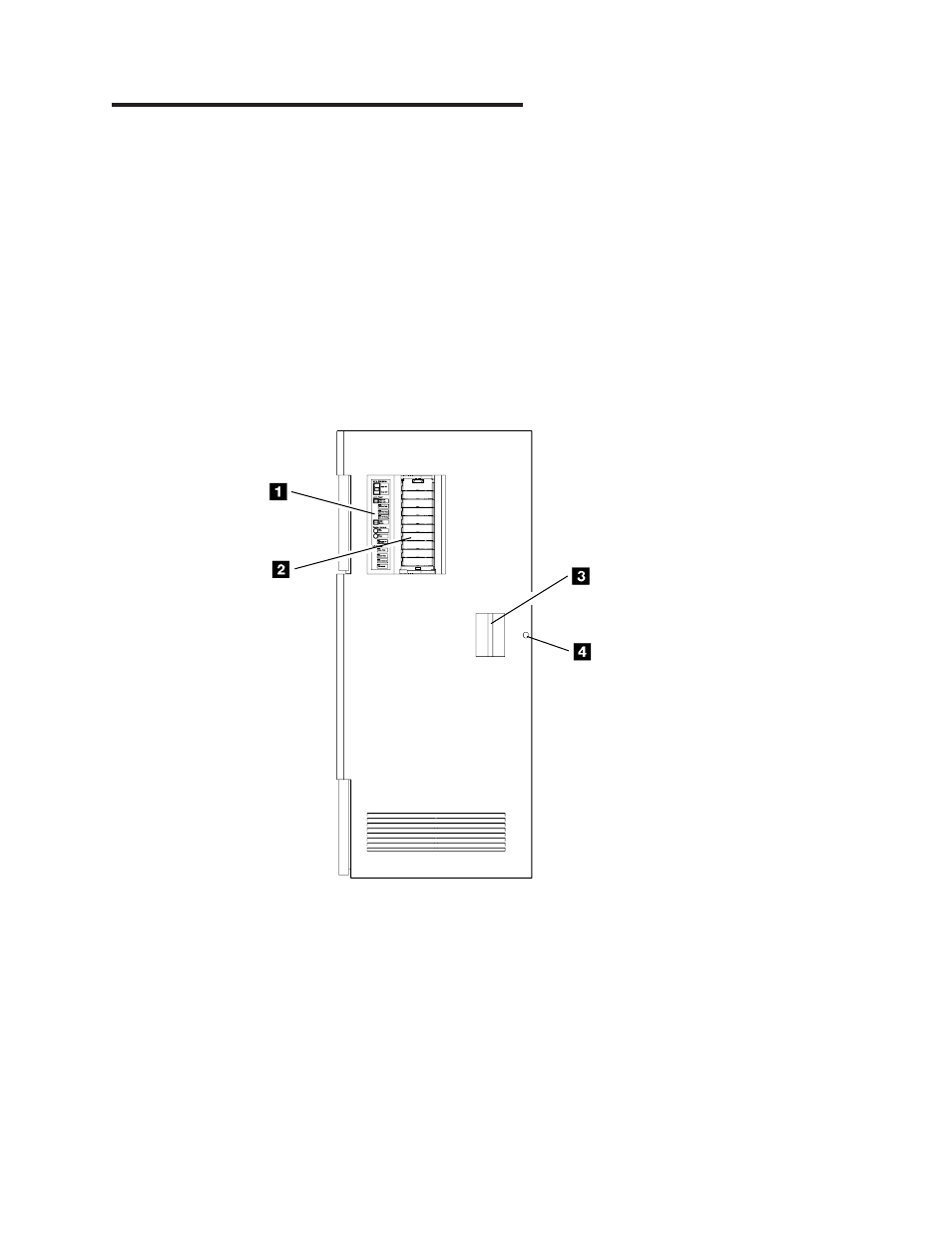

Figure 21. Control Unit Frame Front Door
© Copyright IBM Corp. 1993, 1999 31
