Reserved Cartridge Storage Cells
The library reserves certain cells within the library for functions that the operator
does not actively control.
In non-high availability models these locations are Error Recovery Cells 1 A 1 (1 A 3
instead of 1 A 1 if the optional Dual Gripper feature is installed) and CE cartridge
cell 1 A 20. If both 3490E and 3590 tape subsystems are present, CE cartridge 1 A
19 is also reserved. These are used for error recovery cell and for service
cartridges. In high availability models, these locations are Error Recovery Cell 1 A 1
and 1 A 2 or 1 A 3 and 1 A 4 if the Dual Gripper Feature is installed. CE cartridge
cells are in the service bays.
Cartridge Storage Capacity
Table 2 shows the cartridge capacity of each frame.
Table 2. Magstar 3494 Cartridge Capacity
Model or Frame
Without
Dual Gripper
With
Dual Gripper
Model L10, L12, or L14 240 (see notes 1, 4, 5,
and 6)
216 (see notes 2, 4, 5,
and 6)
Model S10, FC 5400 400 360
A
06
C
0047
2
A B
2
3
4
5
6

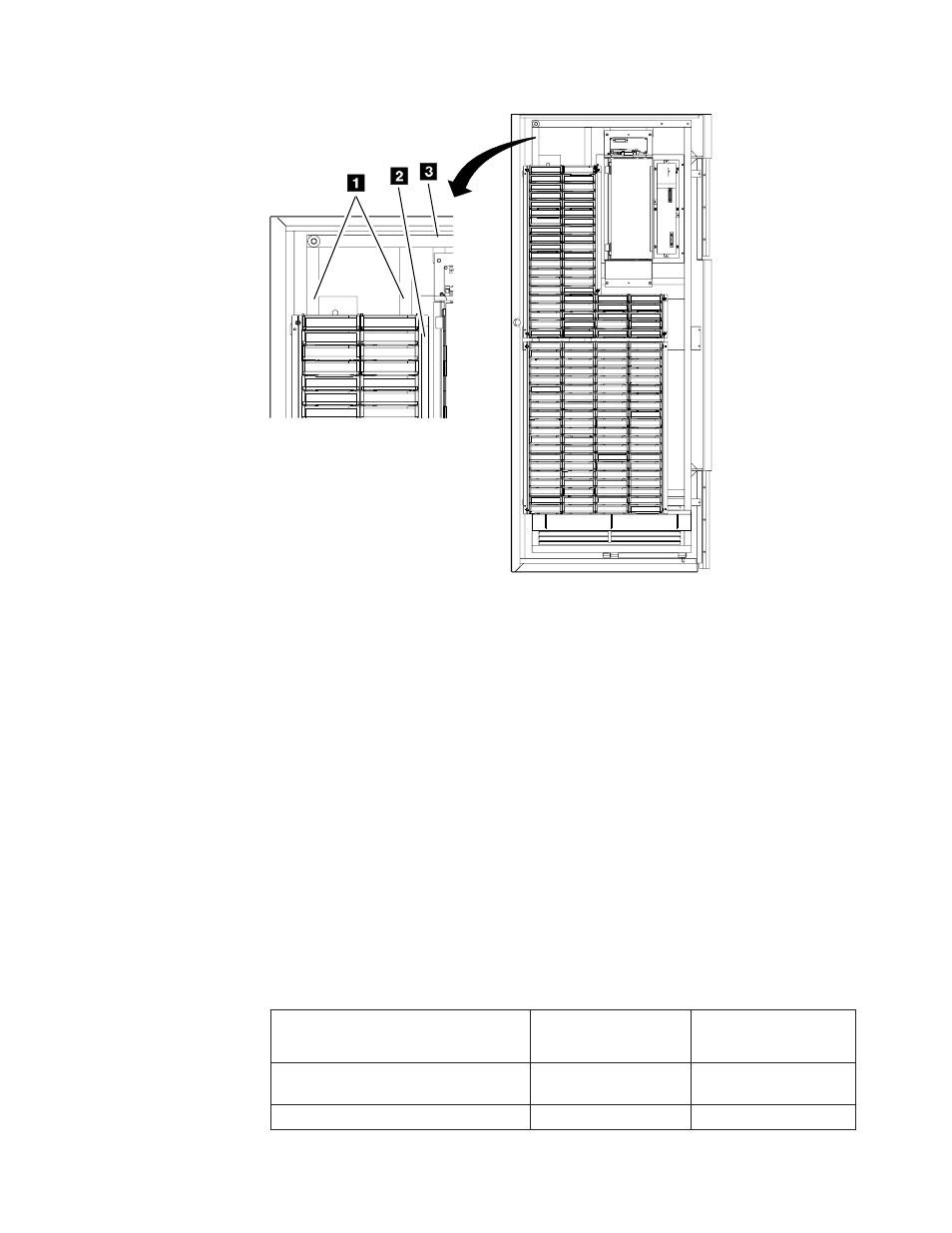

Figure 20. Cartridge Storage Cell Labeling
