Section 27.3.2.8, “pwm, Boundary cases, 8 pwm boundary cases – Freescale Semiconductor ColdFire MCF52210 User Manual
Page 495

Pulse-Width Modulation (PWM) Module
MCF52211 ColdFire® Integrated Microcontroller Reference Manual, Rev. 2
Freescale Semiconductor
27-21

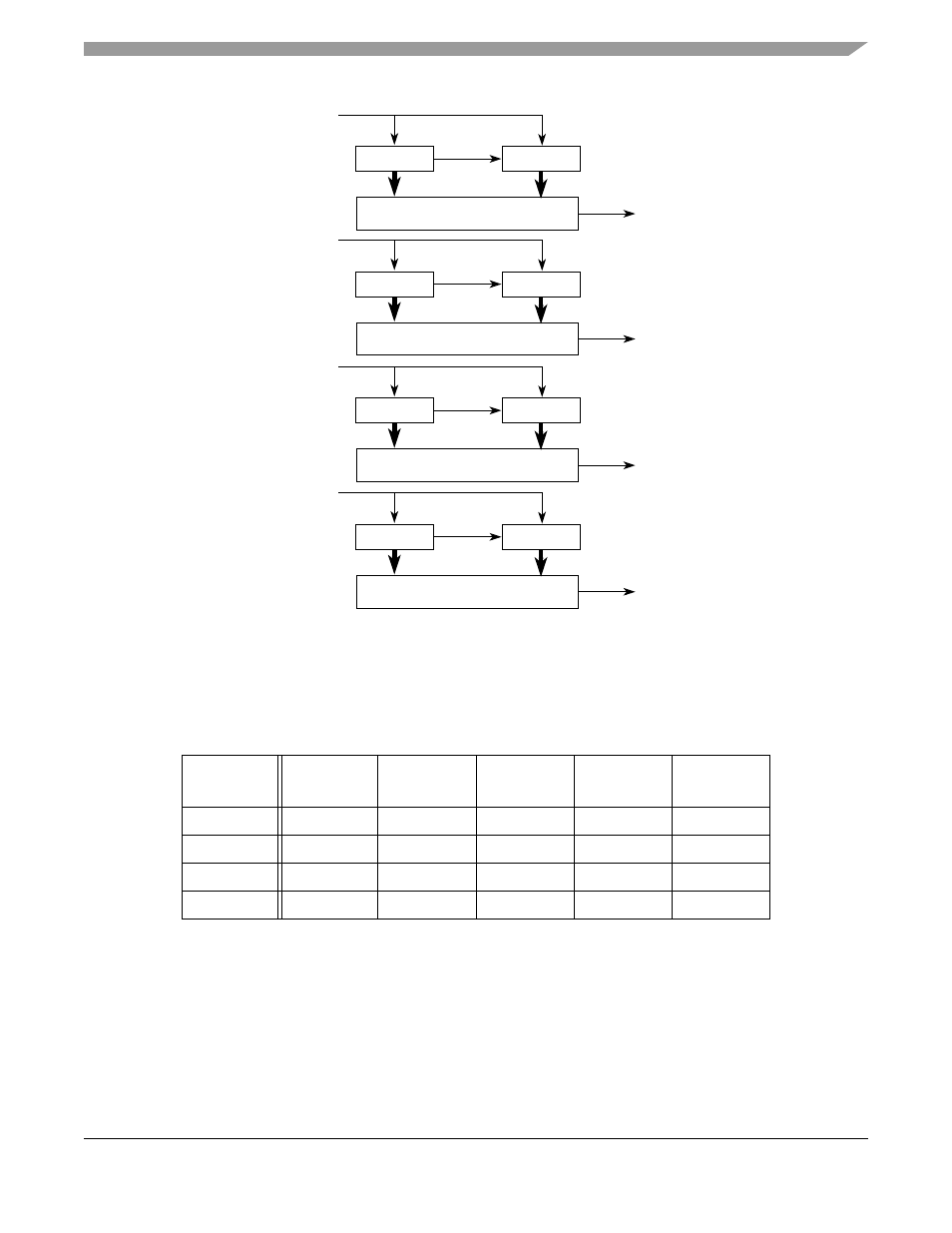

Figure 27-20. PWM 16-Bit Mode
Left- or center-aligned output mode can be used in concatenated mode and is controlled by the low order
CAEn bit. The high order CAEn bit has no effect. The table shown below is used to summarize which
channels are used to set the various control bits when in 16-bit mode.
27.3.2.8
PWM Boundary Cases
The following table summarizes the boundary conditions for the PWM regardless of the output mode (left-
or center-aligned) and 8-bit (normal) or 16-bit (concatenation):
Table 27-15. 16-bit Concatenation Mode Summary
CONnn
PWMEn
PPOLn
PCLKn
CAEn
PWMn
Output
CON67
PWM7
PPOL7
PCLK7
CAE7
PWMOUT7
CON45
PWM5
PPOL5
PCLK5
CAE5
PWMOUT5
CON23
PWME3
PPOL3
PCLK3
CAE3
PWMOUT3
CON01
PWME1
PPOL1
PCLK1
CAE1
PWMOUT1
PWMCNT4
PWMOUT5
High
Low
Period/Duty Compare
PWMCNT5
Clock Source 5
PWMCNT2
PWMOUT3
High
Low
Period/Duty Compare
PWMCNT3
Clock Source 3
PWMCNT0
PWMOUT1
High
Low
Period/Duty Compare
PWMCNT1
Clock Source 1
PWMCNT6
PWMOUT7
High
Low
Period/Duty Compare
PWMCNT7
Clock Source 7
