FUJITSU PRIMERGY BX600 S3 - Manual (Page 99)

BX600 S3 Operating Manual 99
Ethernet I/O Blades Installing an I/O Blade

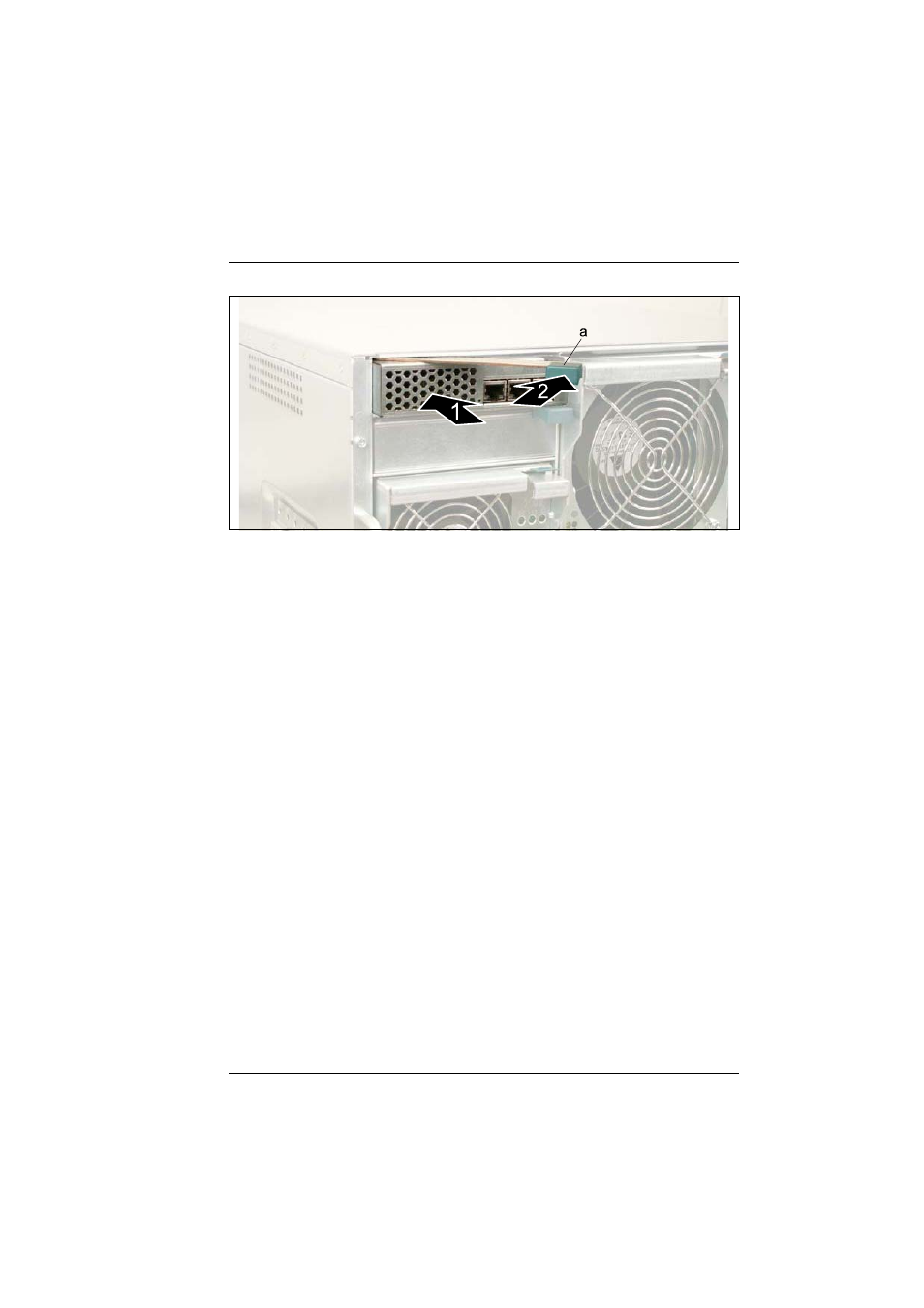

Figure 49: Inserting the I/O blade (a = green touch point)
Ê Push (1) the I/O blade as far as possible into the desired slot (here slot 2).
Ê Swing up (2) the eject handle (a) of the I/O blade until the locking
mechanism of the I/O blade engages.
Removing the I/O Blade
The I/O blade is removed in the same way as the dummy module (see
“Removing the Dummy Module” on page 96 ).
V
CAUTION!
Read the safety information and the information on handling electro-
static-sensitive components in the
section “Components With Electro-
static-Sensitive Devices” on page 25 .
If you remove the I/O blade and do not replace it with a new one, you must insert
a dummy module in the empty slot to ensure cooling, to comply with the appli-
cable EMC regulations (regulations on electromagnetic compatibility) and for
fire protection.
Make sure that the dummy module engages in the slot correctly.
