130 Operating Manual BX600 S3
Notes on power cabling Power Supply Concept
©
c
ogn
it a
s .
G
e
s e lls
c h ft
f ü r T
e c h
ni
k -D
o k u m
e
n ta
ti on m
b
H
20
09
P
fad
:
H
:\ A
p
ri l\ P
R
IM
E
R
GY
_R
eb
rand
in
g
\v
o
n W
a lt er
\b
x 600
_s
3_
ba\
B
X
6
0 0 S
3
_ e n
\b
la
d
e -u
s.
k1
2
Two basic units with two UPSs

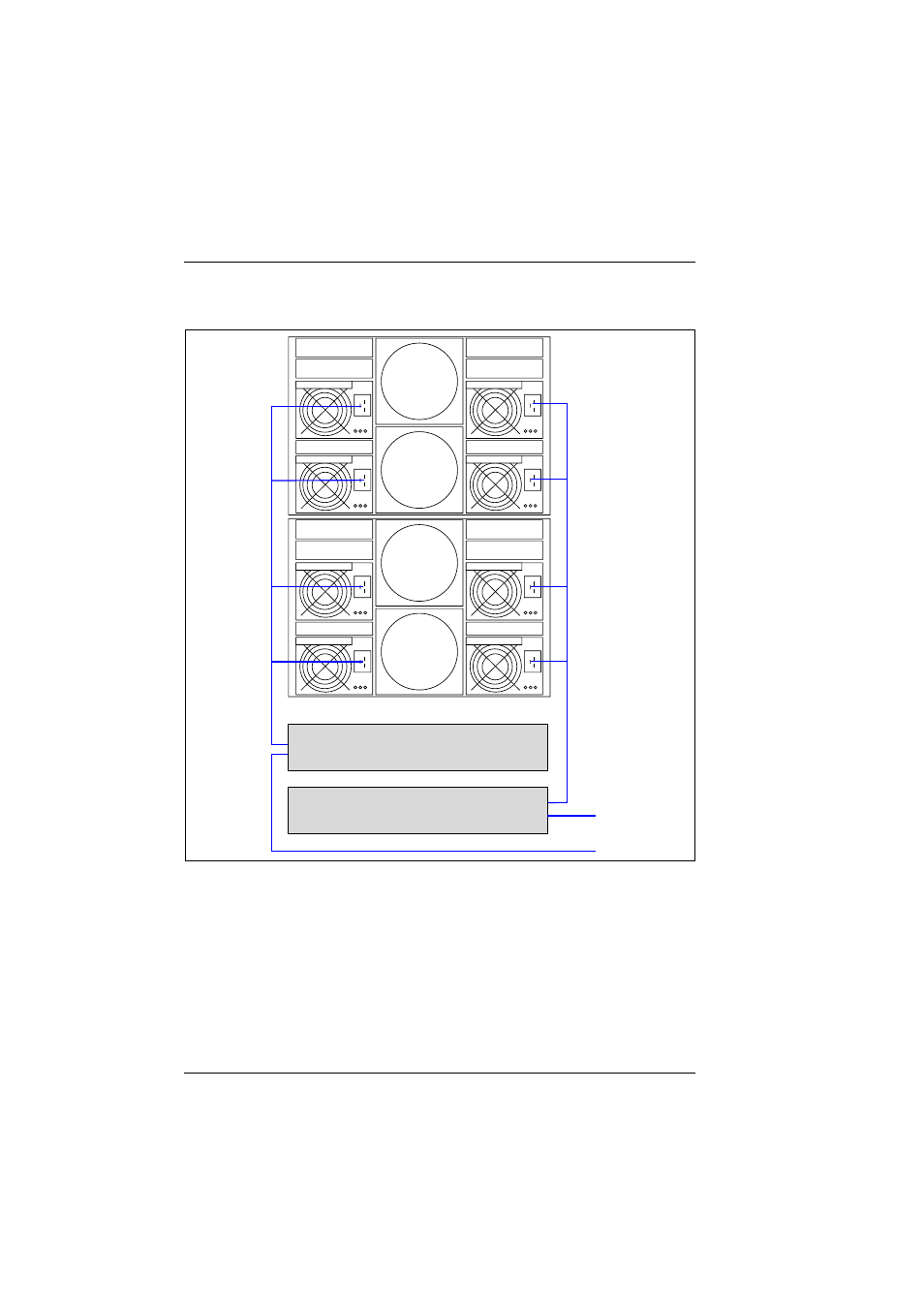

Figure 74: Two basic units with two UPSs
You can connect two basic units to two UPS devices as shown in figure 74 . In
this case you must take into account that each UPS must provide approximately
10240 Watts to power both basic units, if required. Therefore each UPS must
provide sufficient power. You will also need to make sure that the alert
mechanism of both UPS solutions notifies both servers in the event of a failure.
UPS Single-phase
or
3-phase input
UPS
