BX600 S3
Operating Manual
103
Fibre Channel I/O Blades
4/4 Gbit FC Switch Blade SW4016 4D
Control and Connection Panel

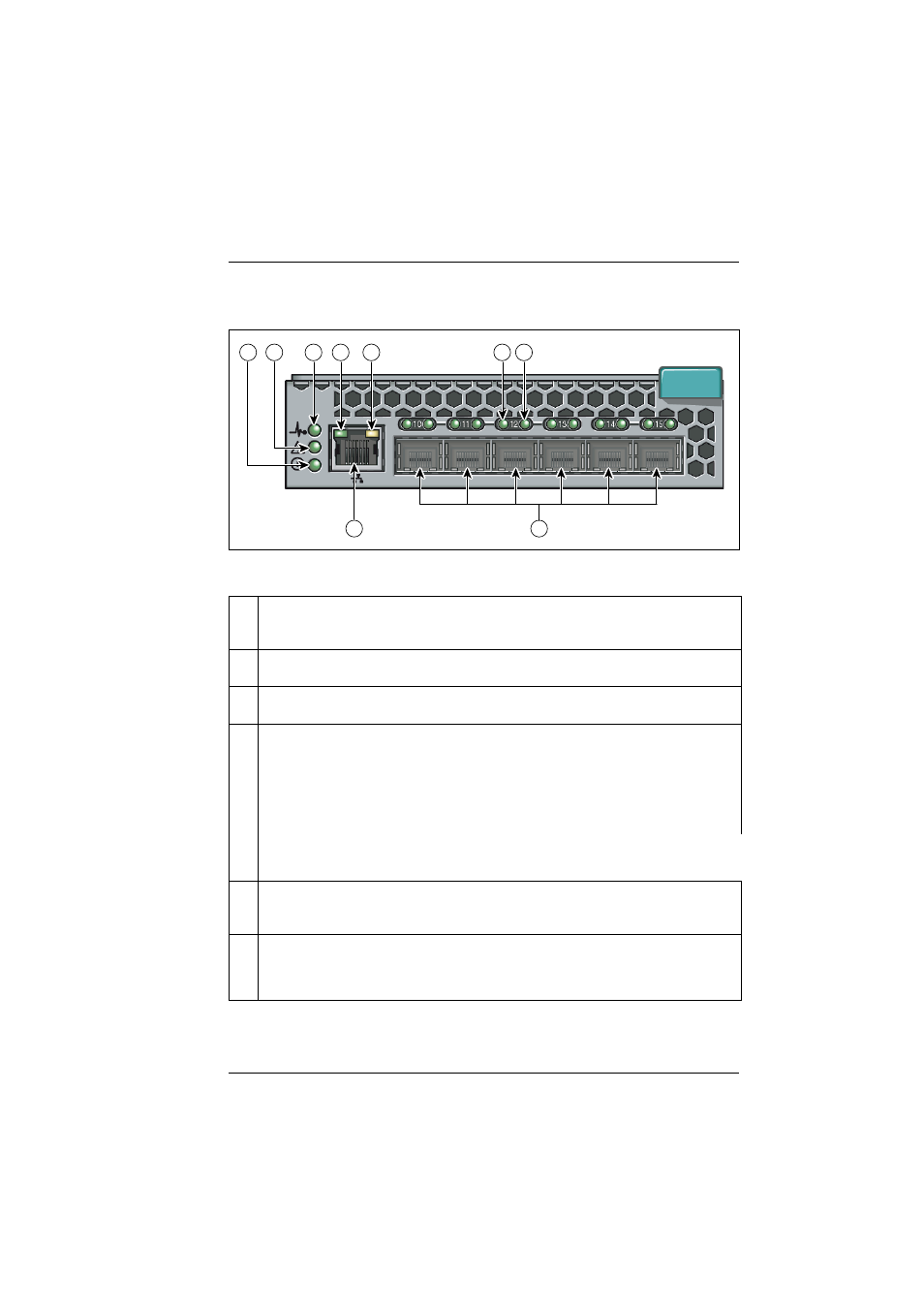

Figure 51: Control and connection panel of the 4/4 Gbit Fibre Channel Switch Blade
1
External FC connection (6x)
socket for LWL or SWL FC SFP module (see
section “Fibre Channel SFP Module” on
2
RJ45 LAN connection
with two integrated status LEDs (see items 6 and 7)
3
FC switch blade voltage status display (green LED)
lights up when the basic unit is switched on (12 V input voltage present).
4
FC switch blade status display (2-color LED)
Dark:
FC switch blade is not operating
Lights green:
FC switch blade is operating
Lights amber:
Boot phase; one or more ports are off-line
Blinks amber/green:
Warning: a fault has occurred.
I
The LED might also blink while testing.
5
Management blade display (2-color LED)
Lights up when the FC switch blade is being controlled directly via the management
blade user interface.
6
LAN speed display (green LED)
Dark:
LAN transfer rate 10 Mbit/s
Lights green:
LAN transfer rate 100 Mbit/s
6
5
4
3
7
8 9
1
2
