Gbit Ethernet LAN Switch Blade (SB9F)
12x1 Gbit
The Gbit Ethernet LAN Switch Blade (SB9F) 12 x 1 Gbit supports layer 2/3/4
functionality and offers the following connections:
–
30 internal 1-Gbit downlink ports to the server blades
–
12 external 1-Gbit uplink ports via RJ45 connectors
I
The Gbit Ethernet LAN Switch Blade (SB9F) must only be installed in
slots NET1 and NET2, see
figure “Slots for the LAN I/O blades” on
.
The number of ports that are available in practice depends on the
onboard LAN controllers of the installed server blades.

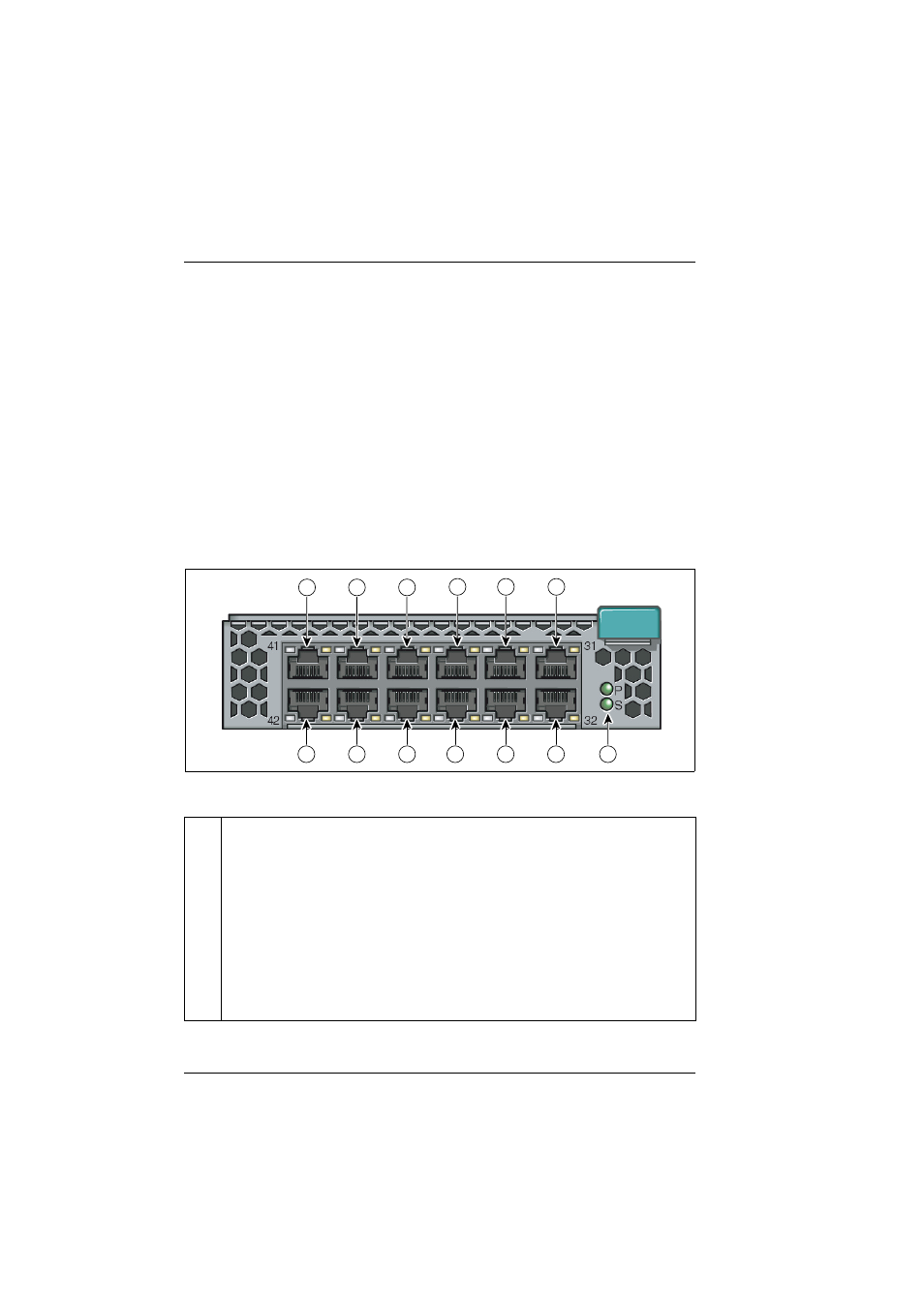

Figure 36: Gbit Ethernet LAN Switch Blade (SB9F) 12 x 1Gbit
1-12 1-Gbit uplink LAN connectors (with two integrated LAN status LEDs each)
LED A:
LAN transfer rate (bicolor LED)
Glows orange:
Port link at 1 Gbit/s
Glows green:
Port link at 100 Mbit/s
Dark:
Port link at 10 Mbit/s
LED B:
LAN link indicator (yellow LED)
Glows yellow:
Network link
Blinks yellow:
Network link activity
Dark:
No network link or port disabled
12
2
4
6
8
10
11
9
7
5
3
1
1
3
