BX600 S3
Operating Manual
109
Fibre Channel I/O Blades
Port Assignment
9.6
Port Assignment
Slots NET3 and NET4 on the back of the basic unit can be fitted with Fibre
Channel I/O blades. The Fibre Channel I/O blade in the NET3 slot is connected
to port A of the installed Fibre Channel daughter cards. The Fibre Channel I/O
blade in the NET4 slot is connected to port B of the installed Fibre Channel
daughter cards.

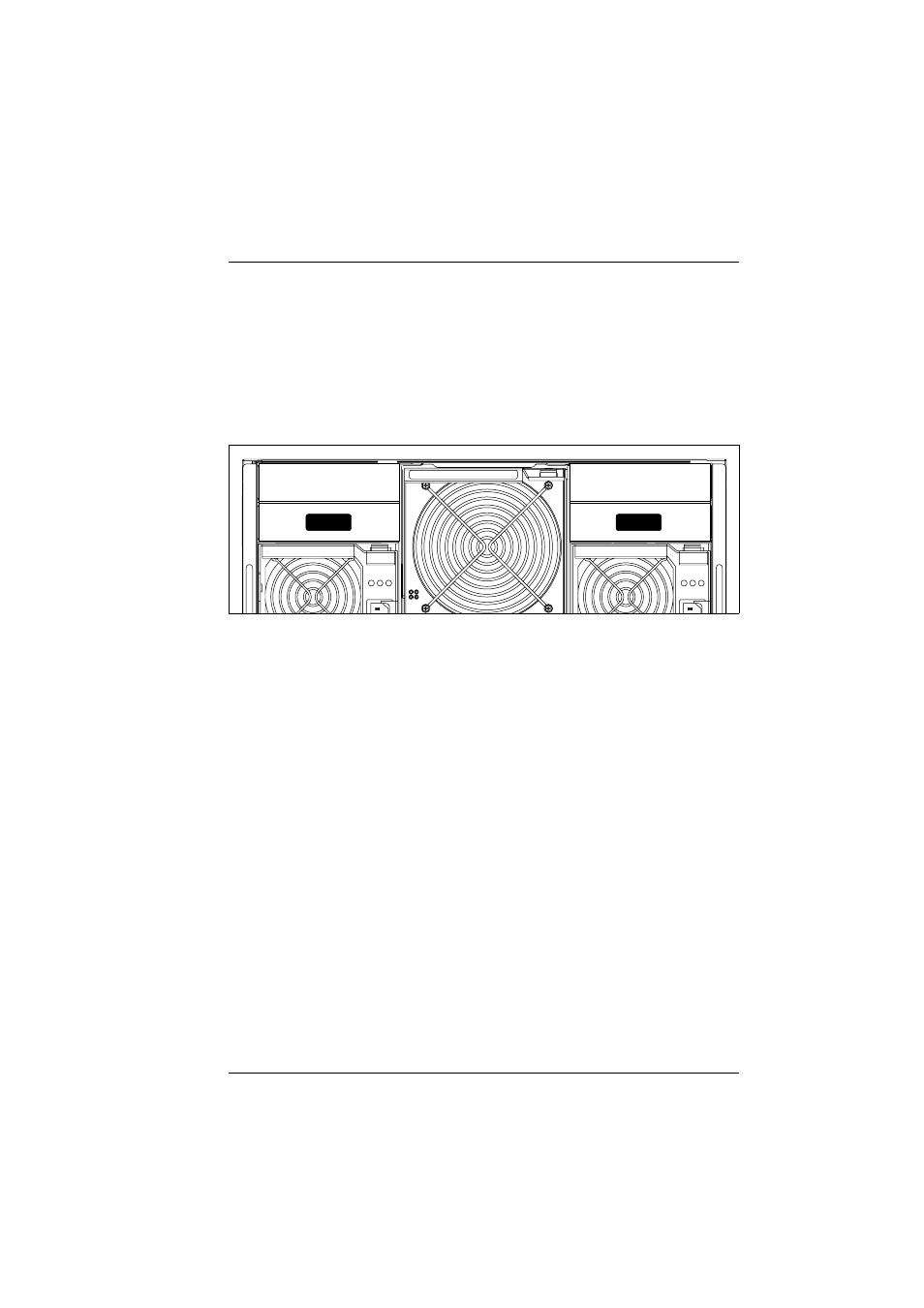

Figure 57: Slots for Fibre Channel I/O blades
The installation of two FC switch blades enables redundant Fibre Channel con-
nections to be provided for the server blades.
V
CAUTION!
●
FC switch blades must always be installed in slot NET3 first. This
ensures that port A of the FC daughter cards is connected if
redundant Fibre Channel connections are not used.
●
If Gigabit Ethernet daughter cards are installed in the server blades,
LAN switch blades (see
) or Ethernet pass-thru blades (see
) must be installed in slots NET3 and NET4.
Simultaneous operation of Ethernet blades and Fibre Channel blades
in slots NET3 and NET4 is not permitted.
NET4
NET3
