FUJITSU PRIMERGY BX600 S3 - Manual (Page 78)

78 Operating Manual BX600 S3
Adding a Server Blade to the System Server Blades
©
c
ogn
it a
s .
G
e
s e lls
c h ft
f ü r T
e c h
ni
k -D
o k u m
e
n ta
ti on m
b
H
20
09
P
fad
:
H
:\ A
p
ri l\ P
R
IM
E
R
GY
_R
eb
rand
in
g
\v
o
n W
a lt er
\b
x 600
_s
3_
ba\
B
X
6
0 0 S
3
_ e n
\b
la
d
e -u
s.
k0
7

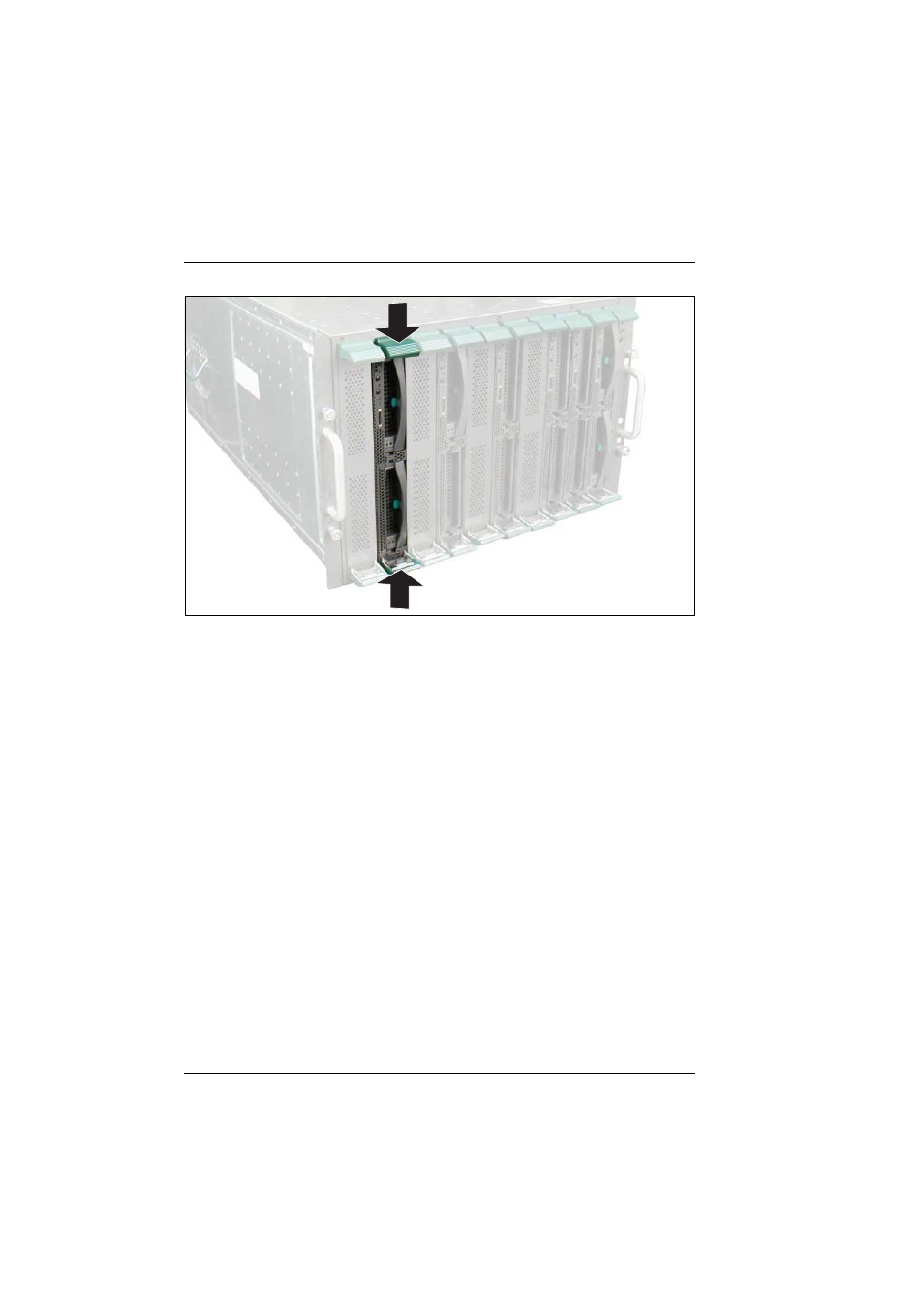

Figure 33: Final engaging of the locking mechanism
Ê Press the eject handles to enable the locking mechanism to engage fully.
Removing the Server Blade
The server blade is removed in the same way as the dummy module (see
“Removing the Dummy Module” on page 74 ).
V
CAUTION!
Read the safety information and the information on handling electrosta-
tic-sensitive components in the
section “Components With Electrostatic-
Sensitive Devices” on page 25 .
When you remove the server blade and do not replace it with a new one, you
must insert a dummy module in the empty slot. Make sure that the dummy
module engages in the slot correctly.
