Connectors on the back of the basic unit

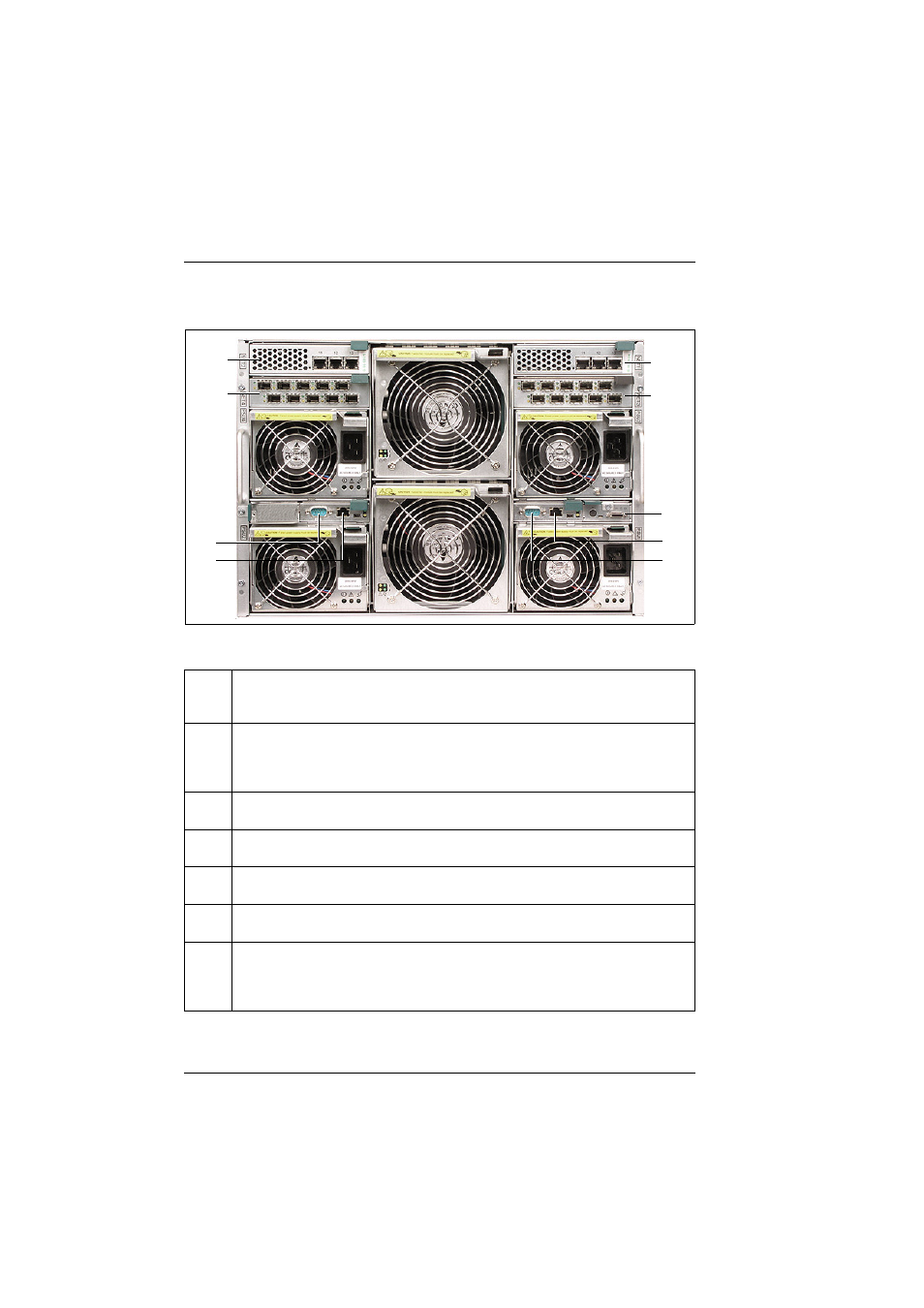

Figure 9: Connectors for external devices
NET1,
NET2
Connectors of various types I/O blades, connected to the server blades on-board
NICs. These I/O blades can be Ethernet switch blades or Ethernet pass-thru blades,
see
“Ethernet LAN I/O Blades” on page 79
NET3,
NET4
Connectors of various types I/O blades, connected to the optional I/O modules of the
server blades. These I/O blades can be Ethernet or Fibre Channel switch blades or
pass-thru blades, see
“Ethernet LAN I/O Blades” on page 79
and
.
3
Serial port connector on management blade 2 (see also
).
Standard serial port, management communication port.
4
LAN connector on management blade 2 (see also
). LAN
port, RJ45, 10Mb management LAN.
5
Serial port connector on management blade 1 (see also
).
Standard serial port, management communication port.
6
LAN connector on management blade 1 (see also
). LAN
port, RJ45, 10Mb management LAN.
7
KVM connector on rear KVM blade, which offers VGA, PS2 keyboard and mouse
support via a special cable (see
below). The Adv. KVM bladeand the digital
KVM blade also offers a LAN connectors (RJ45, 10 Mb) (see also
NET2
3
4
7
6
5
NET1
NET3
NET4
