128 Operating Manual BX600 S3
Notes on power cabling Power Supply Concept
©
c
ogn
it a
s .
G
e
s e lls
c h ft
f ü r T
e c h
ni
k -D
o k u m
e
n ta
ti on m
b
H
20
09
P
fad
:
H
:\ A
p
ri l\ P
R
IM
E
R
GY
_R
eb
rand
in
g
\v
o
n W
a lt er
\b
x 600
_s
3_
ba\
B
X
6
0 0 S
3
_ e n
\b
la
d
e -u
s.
k1
2
Single basic unit with a single UPS

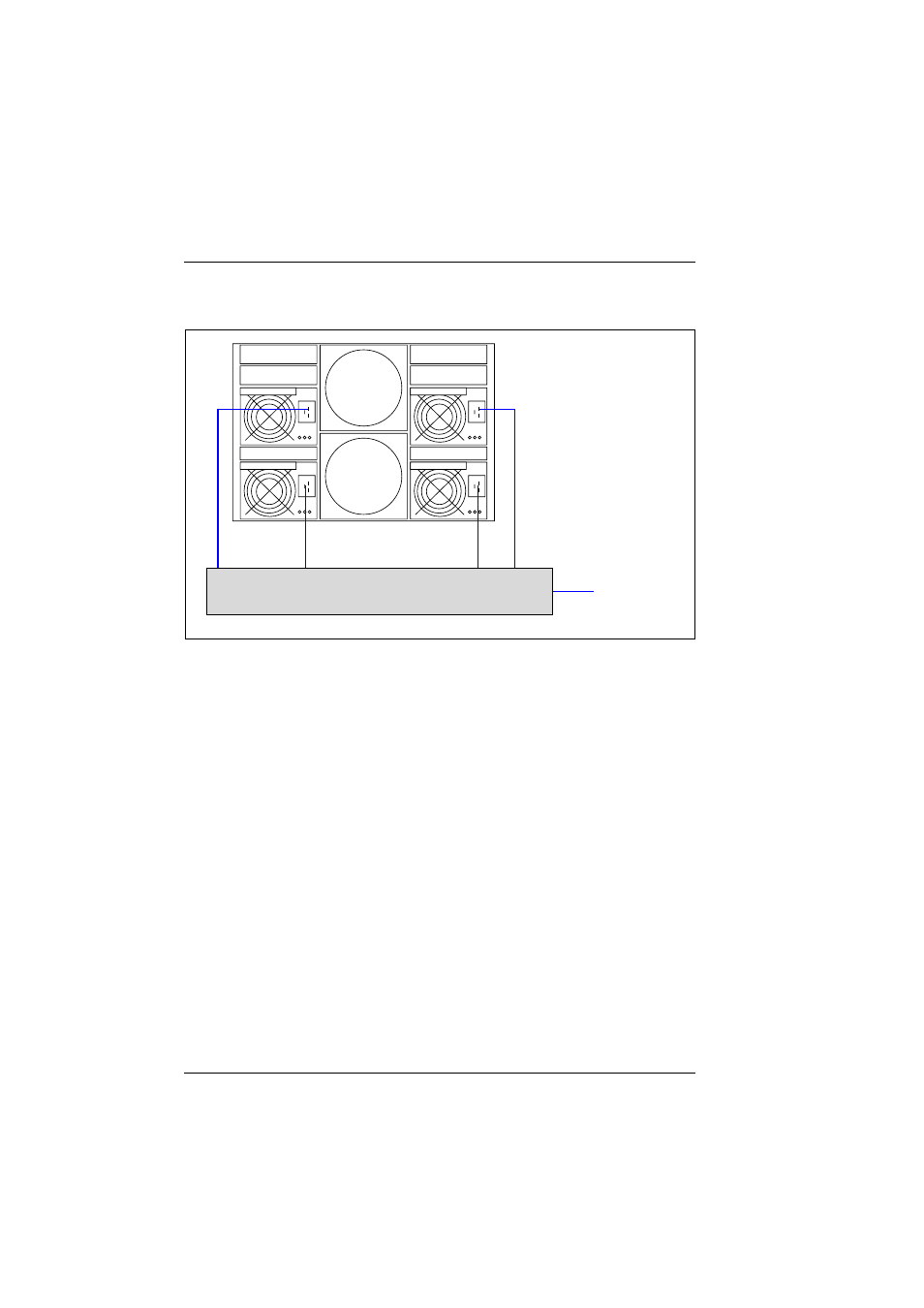

Figure 72: Single basic unit with a single UPS
A fully equipped BX600 S3 basic unit populated with four power supply units
requires approximately 5120 Watts (power factor 0.96). Therefore you need a
UPS with sufficient output to power a BX600 S3 basic unit.
I
Alternatively, you can connect the redundant power supply units (PSU3
and PSU4) directly to the mains.
UPS
Single-phase
or
3-phase input
