BX600 S3 Operating Manual 93
Ethernet I/O Blades Port Assignment
Configuration with Ten 2-way Server Blades, each with 6 Onboard LAN
Ports
In a configuration with Gbit Ethernet LAN Switch Blades (SB9F) 12 x 1 Gbit and
BX620 S4 server blades, you can implement a total of 30 redundant connec-
tions to the onboard LAN controllers of the server blades. The following figure
illustrates the port assignment for this type of server blade configuration.

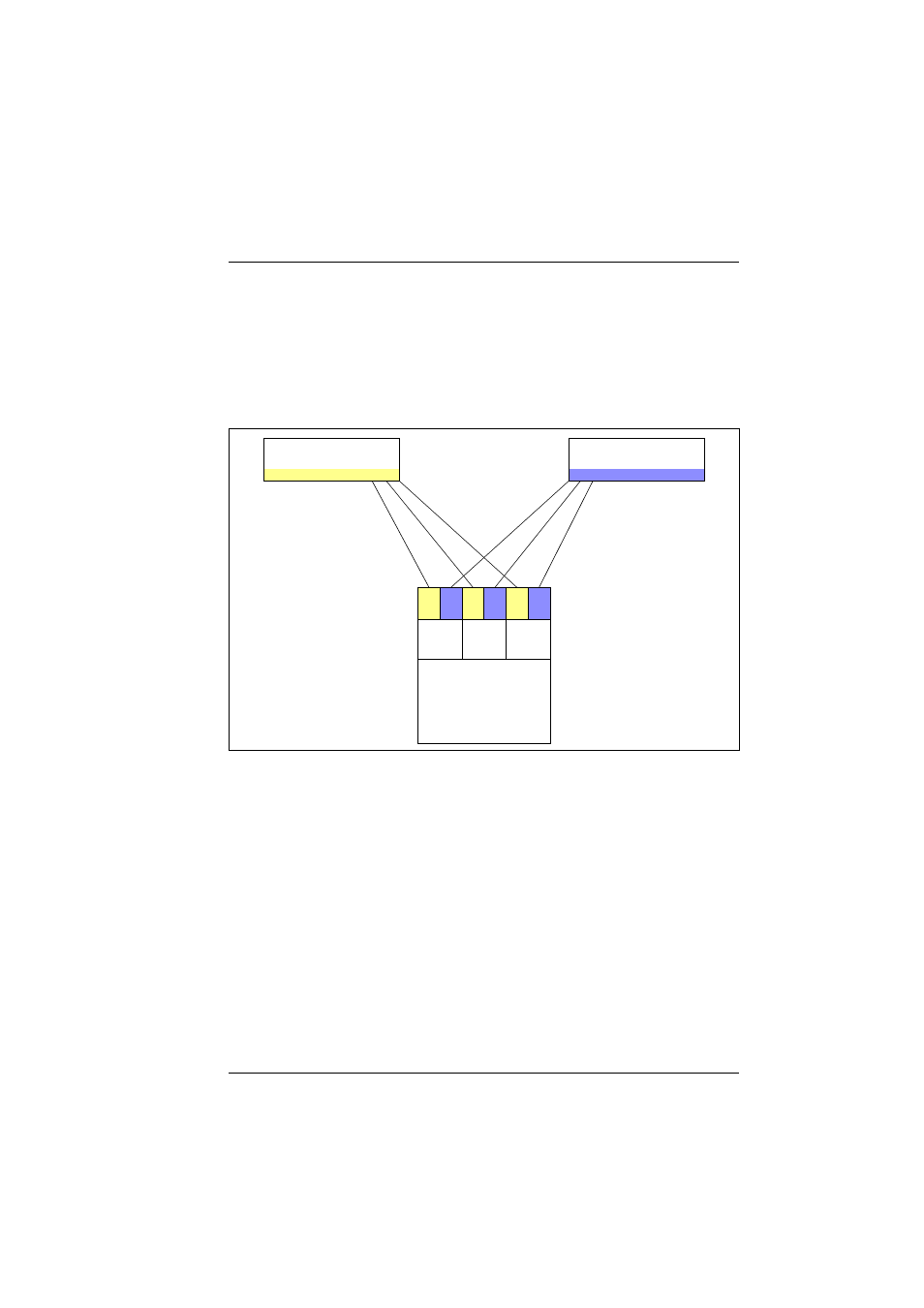

Figure 42: LAN port assignment with Switch Blade SB97 – BX620 S4 Server Blade
I
The Gbit Ethernet LAN Switch Blade (SB9F) 12 x 1 Gbit must only be
installed in slots NET1 and NET2.
BX620 S4
A B A B A B
Switch Blade SB9F
NIC 1 NIC 2 NIC 3
NET1
Switch Blade SB9F
NET2
