BX600 S3 Operating Manual 107
Fibre Channel I/O Blades Fibre Channel SFP Module
9.5 Fibre Channel SFP Module
A Fibre Channel SFP module is required to connect an FC pass-thru blade port
to a Fibre Channel cable. If no cable is plugged in, the SFP module slots must
be fitted with a safety plug as shown in the figure below.

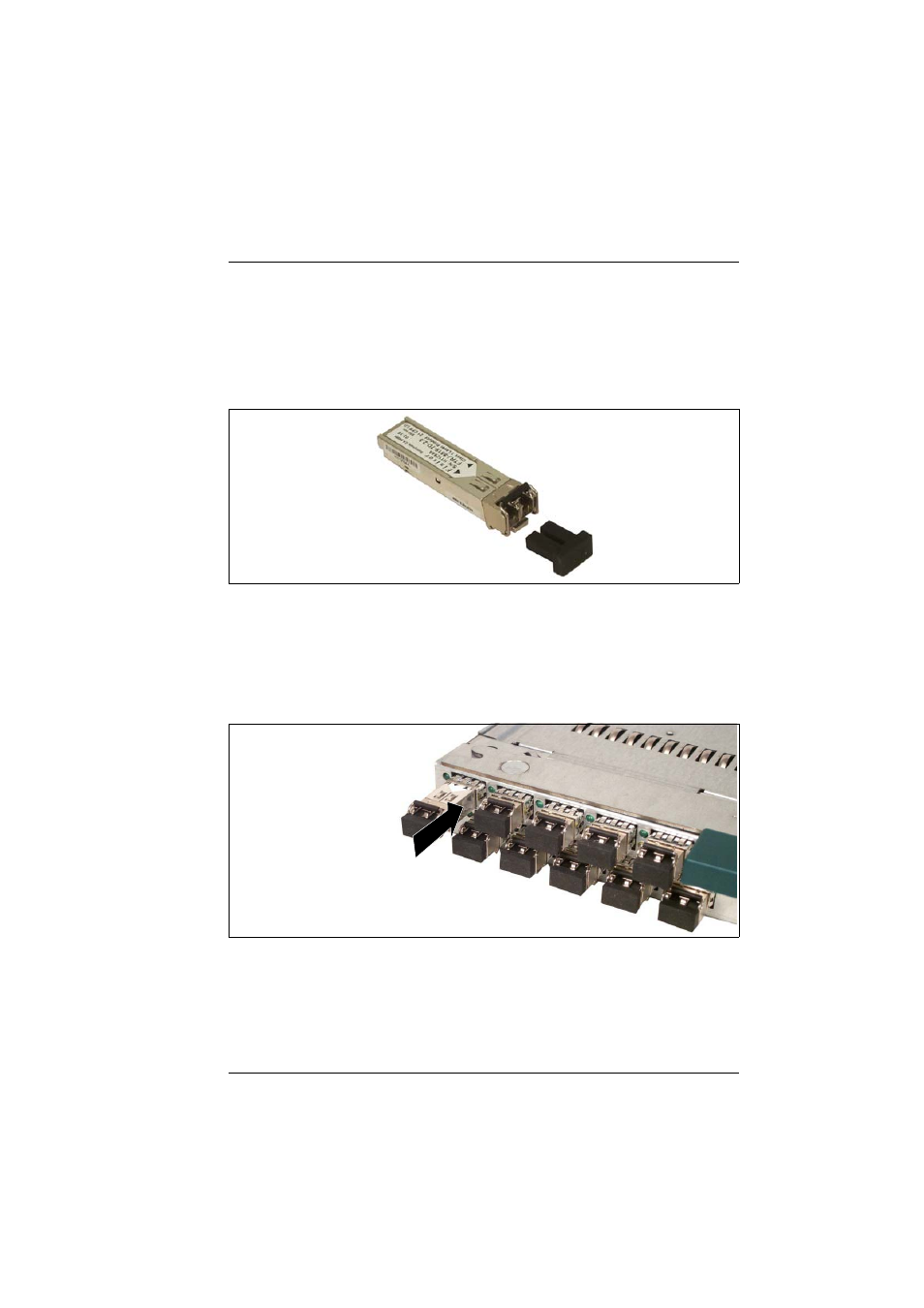

Figure 54: Fibre Channel SFP connector
Inserting a Fibre Channel SFP module
For each server blade connected via Fibre Channel, SFP modules must be
plugged into the appropriate FC pass-thru blade slots. For information on the
port assignment see
section “Port Assignment” on page 109 .
Figure 55: Inserting an SFP module
Ê Push the SFP with the label facing upward into the slot assigned to the
server blade to be connected.
