BX600 S3 Operating Manual 97
Ethernet I/O Blades Installing an I/O Blade

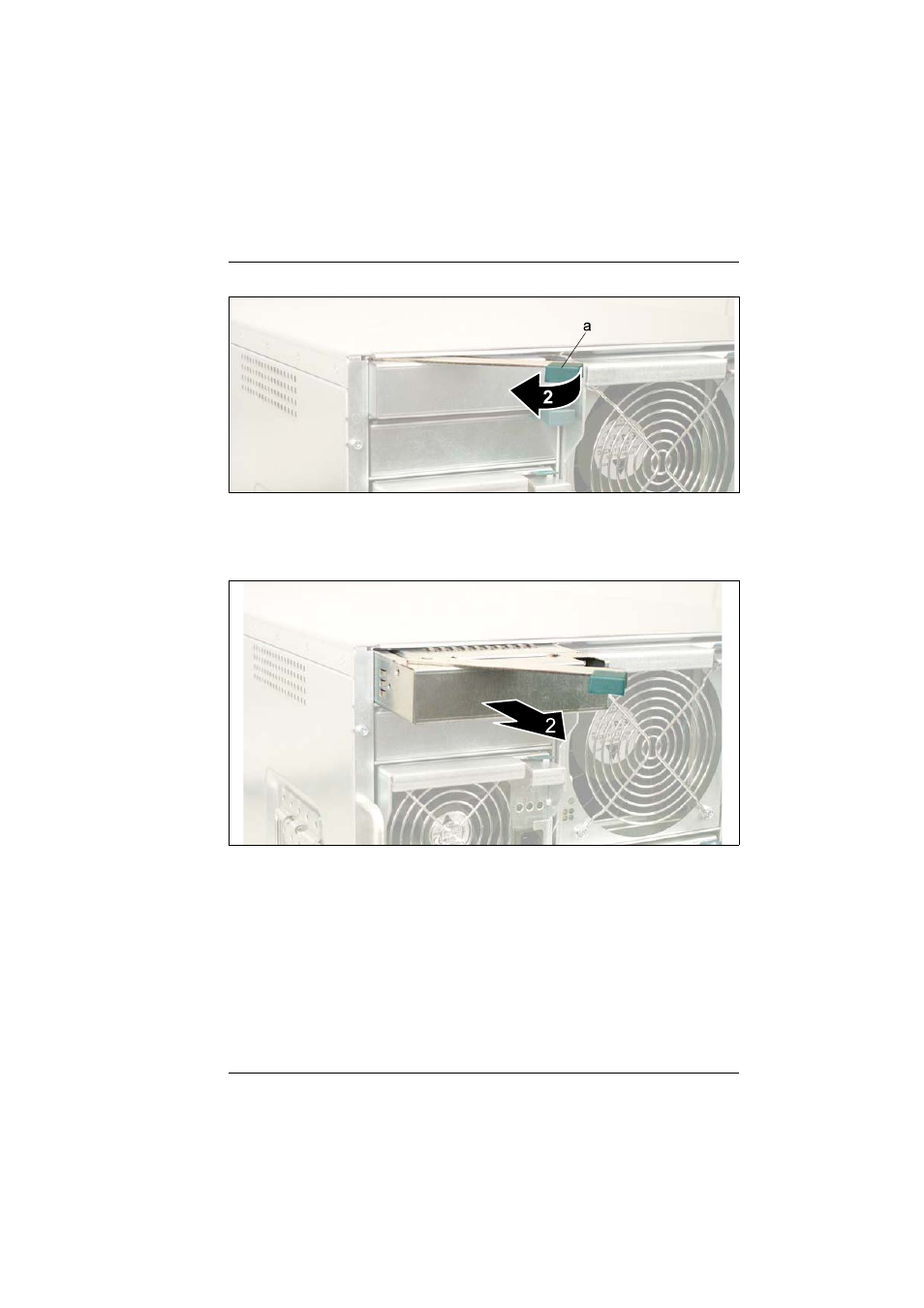

Figure 46: Disengaging the dummy module
Ê Swing the handle (a) in the direction of the arrow (2) until the locking
mechanism of the dummy module disengages.
Figure 47: Removing the dummy module
Ê Remove the dummy module from the slot (2).
V
CAUTION!
Keep the dummy module for future use. If you remove the I/O blade and
do not replace it with a new one, you must reinstall the dummy module.
Installation is the same as for the I/O blade (see “Inserting the I/O Blade” on
page 98 ).
