The Rear

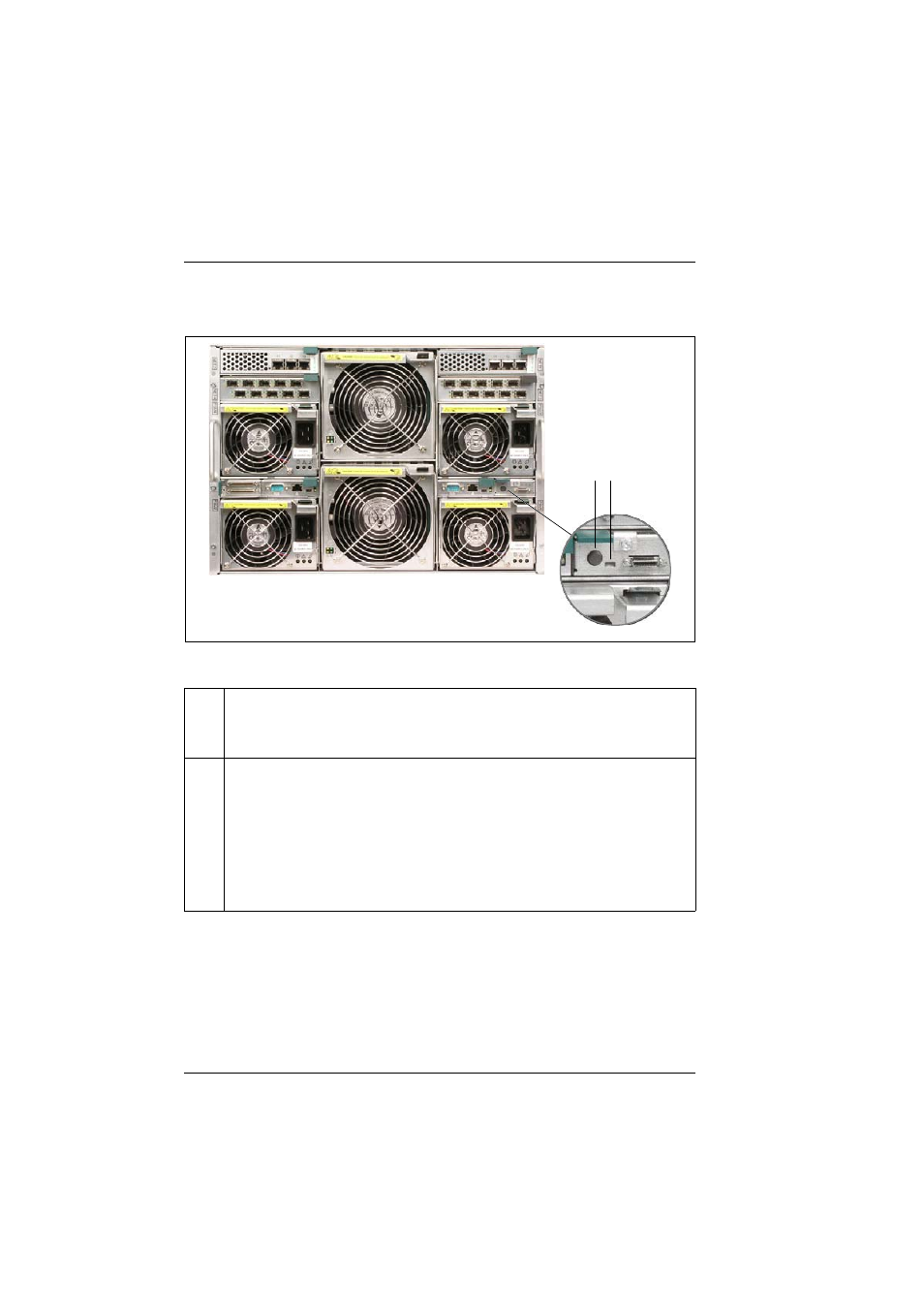

Figure 15: System operating and indicator elements on the rear
1
Rear identify button
1
Pressing this button lights up the rear identify indicator. The front and
rear identify indicators will be synchronized.
1
Figure
shows the operator panel of the standard KVM blade. For further information on this
KVM blade and on the adv. KVM blade, see
chapter “KVM Blade” on page 119
2
Rear identify/Fault indicator (green LED)
Lights green:
This system has been selected for identification
(identify LED is lit) by pressing the front or rear identify
button.
To deselect the system, press either of the identify
buttons again.
Blinks green:
SUM error: A malfunction has occurred in the system.
