BX600 S3 Operating Manual 73
Server Blades Fitting rules
7.1 Fitting rules
On the front of the PRIMERGY BX600 S3 basic unit are ten slots for server
blades (numbered 1 - 10 from left to right).

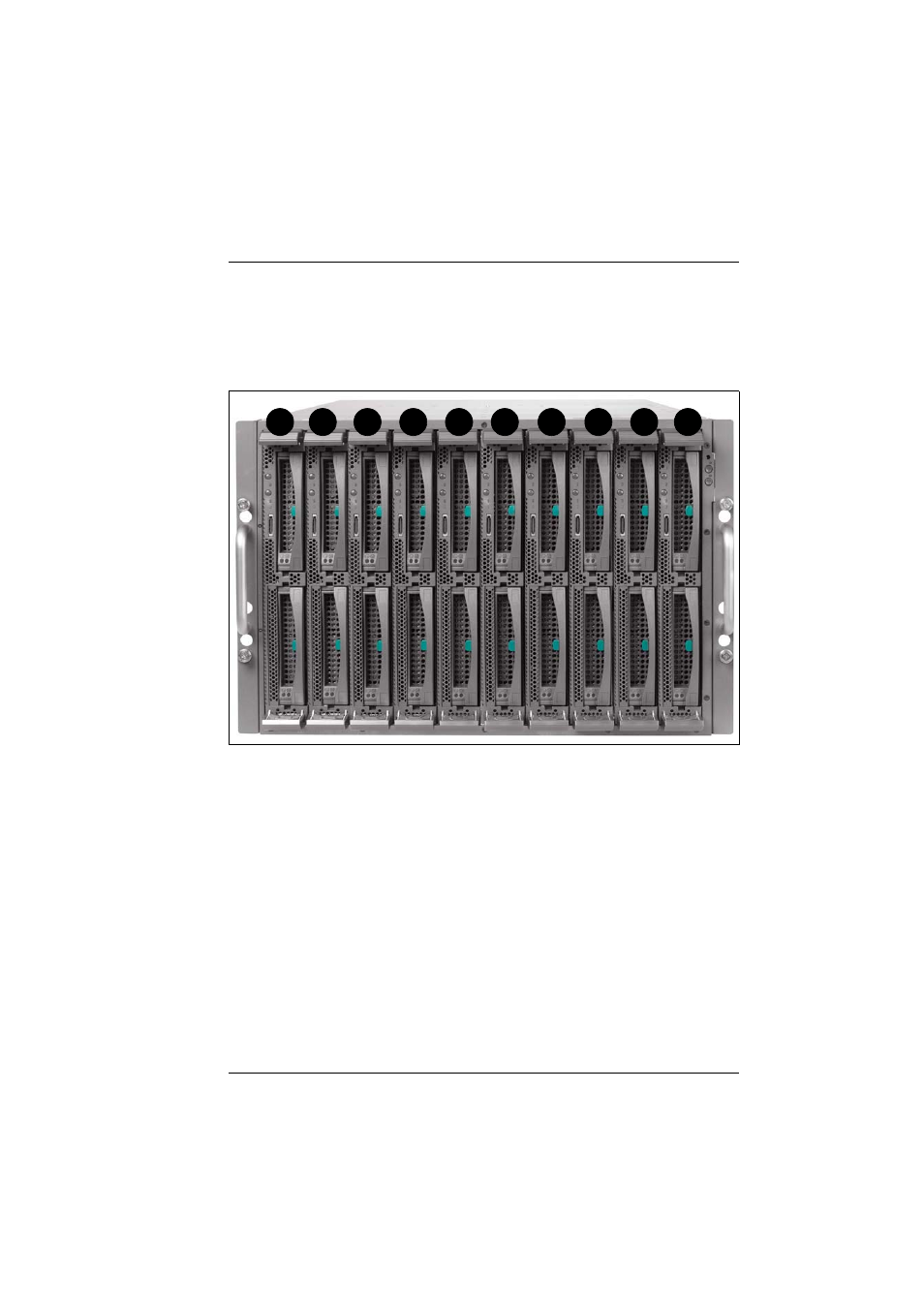

Figure 29: BX600 S3 basic unit with ten 2-way server blades
All ten slots are connected to the infrastructure modules on the back of the
BX600 S3 basic unit via the midplane of the BX600 S3 basic unit:
– Ethernet switch blades orpass-thru blades
– Fibre Channel switch blades orpass-thru blades
– Management blades
– KVM blade
– Power supply units
In a PRIMERGY BX600 S3 basic unit different models and configurations of
server blades can be operated alongside each other.
V
CAUTION!
Server blades connecting a second SCSI channel to the midplane are
not for use in the PRIMERGY BX600 S3 basic unit.
1 2 3 4 5 6 7 8 9 10
