8.10 Installing an I/O Blade
V
CAUTION!
● Read the safety information and the information on handling electro-
static-sensitive components in the
section “Components With Elec-
trostatic-Sensitive Devices” on page 25 .
● I/O blades must always be installed in slots NET1 and NET3 first (see
page 91 ).
Removing the Dummy Module
All unoccupied slots in the basic unit are fitted with dummy modules to ensure
that the electromagnetic emission properties of the system are observed and
that the system components are properly cooled.
If you wish to install an I/O blade, you must first remove the dummy module from
the corresponding slot.

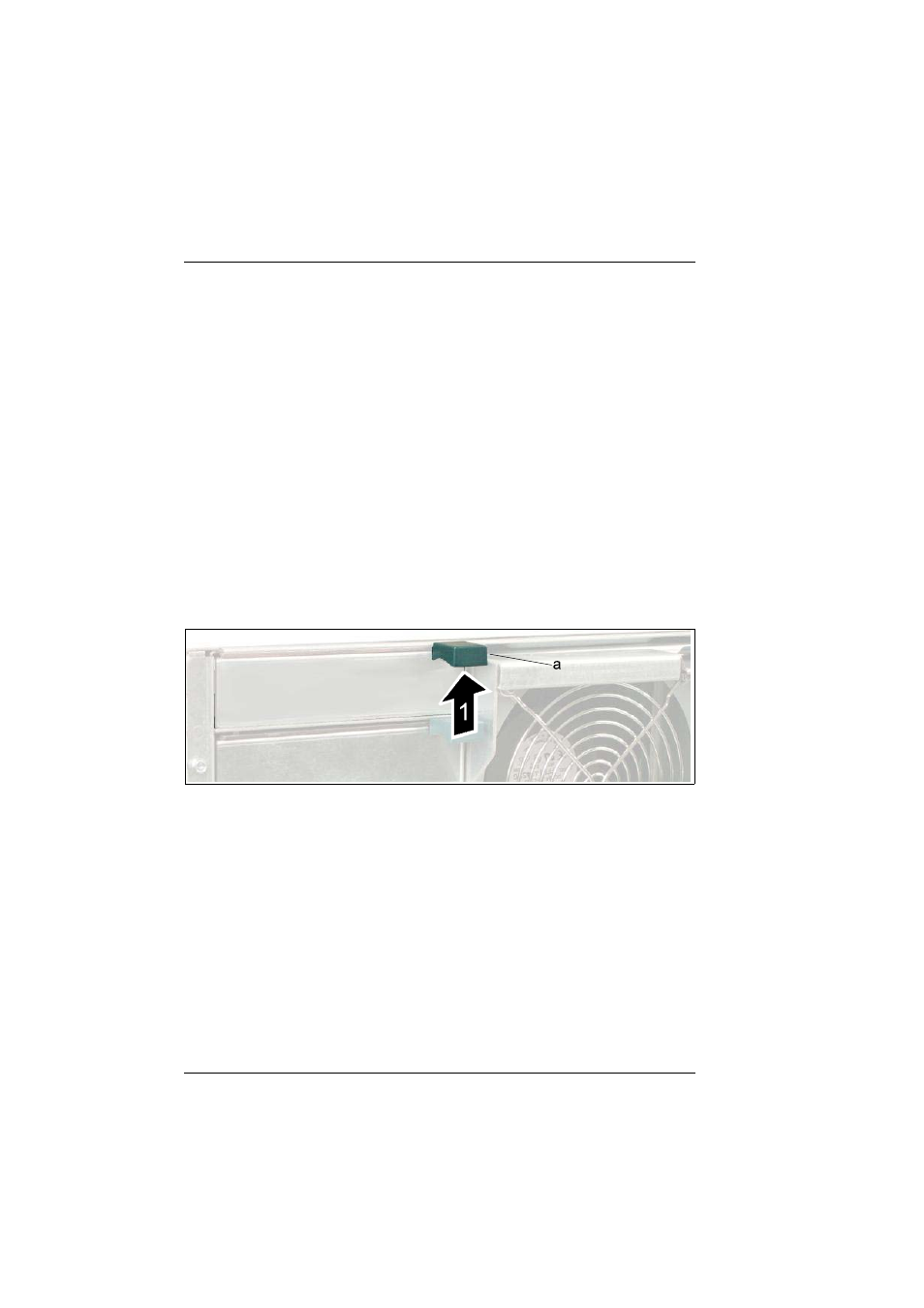

Figure 45: Unlocking the handle
Ê Press the spring (1) on the underside of the handle (a) to unlock it.
