102 Operating Manual BX600 S3
4/4 Gbit FC Switch Blade SW4016 4D Fibre Channel I/O Blades
©
c
ogn
it a
s .
G
e
s e lls
c h ft
f ü r T
e c h
ni
k -D
o k u m
e
n ta
ti on m
b
H
20
09
P
fad
:
H
:\ A
p
ri l\ P
R
IM
E
R
GY
_R
eb
rand
in
g
\v
o
n W
a lt er
\b
x 600
_s
3_
ba\
B
X
6
0 0 S
3
_ e n
\b
la
d
e -u
s.
k0
9
9.1 4/4 Gbit Fibre Channel Switch Blade
(Brocade SilkWorm 4016 4D)
For the connection between the server blades and the SAN, you can install the
4/4 Gbit Fibre Channel Switch Blade (Brocade SilkWorm 4016 4D) in the
PRIMERGY BX600 S3 basic unit. It offers a maximum of ten internal fabric
ports to the server blades and a maximum of six external fabric ports for a fast
and reliable connection to a SAN. The 4/4 Gbit Fibre Channel Switch Blade
offers transfer rates of 4 Gbit/s via the internal and external ports. A
10/100 Mbit/s RJ45 connector is available for administering the 4/4 Gbit Fibre
Channel Switch Blade via a LAN.
The operating system of the 4/4 Gbit Fibre Channel Switch Blade offers the full
functionality of
Brocade Fabric OS 5.0.4 , the joint software platform for Brocade
Fibre Channel switches. The FC switch blade is administered via the Fabric
Watch and Advanced Web Tools from Brocade.
I
The 4/4 Gbit Fibre Channel Switch Blade only supports server blades
that are fitted with a 4-Gbit Fibre Channel I/O module (PCIe daughter
card).

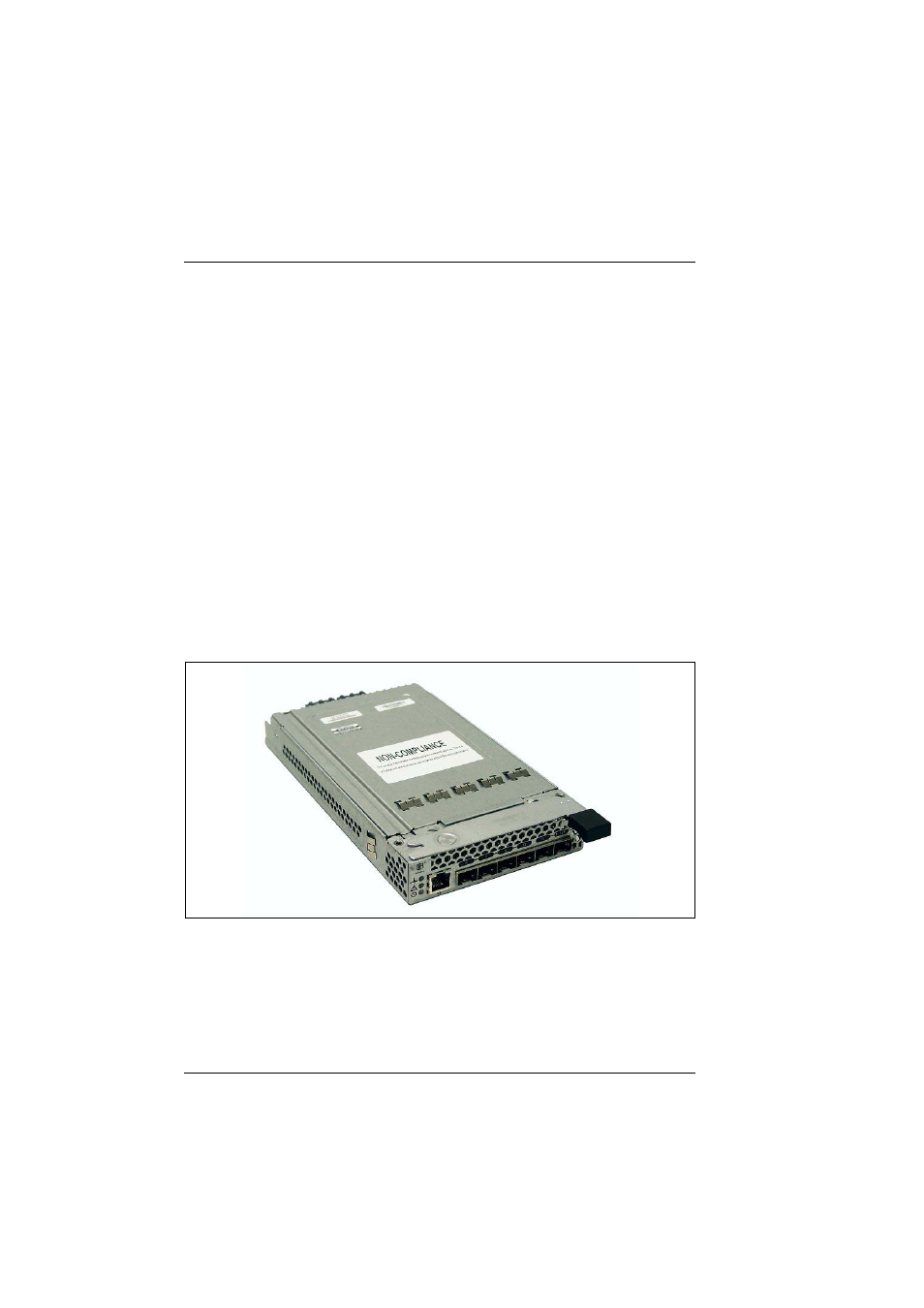

Figure 50: 4/4 Gbit Fibre Channel Switch Blade (Brocade SilkWorm 4016 4D)
I
In addition to the 16-port variant, a model with 12 dynamically assignable
ports is available (e.g. 4 external and 8 internal ports). You can upgrade
this model to a 16-port variant later.
