82 operating manual, Bx600 s3 – FUJITSU PRIMERGY BX600 S3 User Manual
Page 82
82
Operating Manual
BX600
S3
Ethernet Switch Blade (SB9) 6x1 Gbit + 2x10 Gbit
Ethernet I/O Blades
©
c
ogn
it
a
s
.
G
e
s
e
lls
c
h
ft
f
ü
r T
e
c
h
ni
k
-D
o
k
u
m
e
n
ta
ti
on m
b
H
20
09
P
fad
:
H
:\
A
p
ri
l\
P
R
IM
E
R
GY
_R
eb
rand
in
g
\v
o
n W
a
lt
er
\b
x
600
_s
3_
ba\
B
X
6
0
0
S
3
_
e
n
\b
la
d
e
-u
s.
k0
8
8.3
Gbit Ethernet LAN Switch Blade (SB9)
6x1 Gbit + 2x10 Gbit
The Gbit Ethernet LAN switch blade (SB9) 6x1 Gbit + 2x10 Gbit supports layer
2/3/4 functionality and offers the following connections:
–
10 internal 1-Gbit downlink ports to the server blades
–
6 external 1-Gbit uplink ports via RJ45 connectors
–
2 external 10-Gbit uplink ports via XFP module and corresponding fibre optic
cable and CX4 connector and corresponding copper cable.
Operating and Indicator Elements

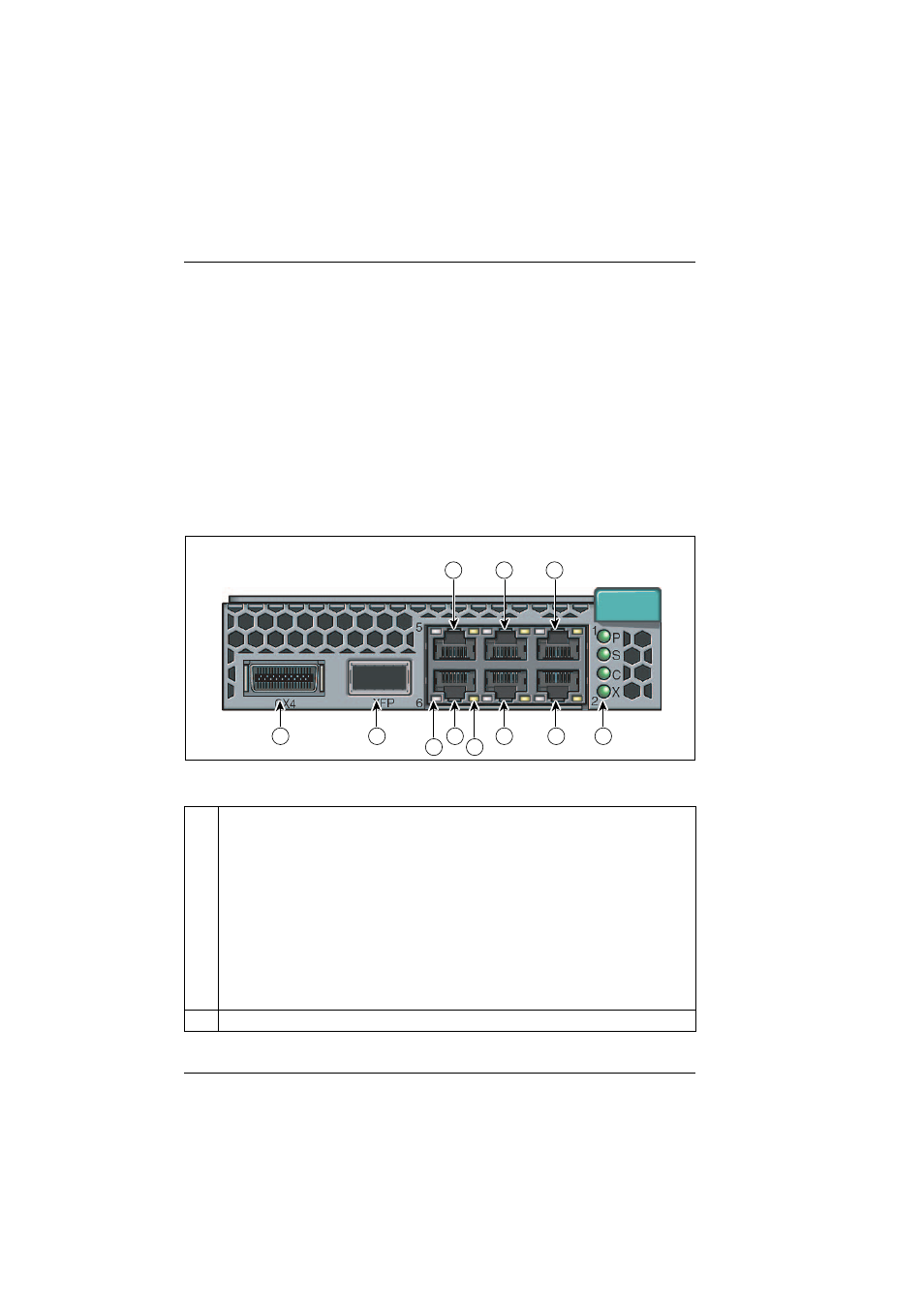

Figure 35: Gbit Ethernet LAN switch blade (SB9) 6x1 Gbit + 2x10 Gbit
1-6
1 Gbit uplink LAN connectors (with two integrated LAN status LEDs each)
LED A:
LAN active indicator (bicolor LED)
Glows amber:
Port link at 1 Gbit/s
Glows green:
Port link at 100 Mbit/s
Dark:
Port link at 10 Mbit/s
LED B:
LAN link indicator (yellow LED)
Glows yellow:
Network link
Glows yellow:
Network activity
Dark:
No network link or port disabled
7
10 Gbit XFP connector
1
3
5
2
9
4
6
A
B
7
8
