BX600 S3 Operating Manual 131
Power Supply Concept Power Supply Units
12.2 Power Supply Units
The power supply units (PSU) are directly accessible at the rear of the system
(
figure 69 on page 125 ):
The power supply unit can communicate with the system service processor via
an internal management interface (IIC bus). The PSU part number, FRU data,
barcode number, manufacturer ID, and fault data are stored in a VPD EEPROM
module and can be recalled via the IIC bus. The PSU status can be displayed
in the server management software
ServerView .
Each power supply unit has a large fan on the front (A) and two smaller fans on
the rear (B) that provide air cooling for the system (see
figure 75 below).

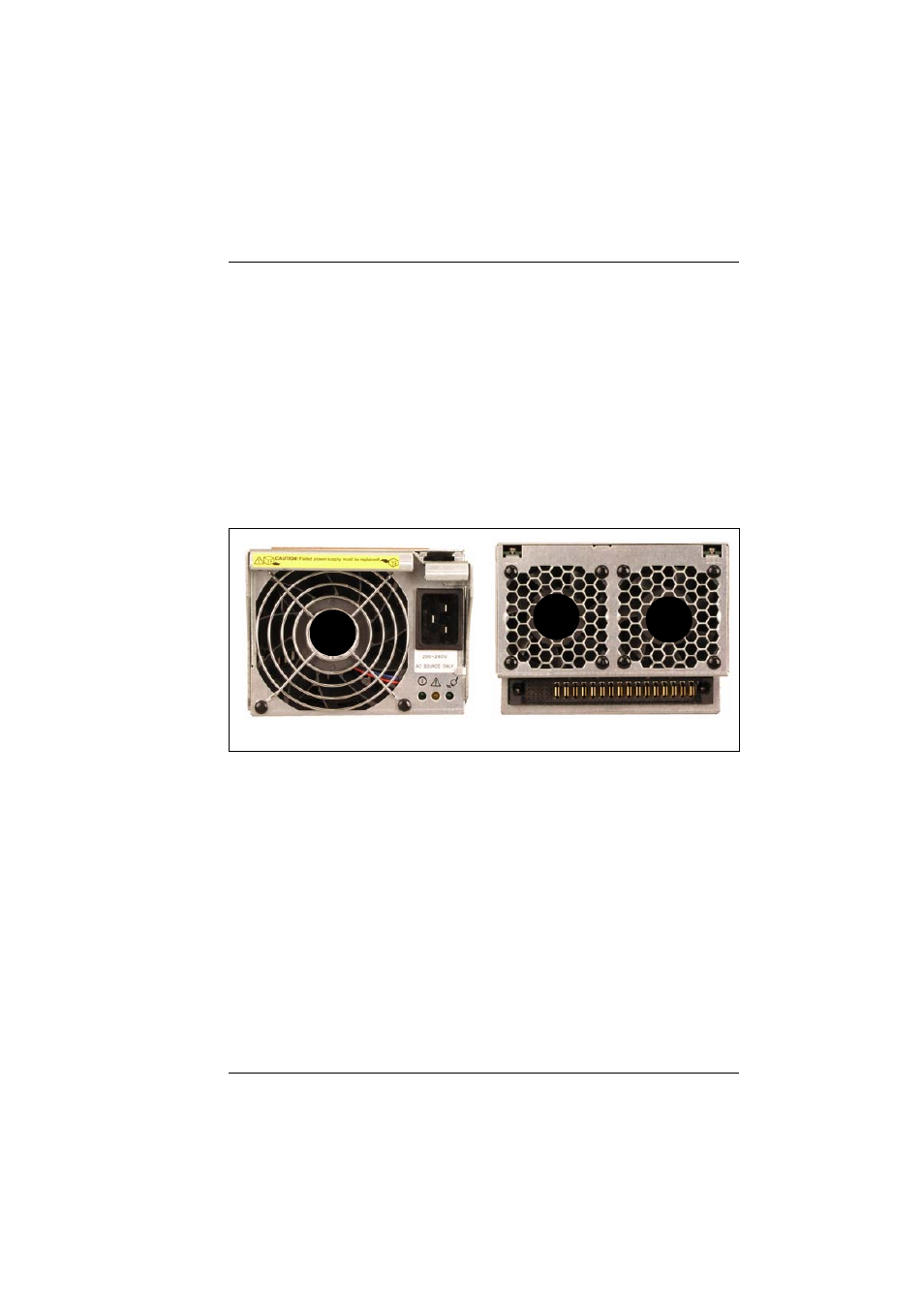

Figure 75: PSU: Fans
front rear
A
B B
