Removing an SFP Module

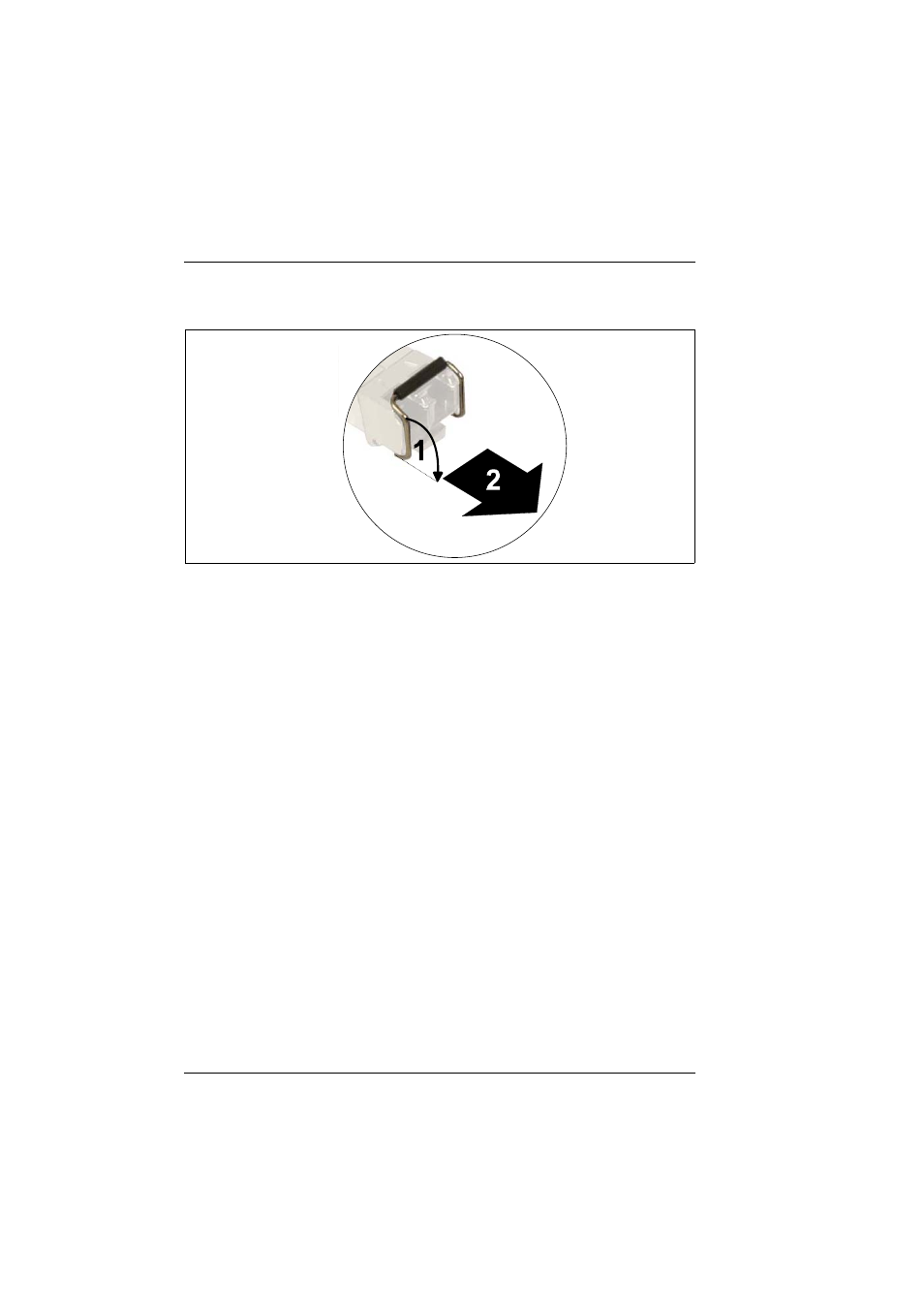

Figure 56: Removing an SFP module
Ê Swivel the locking clip in the direction of the arrow (1) to disengage the
locking mechanism of the SFP module and pull it out of the slot (2).
