Hale 5.0 FoamLogix - Manual (Page 74)

ΙΙ
-44
ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
II
: Installation
HALE FOAMLOGIX SYSTEM WITH MDT
ΙΙ
HALE FOAMLOGIX SYSTEM WITH ADT
FLOWSENSOR
CABLE
CONTROL
CABLE
LOW TANK LEVEL SENSORS
USE MINIMUM 16 AWG TYPE
SXL OR GXL (SAE J1128)
WIRE
CONTROL
UNIT
ADT PANEL
PLACARD LIGHT
CONNECTION
FLOWSENSOR
CABLE
CONTROL
CABLE
LOW TANK LEVEL SENSORS
USE MINIMUM 16 AWG TYPE
SXL OR GXL (SAE J1128) WIRE
CONTROL
UNIT
MDT II WIRING
HARNESS
OPTIONAL
MDT II WIRING
HARNESS EXTENSION
MDT II
SELECTOR

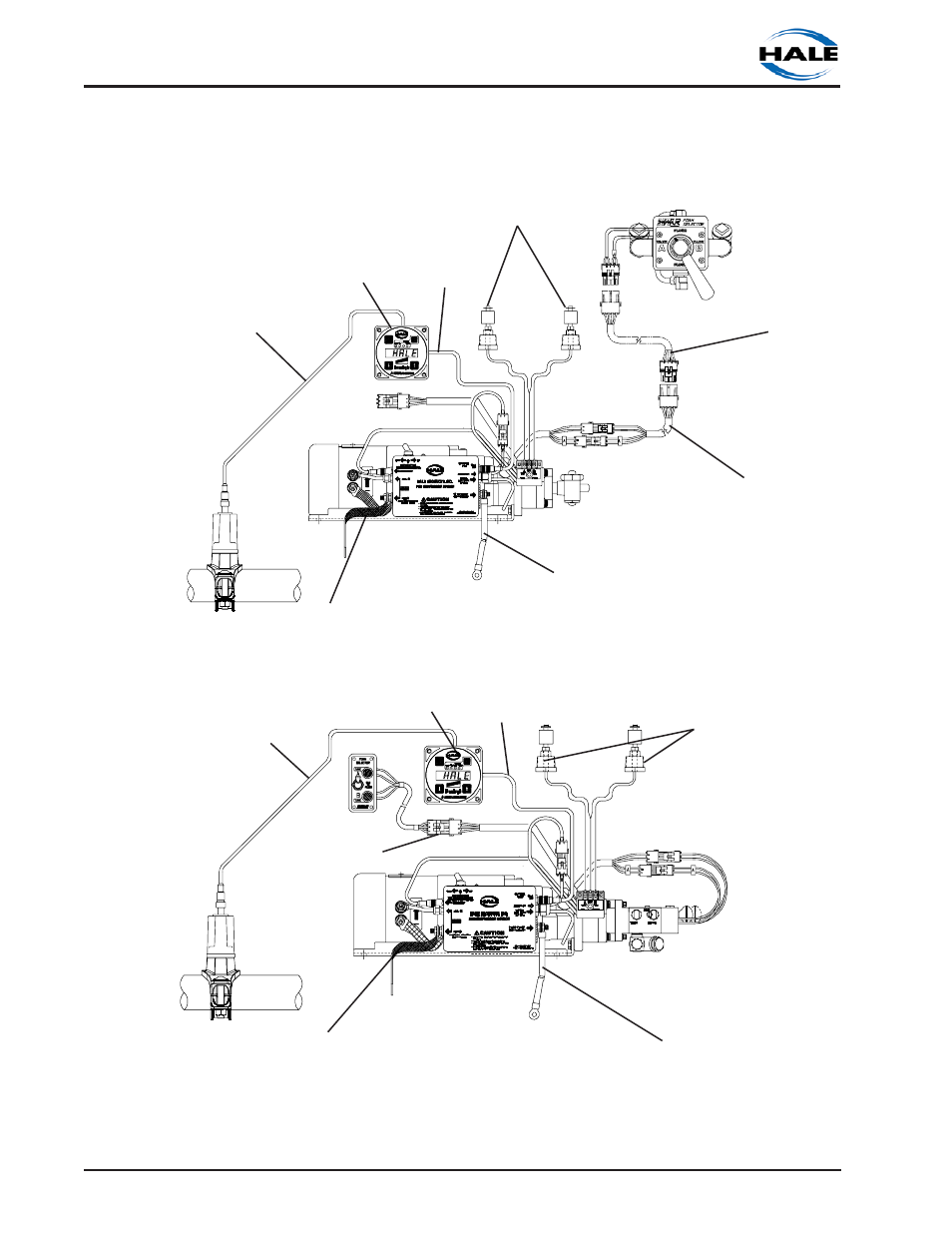

HALE FOAMLOGIX SYSTEM ELECTRICAL DIAGRAMS
(Continued)
GROUND STRAP
USE 1-¼ INCH WIDE FLAT BRAIDED GROUND STRAP
MAXIMUM 18 INCHES (457 mm) LONG
PRIMARY POWER SUPPLY CABLE
USE MINIMUM 4 AWG TYPE SGX (SAE J1127)
BATTERY CABLE FOR CABLE LENGTH UP TO 6 FEET.
FOR CABLE LENGTH OVER 6 FEET REFER TO TABLE
2-2 FOR PROPER GAUGE WIRE.
GROUND STRAP
USE 1-¼ INCH WIDE FLAT BRAIDED GROUND STRAP
MAXIMUM 18 INCHES (457 mm) LONG
PRIMARY POWER SUPPLY CABLE
USE MINIMUM 4 AWG TYPE SGX (SAE J1127)
BATTERY CABLE FOR CABLE LENGTH UP TO 6 FEET.
FOR CABLE LENGTH OVER 6 FEET REFER TO TABLE
2-2 FOR PROPER GAUGE WIRE.
