ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
II
: Installation
the bracket to the apparatus. Secure
the bracket and strainer/valve assembly
to the apparatus.
3. Select the appropriate fittings from the
bag attached to the strainer assembly.
Two of each fitting are included with the
strainer assembly.
For Class A foam concentrate use the
supplied 1-1/4 inch NPT x ¾ inch hose
fittings in each end of the strainer/valve
assembly.
For most Class B foam concentrates use
the 1-1/4 inch NPT x 1 inch hose fittings.
When using higher viscosity Class B ATC
concentrates use the 1-1/4 inch NPT x 1-
1/4 inch hose fittings
Before assembly coat all fitting threads
with Permatex #80724 (or equal) plastic
pipe thread sealant. Install the fittings
into the strainer/valve assembly ends
and tighten securely.
4. Install the clear plastic hose from the
foam tank outlet to the inlet of the
strainer/valve assembly. The inlet of the
strainer/valve assembly is on the valve
end. Wetting the ends of the hose and
fittings will make the installation on the
hose fittings easier.
CAUTION: Make sure the foam tank and
foam concentrate suction hoses are
clean before making final connection to
foam pump. If necessary flush tank and
hoses prior to making connection.
5. Install the clear plastic hose from the in-
line strainer/valve assembly outlet to the

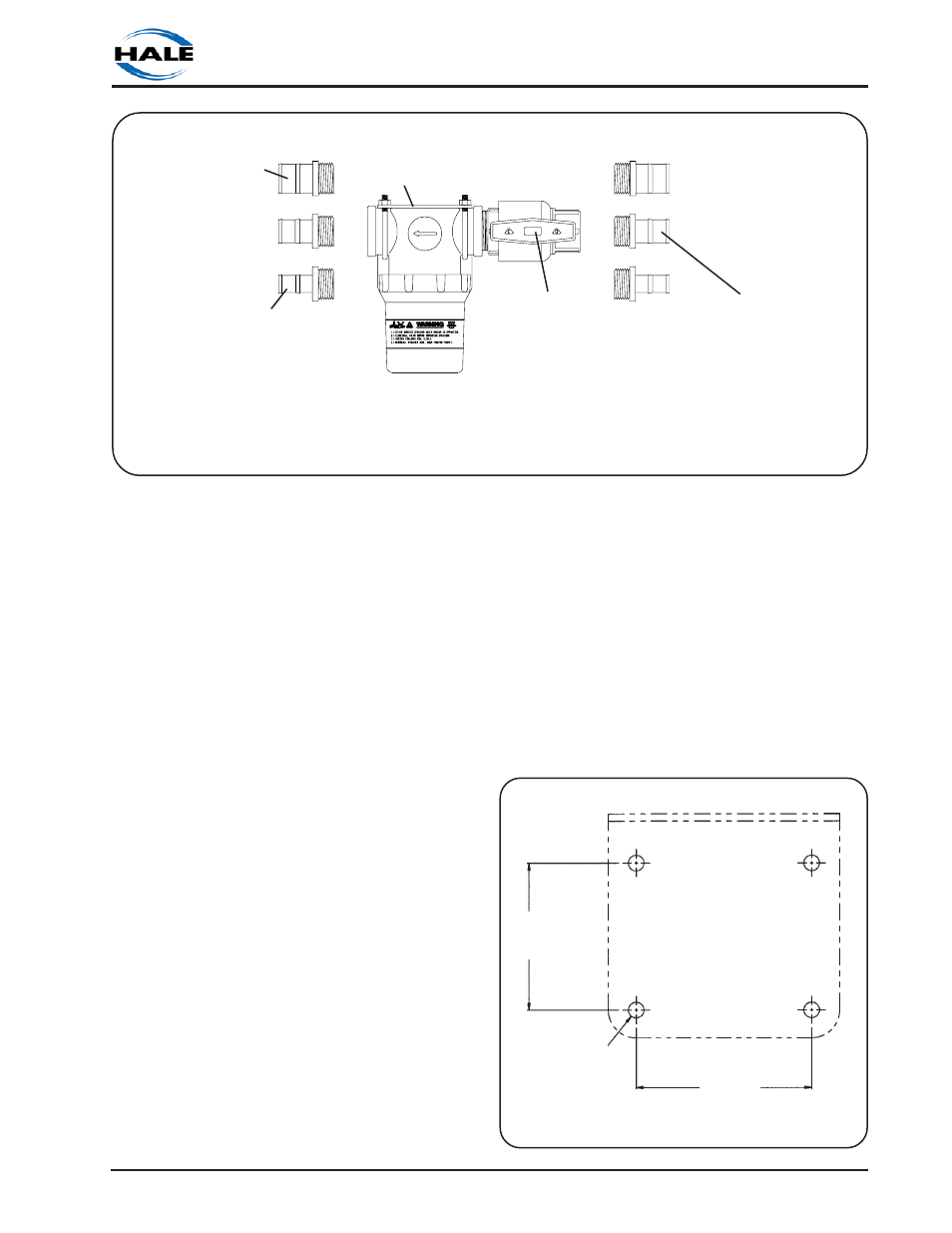

Figure 2-13. In-Line Strainer Mounting
Bracket Hole Layout Dimensions
STRAINER BRACKET OUTLINE
SHOWN FOR CLARITY
3-1/8 IN.
(79 MM)
2-21/32 IN.
(67 MM)
4 HOLES (#7 DRILL
IF TAPPED ¼-20
UNC or 9/32 IN (7
MM) DIAMETER
Figure 2-12. In-Line Strainer/Valve Installation
1-1/4 INCH NPT X 3/4 INCH
HOSE BARB
(Use on each end for Class
A foam concentrates)
1-1/4 INCH NPT X 1-1/4
INCH HOSE BARB
(Use on each end for Class
B foam concentrates)
2 INCHES (51 mm) MINIMUM
CLEARANCE ABOVE FOR
VALVE OPERATION
STRAINER SERVICE
VALVE
(Shown in open
position. Rotate 90 o
clockwise to close)
STRAINER
MOUNTING
BRACKET
5 INCHES (127 mm) MINIMUM
CLEARANCE BELOW FOR
ELEMENT MAINTENANCE
FOAM
CONCENTRATE
INLET
FOAM
CONCENTRATE
OUTLET
1-1/4 INCH NPT X 1 INCH
HOSE BARB
(Use on each end for
Class B foam
concentrates)
