Ι
-15
ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
I
: Description

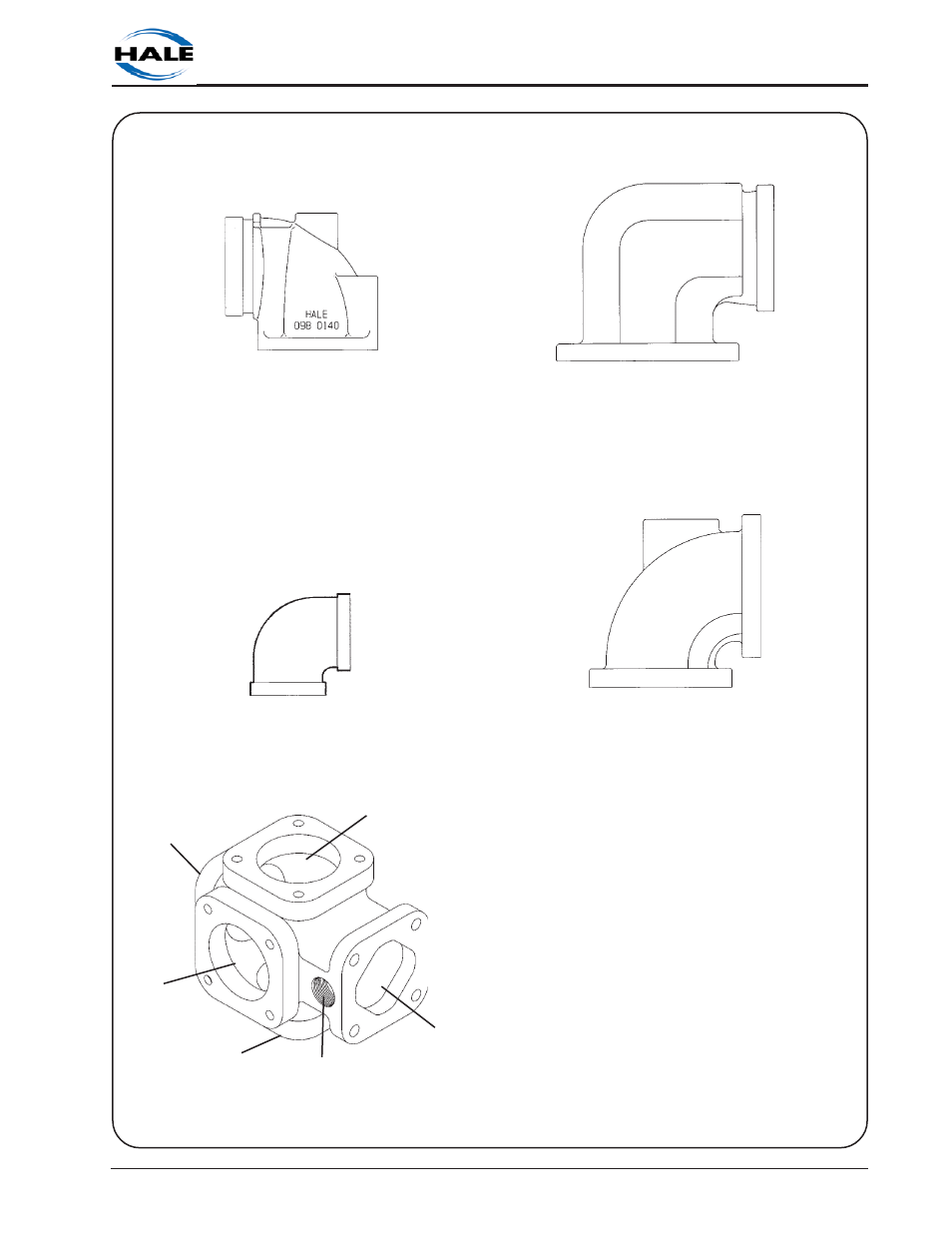

Close Fit Flanged Elbow
(P/N 098-0140-00-0)
115 flange inlet with 3 inch Victaulic outlet.
Close Fit Flanged Elbow
(P/N 098-0190-00-0)
2433D flange inlet with 3 inch female NPT
and 4 inch Victaulic outlet.
Close Fit Flanged Elbow
(P/N 098-0050-00-0)
115 flange inlet with 2-½ inch female NPT outlet.
Close Fit Flanged Elbow
(P/N 098-0020-00-0)
115 flange inlet with 115 flange outlet.
Mini Manifold
(P/N 178-0320-02-0)
Elbows and Mini Manifold
INLET
OUTLET
FOAM
INJECTION
OUTLET
OUTLET
OUTLET
