ROTARY GEAR PUMP
ELECTRONIC FOAM PROPORTIONING SYSTEM
Section
II
: Installation

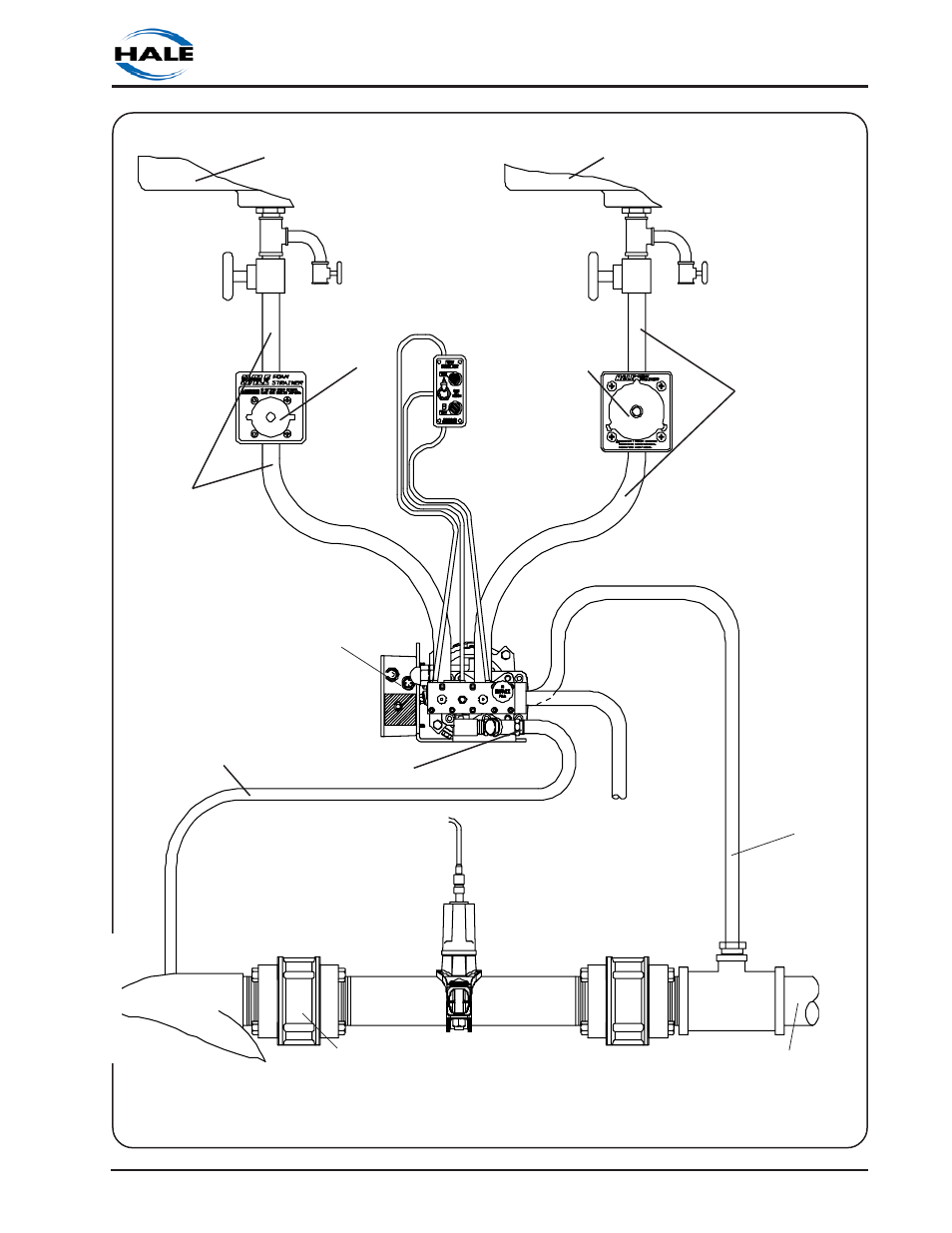

Hale FoamLogix System Plumbing Diagram with Dual Foam Concentrate Tanks, ADT and
FS Series Strainer Assemblies
WATERWAY
CHECK
VALVE
WATERWAY
CHECK
VALVE
FIRE
PUMP
FOAM SOLUTION
DISCHARGE(S)
FOAM
TANK B
FOAM
TANK A
FOAM TANK
SHUTOFF
VALVE
FOAM TANK
DRAIN
VALVE
FOAM TANK
DRAIN
VALVE
FOAM TANK
SHUTOFF
VALVE
FOAM PUMP AND
MOTOR
ASSEMBLY
CHECK VALVE
INJECTOR
FITTING
FOAM INJECTION HOSE
½ INCH (12 MM) INSIDE
DIAMETER RATED FOR
500 PSI (34 BAR) WITH ½
INCH NPT FITTINGS
FOAM SUCTION HOSE
1 INCH (25 MM) INSIDE
DIAMETER CLEAR
RATED AT 23 INCHES
(584 mm) Hg VACUUM
and 50 PSI (3 BAR)
FLUSH WATER SUPPLY HOSE
3 /
8
OR ½ INCH (10 or 12 MM)
OUTSIDE DIAMETER RATED
AT 500 PSI (34 BAR)
½ INCH NPT
FLUSH HOSE
CONNECTION
FOAM SUCTION HOSE
¾ INCH (19 MM) INSIDE
DIAMETER CLEAR
RATED AT 23 INCHES
(584 mm) Hg VACUUM
and 50 PSI (3 BAR)
¾ INCH NPT x ¾
INCH HOSE
FITTINGS FOR
FS15 STRAINER
1 INCH NPT x
¾ INCH HOSE
FITTINGS FOR
FS25
STRAINER
BYPASS HOSE
AIR BRAKE TUBING ½
INCH INSIDE DIAMETER
HALE
FLOWSENSOR
PADDLE WHEEL
MOUNTED IN
SADDLECLAMP
